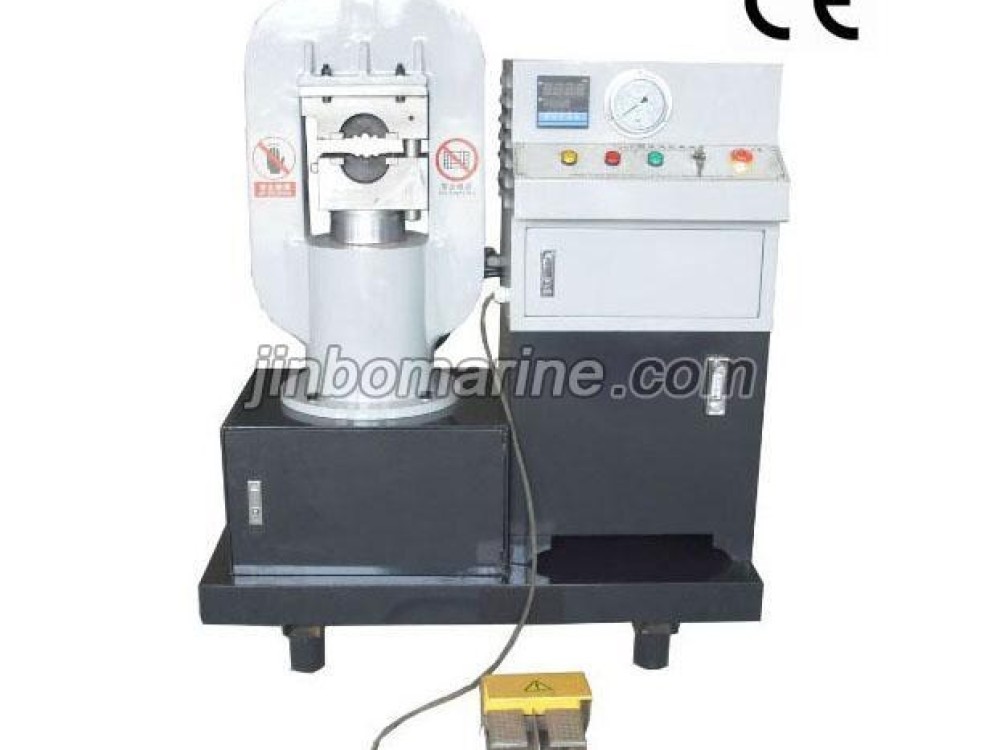

100Tons Steel Wire Rope Press Machine
Wire Rope Press Machines are used to make pressed wire rope sling. The body of swagers are manufactured from one single block construction that ensure strength, long service life and a minim...
Loading product images...
100Tons Steel Wire Rope Press Machine
PDF Datasheet
We can supply according to your requirement.
China 100Tons Steel Wire Rope Press Machine:
Wire Rope Press Machines are used to make pressed wire rope sling. The body of swagers are manufactured from one single block construction that ensure strength, long service life and a minimum of maintenance. All swagers are thoroughly test run and are supplied with a full tank of oil.
- It uses a mechanical and electrical design, to switch to a different mold, you can suppress the different specifications of wire rope, easy to operate and safe.
- Dual control for hydraulic system, the overflow valve, magnetic contact on the pressure gauge can be accurately controlled.
- Electric control parts of the low-voltage control, an increase of operating system security.
- Pull the rope to suppress large, beautiful, fast, and a wire rope press-fit just a few minutes to complete, significantly reduced the labor intensity and improve the work efficiency.
Technical Specification
| Max press power (KN) | 1000 |
| Max wire rope diameter in one pressing (mm) | Φ13 |
| Max wire rope diameter in multi-pressing (mm) | Φ15 |
| Power (KW) | 3 |
| Max working pressure (Mpa) | 28Mpa |
| Max piston movement (mm) | 78 |
| The up speed of piston(mm/sec) | 8 |
| The down speed of piston(mm/sec) | 10 |
| Total length (mm) | 1100 |
| Total width (mm) | 550 |
| Total height (mm) | 1300 |
| Net weight (kg) | 600 |
