500Tons Steel Wire Rope Press Machine
500Ton Steel Wire Rope Press Machine is Hydraulic Wire Rope Swage Machine, used to make pressed wire rope sling, with feature of compact form, good-looking appearance and easy operation. Wid...
Loading product images...

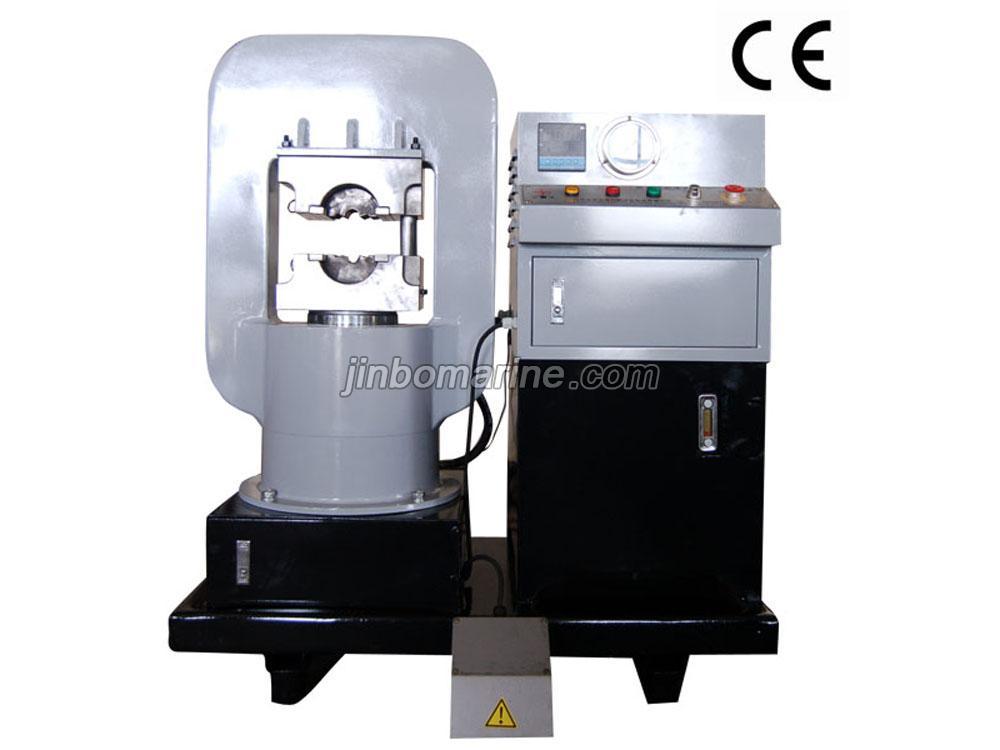

500Tons Steel Wire Rope Press Machine
PDF Datasheet
We can supply according to your requirement.
China 500Tons Steel Wire Rope Press Machine:
500Ton Steel Wire Rope Press Machine is Hydraulic Wire Rope Swage Machine, used to make pressed wire rope sling, with feature of compact form, good-looking appearance and easy operation. Widely used at mine, metallurgy, wharf, railway, electrics and other filed.
- It uses a mechanical and electrical design, to switch to a different mold, you can suppress the different specifications of wire rope, easy to operate and safe.
- Dual control for hydraulic system, the overflow valve, magnetic contact on the pressure gauge can be accurately controlled.
- Electric control parts of the low-voltage control, an increase of operating system security.
- Pull the rope to suppress large, beautiful, fast, and a wire rope press-fit just a few minutes to complete, significantly reduced the labor intensity and improve the work efficiency.
Technical Specification
| Max press power (KN) | 5000 |
| Max wire rope diameter in one pressing (mm) | Φ32 |
| Max wire rope diameter in multi-pressing (mm) | Φ42 |
| Power (KW) | 7.5 |
| Max working pressure (Mpa) | 56Mpa |
| Max piston movement (mm) | 120 |
| The up speed of piston(mm/sec) | 4.5 |
| The down speed of piston(mm/sec) | 8 |
| Total length (mm) | 1550 |
| Total width (mm) | 650 |
| Total height (mm) | 1600 |
| Net weight (kg) | 2500 |
