100Ton Detachable Chain Chaser
- Category:Chain Chaser
- Delivery Time:30 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

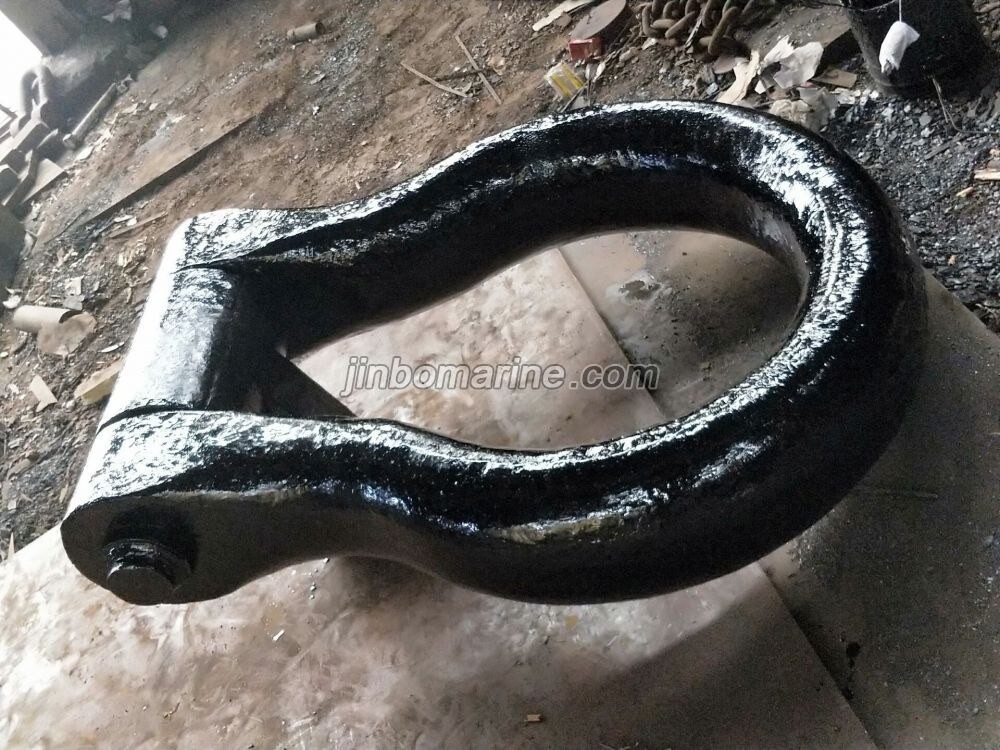

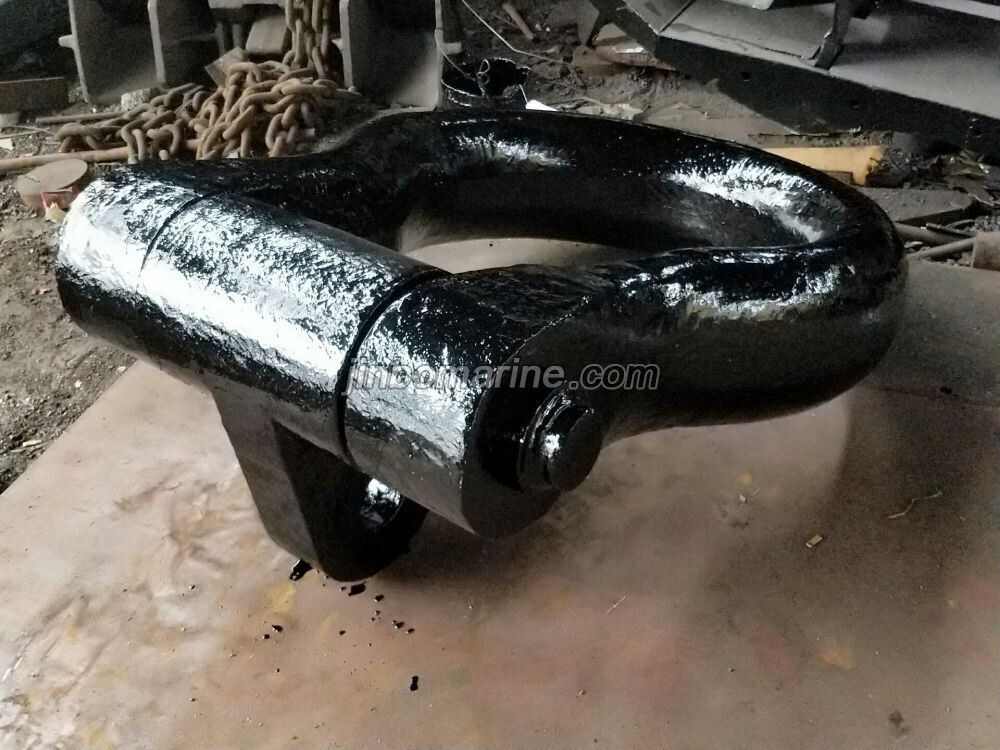

China 100Ton Detachable Chain Chaser:
Detachable Chain Chaser was developed in 1982 and used for a chain chaser which could be assembled to the ancho chain of vessel in service without to break and re-make the anchor chain. Single bolt enable quickly assemble and removal of anchor chain.
Material: Casting Steel
SWL:100Ton

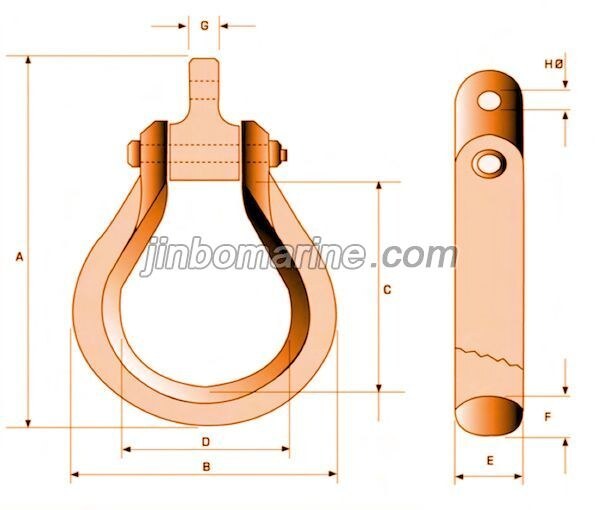

100Ton Detachable Chain Chaser Specification
|
Type |
SWL | Proof Load | A | B | C | D | E | F | G | H | Weight |
| JB201 | 100T | 250T | 1886 | 1143 | 1080 | 762 | 305 | 191 | 124 | 86 | 1245KG |
| JB202 | 130T | 250T | 1931 | 1168 | 1067 | 762 | 381 | 203 | 130 | 99 | 1645KG |
