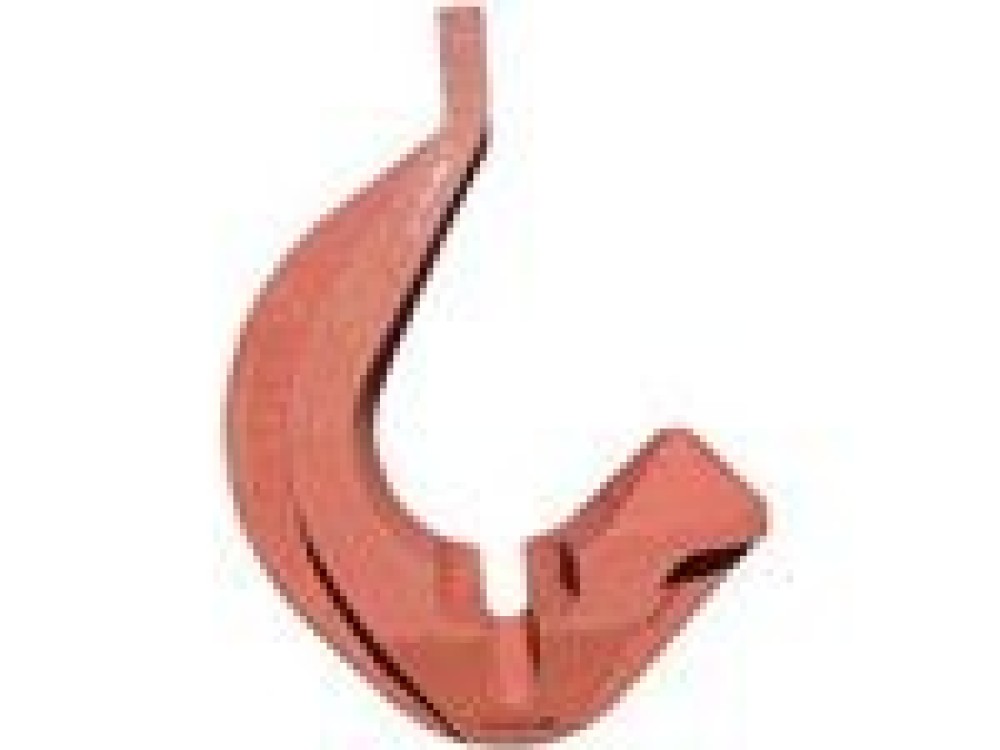

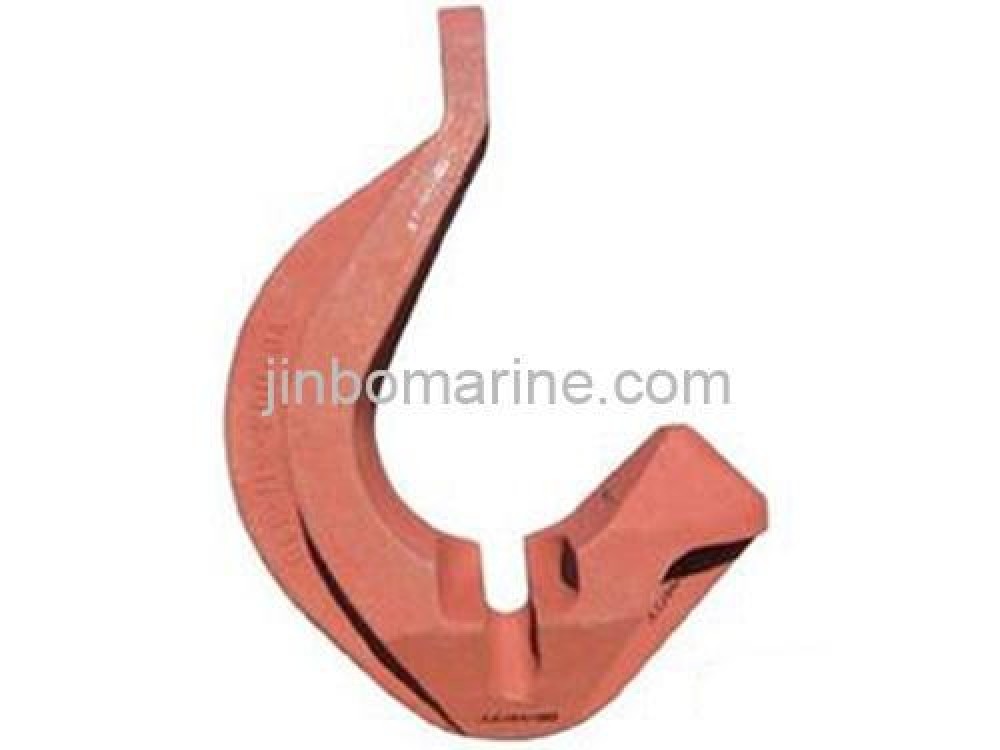

J Lock Chain Chaser
It is for use with deep-penetration twin shank anchors. The J-shape permits catching the anchor chain after the anchor has been installed. This means that this chaser can be used to as...
PDF Datasheet
China J Lock Chain Chaser:
It is for use with deep-penetration twin shank anchors.
The J-shape permits catching the anchor chain after the anchor has been installed. This means that this chaser can be used to assist in unforeseen circumstances.
The well-balanced and 'guiding' design of the chaser enables catching the chain when the chaser approaches a mooring at the point where the catenary angle is as high as 45 degrees.
Feature:
1.Excellent quality and competitive price .
2.Durable, long lifetime.
3. Standard or customerized.
Remark:
It is attached by a work wire to the winch of the anchor handling tug and at approximately 1/3 of the water depth.
After "snagging" the anchor chain, is towed into contact with the anchor shank and flukes enabling the tug to lift and board the anchor .
It will handle anchors to 30 tones in weight and stud link chain up to 4-1/2 inches diameter.

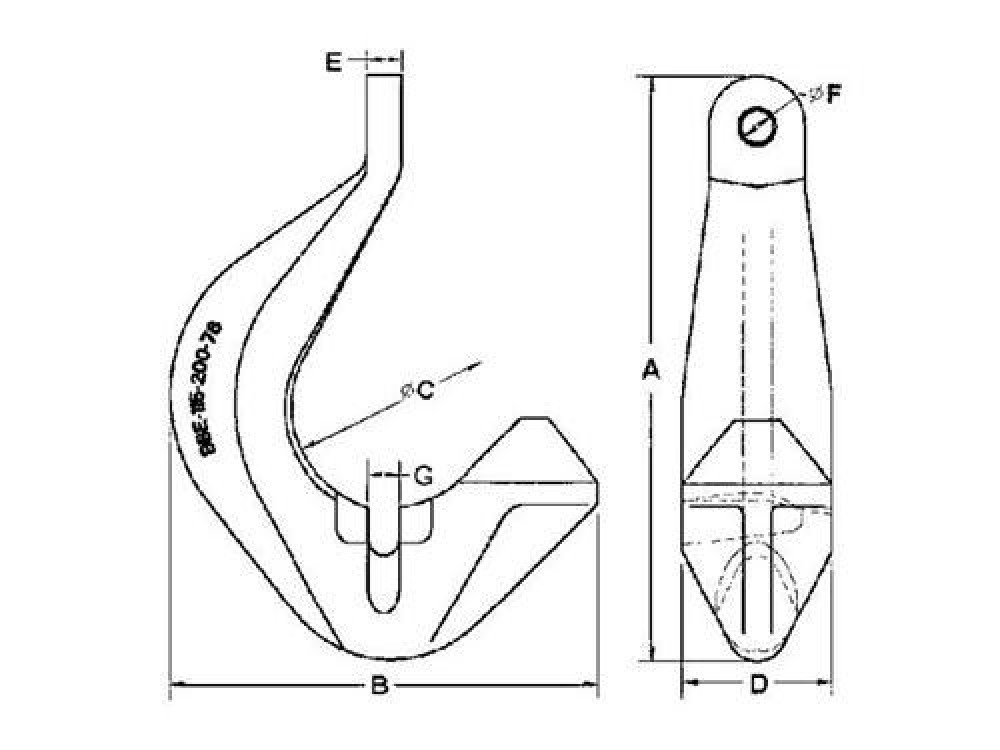

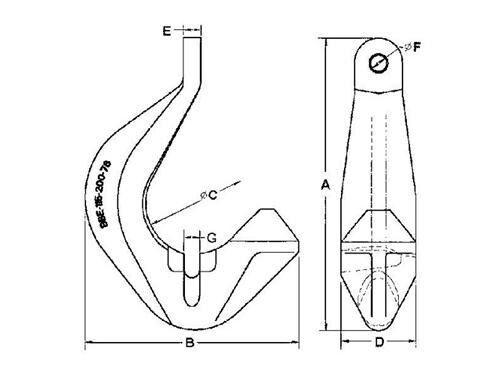

| J Lock Chain Chaser | ||||||||||
| Nominal Size(mm) | Pull Load (Ton) | SWL(Ton) | Dimensions (mm) | Weight(kgs) | ||||||
| A | B | C | D | E | F | G | ||||
| 76 | 300 | 200 | 2083 | 1520 | 711 | 533 | 124 | 115 | 110 | 2600 |
| 84 | 300 | 200 | 2083 | 1520 | 711 | 533 | 124 | 115 | 130 | 2600 |
| 102 | 500 | 300 | 2480 | 2050 | 711 | 800 | 180 | 150 | 140 | 4200 |
| 117-124 | 600 | 450 | 2730 | 2050 | 711 | 1000 | 240 | 185 | 150 | 7650 |
