12LPM Low Voltage Submersible Pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

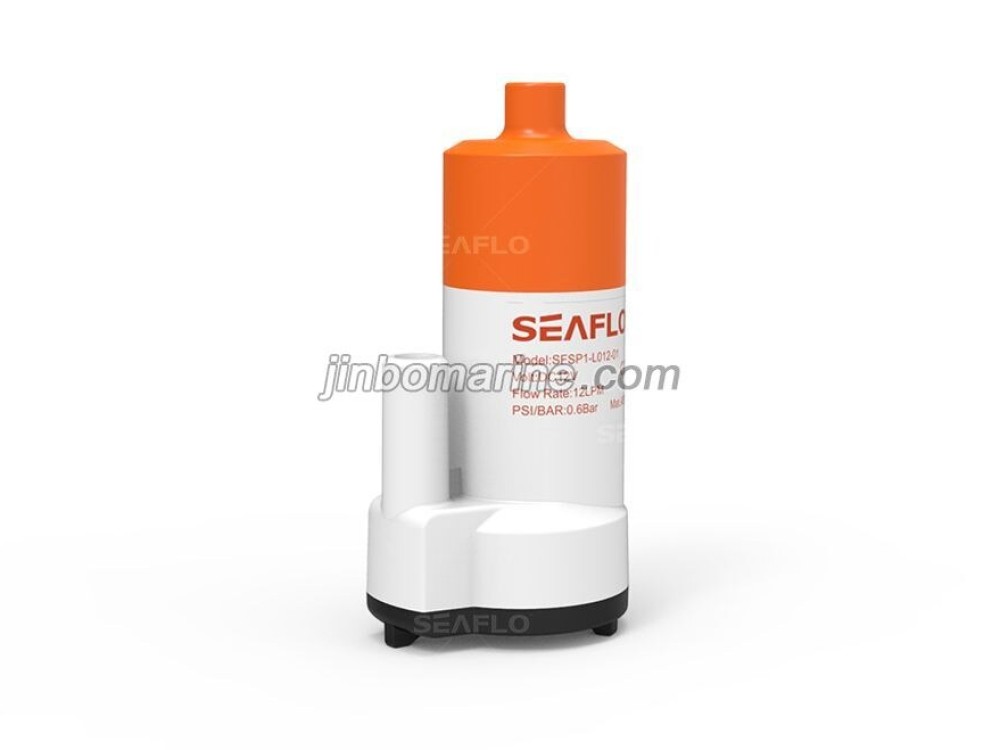

12LPM Low Voltage Submersible Pump

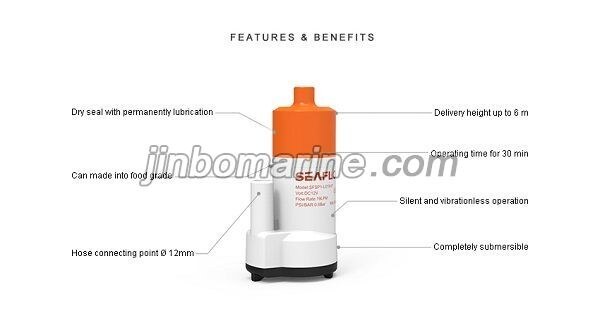

These pumps are true powerhouses and can also be used when you are on the move. They can offer 30 mins continous operating when connected to a suitable power unit, a car battery or a solar power system. This product use food grade material with wide range of application. Silent, vibration-free operation, dry sealed and permanently lubricated, small size, light weight, easy to install and carry.

STANDARD PUMP CONFIGURATIONS

Model FlowRate Voltage Max Draw BAR Head Wire Lead Outlet Dia N.W. / G.W.
SFSP1-L012-01 12LPM 12V 2.0A 0.6bar 20' (6m) 3' (1m) 1/2" 0.16/0.18 kg

PERFORMANCE

Voltage(V)
Current(A)
Flow
Head(M)
GPM

LPM

12

2.0

3.2

12.0

1

12

1.9

2.8

10.5

2

12

1.7

2.5

9.3

3
