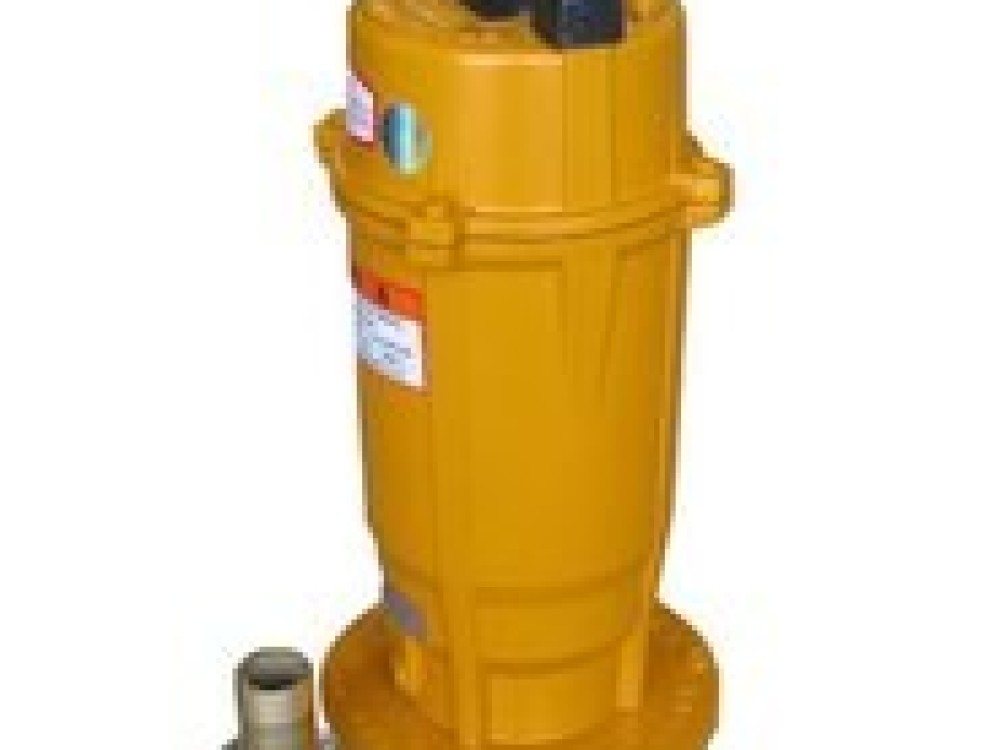

QDX/QX Stainless Steel Submersible SewagePump
QDX/QX Stainless Steel Submersible Pump Application Family water supply, seawater, saltwater, chemical industry, food etc. Features Sanitary, environment-friendly, s...
QDX/QX Stainless Steel Submersible SewagePump
PDF Datasheet
We can supply according to your requirement.
QDX/QX Stainless Steel Submersible Pump
Application
Family water supply, seawater, saltwater, chemical industry, food etc.
Features
Sanitary, environment-friendly, small size, beautiful appearance, durable, pump body and wetted parts are made of stainless steel, such as 304,316.
Model
QDX1.5-17-0.37SF
QD: single phase submersible pump (three phase without “D”)
X: Bottom Suction (Top suction without “X”)
1.5: Rated capacity 1.5m3/h
17: Rated head 17m
0.37: Power 0.37kw
S: Stainless steel
F: Float switch
| SS | Ordinary water | Mineral water | Neutral | Acidic | Alkali | Seawater | Saltwater | Implication |
| SS201 | A | A | B | NO | NO | NO | NO | A:Achieve B: Suit |
| SS304 | A | A | A | A | B | B | A | |
| SS316 | A | A | A | A | A | A | A |
Specification
| Model | Capacity (m3/h) | Head (m) | Power (KW) | Voltage (V) | Outlet Diameter(mm) |
| QX1.5-17-0.37S | 1.5 | 17 | 0.37 | 220/380 | 25 |
| QX3-18-0.55S | 3 | 18 | 0.55 | 220/380 | 25 |
| QX10-12-0.55S | 10 | 12 | 0.55 | 220/380 | 50 |
| QX3-25-0.75S | 3 | 25 | 0.75 | 220/380 | 25 |
| QX10-16-0.75S | 10 | 16 | 0.75 | 220/380 | 50 |
| QX30-7-1.1S | 30 | 7 | 1.1 | 220/380 | 80 |
| QX40-6-1.5S | 40 | 6 | 1.5 | 220/380 | 80 |
| QX10-34-2.2S | 10 | 34 | 2.2 | 380 | 50 |
| QX10-44-3S | 10 | 44 | 3 | 380 | 50 |
| QX10-56-4S | 10 | 56 | 4 | 380 | 50 |
