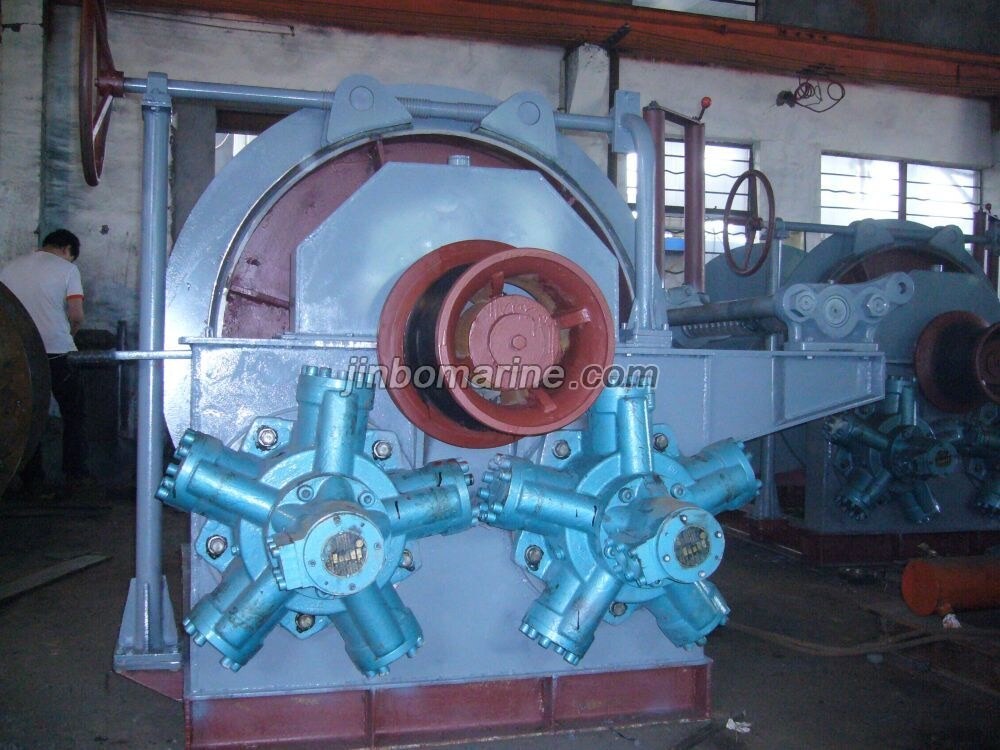

150kn Hydraulic Trawl Winch 1

150kn Hydraulic Trawl Winch

Category: Marine Winch
Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
FOB Price: Get Latest Price Now
Warranty: 12 Months unless specified otherwise
Place of Origin: China
Request a Quote PDF Datasheet

We can supply according to your requirement.

150kn Hydraulic Trawl Winch

Technical parameter

Pulling force: 150kn

Support load: 450kn

Nominal Speed: 9m/min

Rope diameter: 32mm

Drum Capacity: 250m

Motor power: 55kw

Speed: 1470 rpm

Voltage: 380v/50hz

Hydraulic displacement: 28616 ml/r

Pressure: 18 mpa

Flow rate of system: 141 L/min
