Marine Air Driven Remote Control Winch
General description

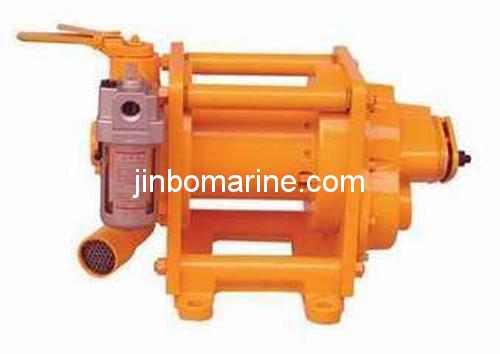

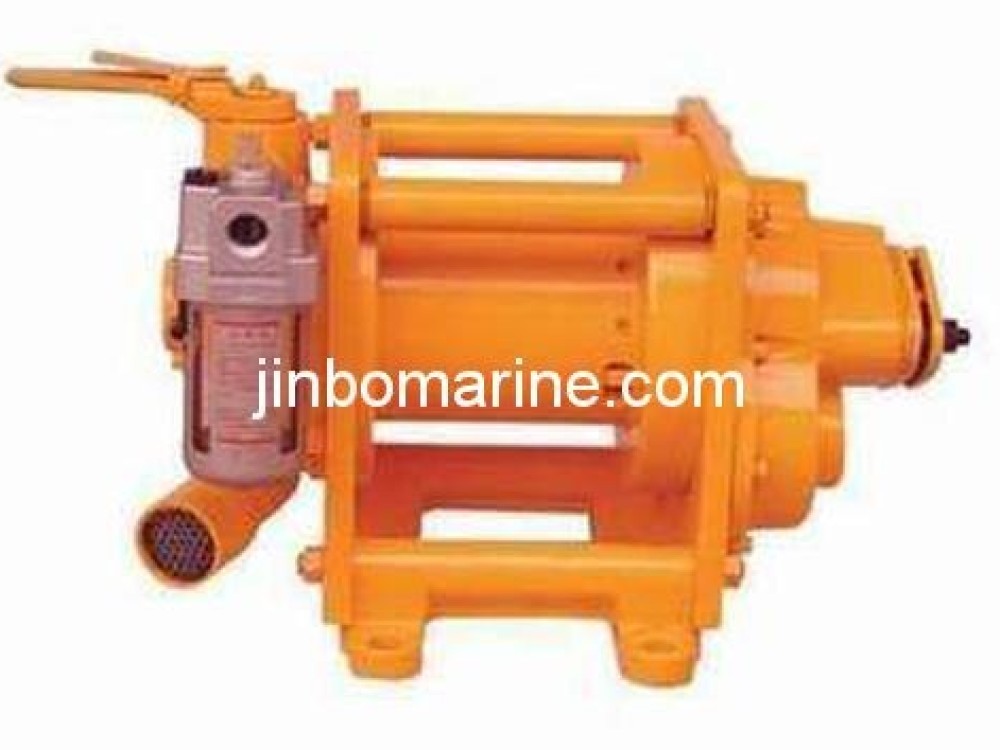

The JQHSY-5*48 Remote-control Air Winch adopts compressed air as power to drive the TMH4A piston air motor. By operating Remote manual diversion valve, the winch can perform hoisting, lowering and stopping actions to the wire rope. Considering security, it is specially designed with brake and stall function for fear of unexpected accidents. Owing to its simple operation, high starting torque and low-maintenance under any extremely conditions, the JQHSY-5*48 Remote-control Air Winch is especially fit for hauling and lifting drilling pipes and sleeves on the second platform of oilfields off-sea and inland.
Advantages
- Compact in size, light weight, portable to move and easy to install;
- Simple and reliable operation with little noise;
- Stable in inflammable, explosive, wet, damp and other extremely operating conditions;
- Low maintenance relieves your anxiety and assures you to use it freely.
- High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily;
- Especially fit for hauling, lifting and other work in mining, construction sites, the second platform of oilfields, etc.
Technical data sheet
| Model | JQHSY5x48 | |
| Pressure of Compressed Air (Mpa) | 0.6-0.7 | |
| Normal Pull Force ( KN) | 5 | |
| Wire Rope Speed (m/min) | 48 | |
| Wire Rope Diameter (mm) | 8 | |
| Inlet Diameter (mm) | 20 | |
| Air Motor | Normal Power (KW) | 4 |
| Cylinder Number(pieces) | 6 | |
| Cylinder Diameter(mm) | 65 | |
| Air Consumption(l/sec) | 130 | |
| Drum | Number (piece) | 1 |
| Diameter (mm) | 175 | |
| Width (mm) | 198 | |
| Wheel Rim Diameter(mm) | 290 | |
| Rope Capacity (M) | 120 | |
| Configuration | Length (mm) | 857 |
| Width (mm) | 342 | |
| Height (mm) | 440 | |
| Weight(KG) | 128 | |
| Remote-control Distance(M) | 6-15 | |
