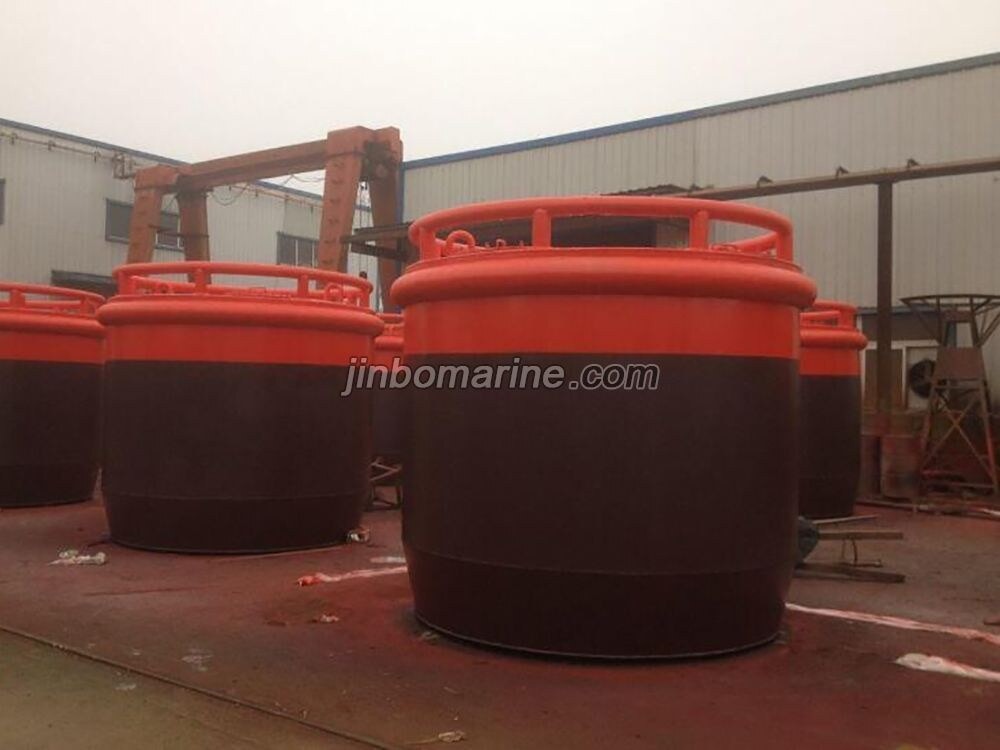

Anchor System Floating Drum
PDF Datasheet
We can supply according to your requirement.
Product Description:
Welding workmanship conform to China CCS standard.
All passed air tightness inspection.
Easy to install.
Service life is long,about 8 years.
Size Chart:
| Product name | Buoyancy(ton) Exclude the anchor | Diameter x height(mm) | Anchor chain(mm) | Lifting ring(mm) | Suitable for sinking stone(ton) | With cable shackle(mm) | Suitable for ship DWL |
| 2.0 type mooring buoy | 3 | 2x1.74 | 62 | 45 | 4 | 90 | <2000 |
| 2.6 type mooring buoy | 6 | 2.6x2.7 | 72 | 45 | 6 | 90 | <5000 |
| 3.6 type mooring buoy | 9 | 3.6x2.14 | 90~100 | 50 | 8 | 14 | <10000 |
| 5.0 type mooring buoy | 28.5 | 5x3.4 | 122 | 60 | 12 | 14 | <12000 |
| 5.5 type mooring buoy | 31.2 | 5.5x3 | <100000 | ||||
| 6.0 type mooring buoy | 34.2 | 6x3.2 | <150000 | ||||
| Remark | Other size can be customized | ||||||
