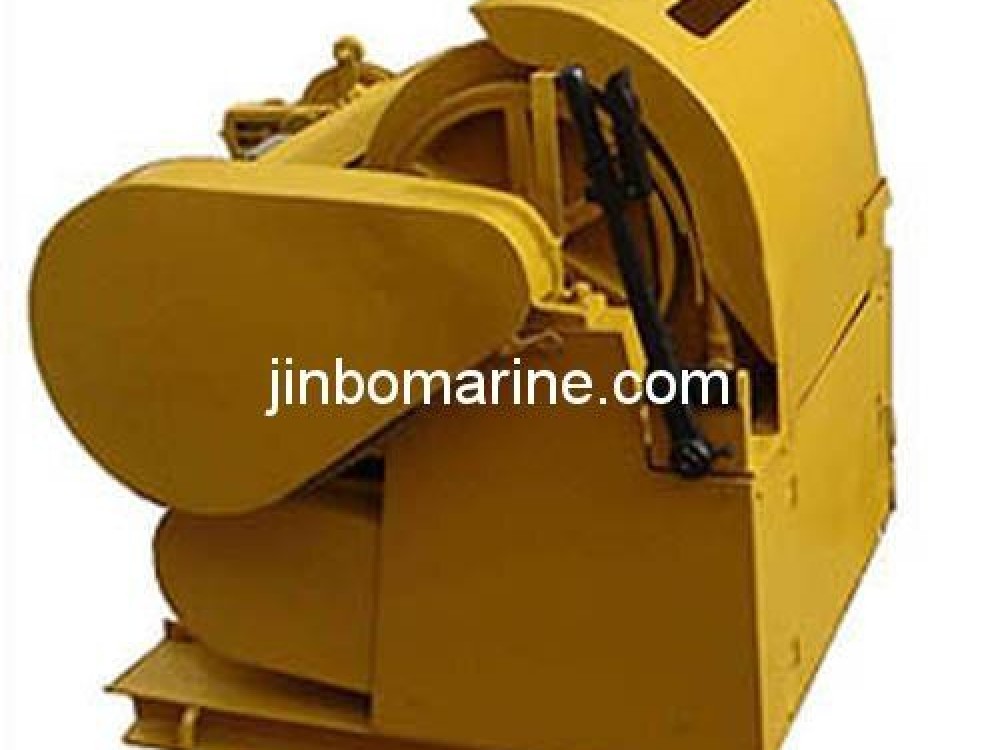

Electric Logging Winch
Description:
DCJ Electric Logging Winch is mainly applied in the measurement of petroleum wells (vertical, directional, cluster), by lifting and lowering measurement instruments to obtain the gradient, location and depth of the wells. It is driven by the electromagnetic governor motor, transferring torque to the drum through sprockets, equipping with speed controller to control the rotary speed of the drum. It is ideal equipment for logging petroleum wells.
Features:
- Automatic spooling device.
- Simple brake device is easy to operate and reliable to use.
- Wide range of speed control and high precision.
- Automatically show the depth and easy to reset.
Technical Specification:
| Electric Power(KW) | 4-7.8 | |
| Logging Depth(m) | 4000-7000 | |
| Roller Speed(R/min) | 15-150 | |
| Max Lifting Weight(KG) | 80 | |
| Dimensions | Length(mm) | 859 |
| Width(mm) | 920 | |
| Height(mm) | 975 | |
| Wire diameter(mm) | 2.2-2.5 | |
| Weight(KG) | 430 | |
