250KW Bow Thrusters
- Category:Bow Thruster
- Certificate:CCS,ABS,BV,DNV,LR etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

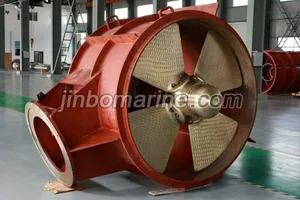

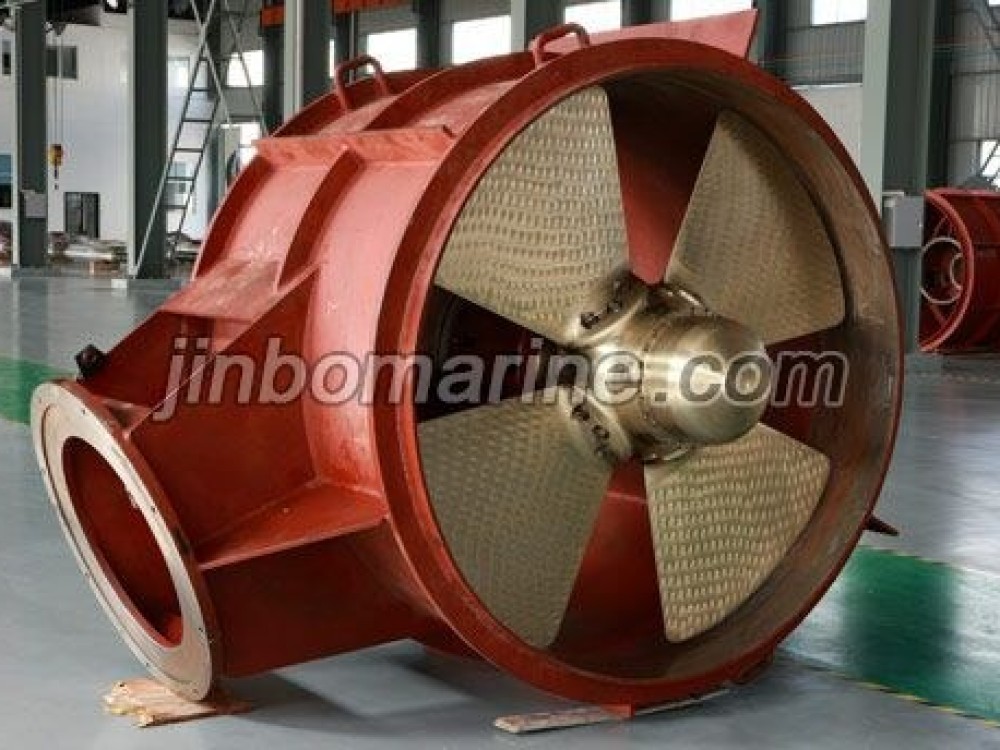

China 250KW Bow Thrusters:
It is mainly used for docking, slow speed
maneuvering, emergency steering etc. Allow the ship to dock without the
assistance of tugboats,improve the manoeuvrability effectively.
It consists of electric drive motor,frequency converter,motor starter,control
panel,thruster part and gravity tank.
Advantages:
Frequency converter intergrated in Motor starter cabinet, it finished programming at factory and save the set parameters.As long as you have correct electric wire,the bow thruster can work normally.
Specification:
| Model of thrust device | CTT160L-FP |
| Diameter of propeller | Φ1000 mm |
| Rotation speed of Input | 1470 r/min |
| Reduction ratio of gear box | 1.69:1 |
| Nominal thrust force | about 40 KN |
| Quantity of blades | 4 |
| Blade material | Cu3 |
| Internal diameter of cylinder | Φ1020 mm |
| Wall thickness of cylinder | 15 mm |
| Drive motor | Marine variable-frequency motor |
| Rated voltage of motor | Three-phase, AC 380V, 50HZ. |
| Model | Undetermined |
| Standard | IEC |
| Mode of installation | Vertical |
| Rated power | 250 KW |
| Working mode | S2-30min |
| Insulation grade | F |
| Defense grade | IP54 |
| Cooling mode | Ic411 |
| Starting mode | Started through variable frequency speed regulation |
