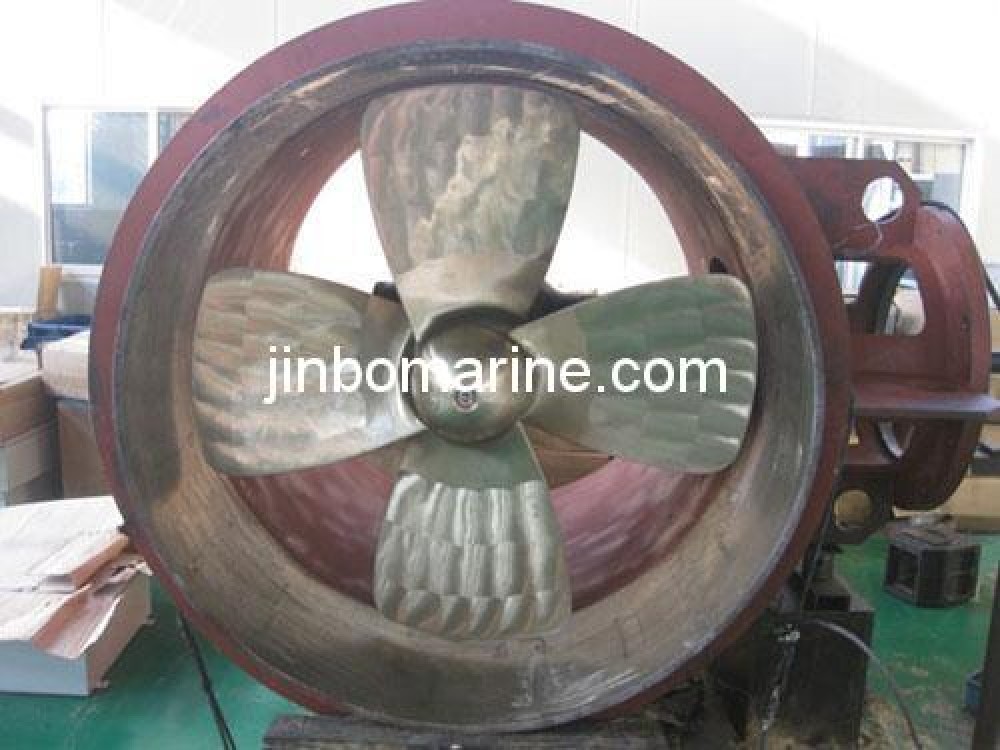

Hydraulic Drive Bow Thruster
The structure of hydraulic drive bow thruster is simple. It use hydraulic motor to control the speed,equipped with hydraulic station,easy to control and get high reliability. T...
Hydraulic Drive Bow Thruster
PDF Datasheet
We can supply according to your requirement.
China Hydraulic Drive Bow Thruster:
The structure of hydraulic drive bow thruster is simple.
It use hydraulic motor to control the speed,equipped with hydraulic station,easy to control and get high reliability.
The bow thruster will have normal and reliable running in following environment.
Ambient temperature: -28ºC—+55ºC.
Relative humidity: 95%（the relative humidity of installation environment of vibrate frequency starter and electric control device is 80%, and should have forced ventilation measures）
Rolling:±22.5º Heel:±15º
Trim: ±5º Pitching:±7.5º
With salt fog, oil fog, mold and vibration and impact from normally sail.
Specification:
| Model | Propeller diameter (mm) | Power (KW) | Max thrust (KN) | Propeller type |
| FP-600 | 600 | 20~75 | 16 | FPP |
| FP-900 | 900 | 75~210 | 33 | FPP |
| FP-1100 | 1100 | 200~330 | 46 | FPP,CPP |
| FP-1300 | 1300 | 310~470 | 66 | FPP,CPP |
| FP-1650 | 1650 | 450~760 | 108 | FPP,CPP |
| FP-1850 | 1850 | 720~1020 | 132 | FPP,CPP |
| FP-2000 | 2000 | 980~1270 | 165 | FPP,CPP |
| FP-2250 | 2250 | 1200~1550 | 235 | FPP,CPP |
| FP-2500 | 2500 | 1450~2100 | 326 | FPP,CPP |
| FP-2750 | 2750 | 2060~2480 | 378 | FPP,CPP |
| FP-3000 | 3000 | 2300~2930 | 462 | FPP,CPP |
