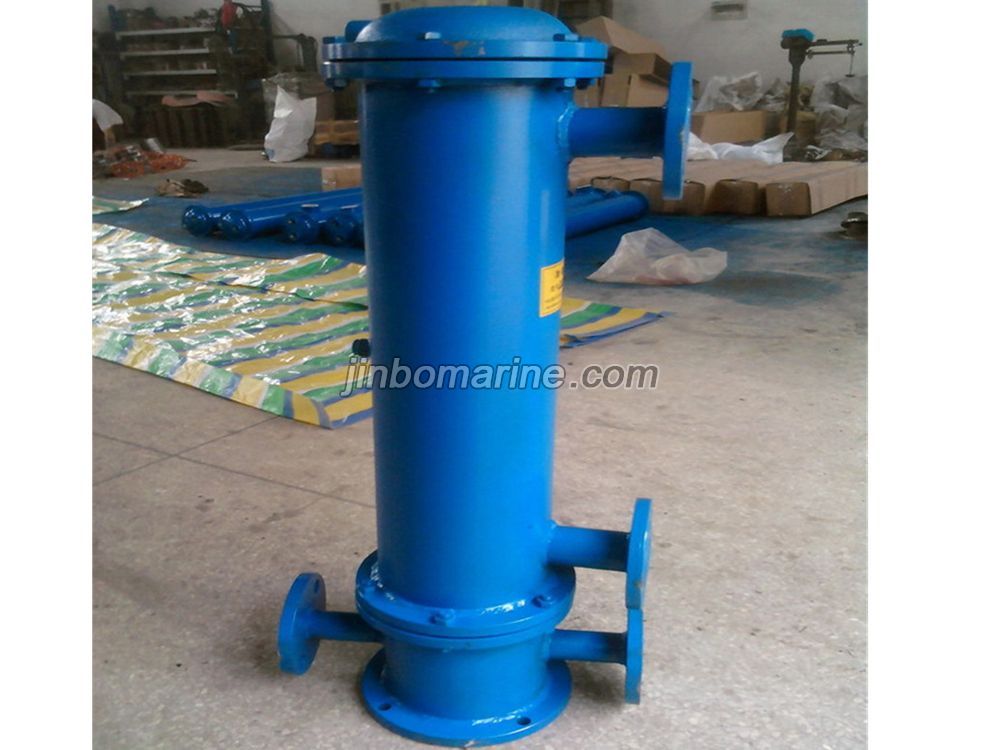

2LQF1W Model Oil Cooler

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Description:

Our factory mainly produces BR0.1 type, BR0.2 type, BR0.3 type, BR0.5 type plate cooler, GLL type, GLC type, 2LQFW type, 2LQFL type, 2LQF1W type, 2LQF1L type, 2LQF2W type, 4LQF3W type, LC type, FL type, SL type, BR type oil cooler tube. At the same time, the production uses air (wind) as cooling medium, KL, FL type air cooler and all copper, aluminum, stainless steel cooler, motor cooler. Special specifications of our factory can help design, installation, to provide users with the required parameters. Cooler products are widely used in power, metallurgy, mining, machine tools, chemical industry and other industries in the hydraulic, hydraulic, lubricating systems and heat exchange cooling system, heat the working medium to the prescribed temperature

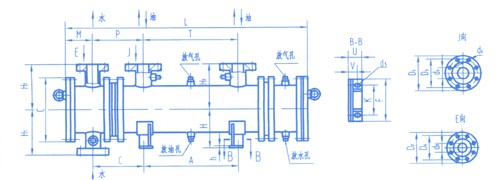

Model 10/19F 10/25F 10-29F 10/36F 10/45F 10/55F 10/68F 10/77F 10/100F 10/135F 10/176F 10/244F 10/299F
A 2690 2690 2670 2640 2670 2590 2590 2590 2690 2620 4700 4800 5800
C 360 415 445 495 98% 600 655 705 805 905 805 908 908
D1 280 280 280 280 280 335 335 405 405 405 405 405 405
D2 190 190 215 215 280 280 280 280 335 335 335 335 335
D3 240 240 240 240 240 295 295 355 355 355 355 355 355
D4 160 160 185 195 240 240 240 240 295 295 295 295 295
Dg 273 325 351 402 450 500 560 600 700 800 705 810 810
d2 80 80 100 100 150 150 150 150 200 200 200 200 200
d3 8-ф23 8-ф23 8-ф23 8-ф23 8-ф23 12-ф23 12-ф23 12-ф23 12-ф25 12-ф25 12-ф25 12-ф25 12-ф25
d4 8-ф18 8-ф18 8-ф18 8-ф18 8-ф23 8-ф23 8-ф23 8-ф23 8-ф23 8-ф23 8-ф23 8-ф23 8-ф23
d5 4 hole16×22 4hole 16×32 4hole 16×32 4hole 19×32 4hole 19×32 4hole 19×32 4hole19×32 4hole19×22 4-ф22 4-ф22 4-ф22 4-ф22 4-ф22
F1 200 200 250 270 300 325 325 400 435 435 430 480 480
G 240 240 280 285 310 345 345 355 360 375 425 450 450
H 190 216 268 292 305 330 300 380 432 482 435 485 485
H1 248 280 298 324 350 375 375 432 490 540 489 540 540
h 10 10 10 10 10 14 14 14 14 14 14 14 14
L 3460 3470 3510 3520 3580 3630 3640 3655 3770 3770 5709 6022 7059
M 140 145 160 165 190 195 200 205 255 255 201 611 611
P 290 292 310 320 345 385 390 395 475 475 381 404 404
T 2690 2690 2690 2680 2680 2615 2600 2595 2510 2510 4705 4993 5905
U 60 60 85 85 85 100 100 100 100 125 125 125 125
V 35 35 50 50 50 70 70 70 100 100 100 100 100
