3G Series Three Screw Oil Transfer Pump

3G Series Three Screw Pump applies to deliver clean and non-corrosive medium which has lubricating property at temperature below ≤150℃、with the viscosity of 5-760cSt,The pump's working press...

Screw Pump1 Photos ISO9001 Supplier

Loading product images...

3G Series Three Screw Oil Transfer Pump

Category: Screw Pump

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

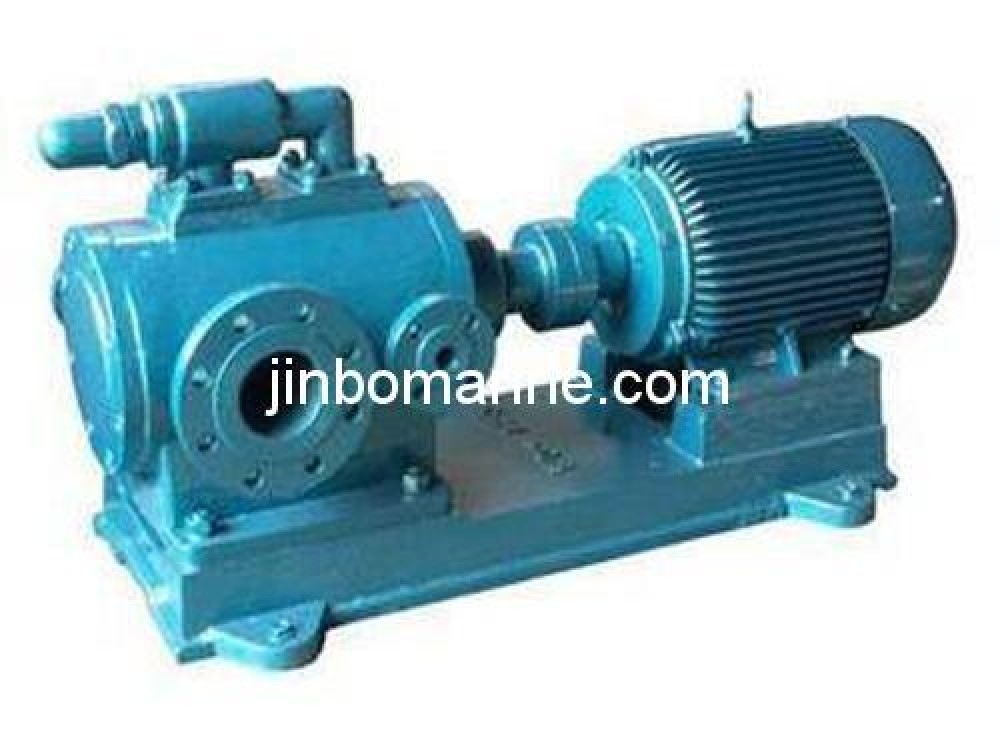

3G Series Three Screw Oil Transfer Pump

3G Series Three Screw Pump applies to deliver clean and non-corrosive medium which has lubricating property at temperature below ≤150℃、with the viscosity of 5-760cSt,The pump's working pressure range from 0.6MPa to 2.5MPa and flow capacity range from 0.6-123m3/h.

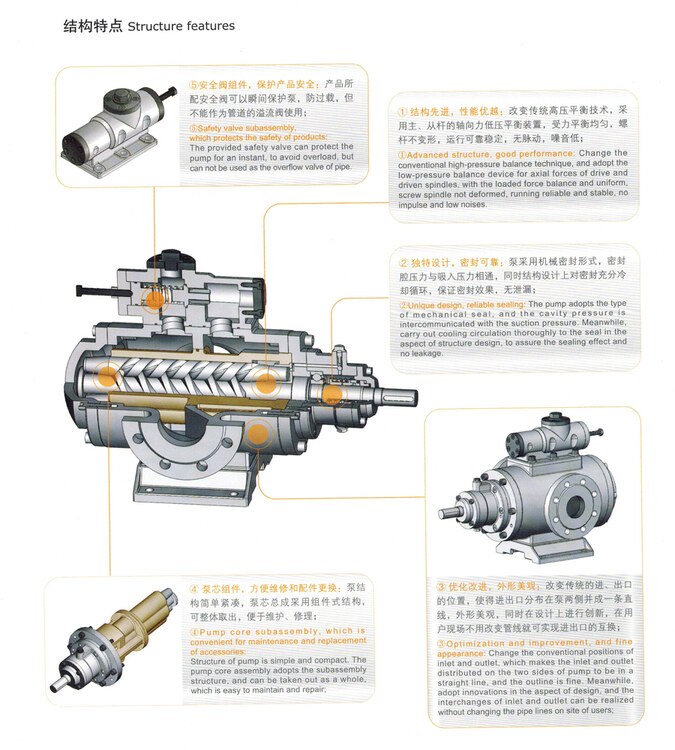

Structural

Feature

(1)Medium is delivered in axial direction continuously without agitation and pulsation.

(2)Small vibration and low noise

(3)High pressure and high efficiency

(4)Simple structure, easy disassembly and assembly

(5)Small volume and light weight

(6)Slight wear and long life of the pump

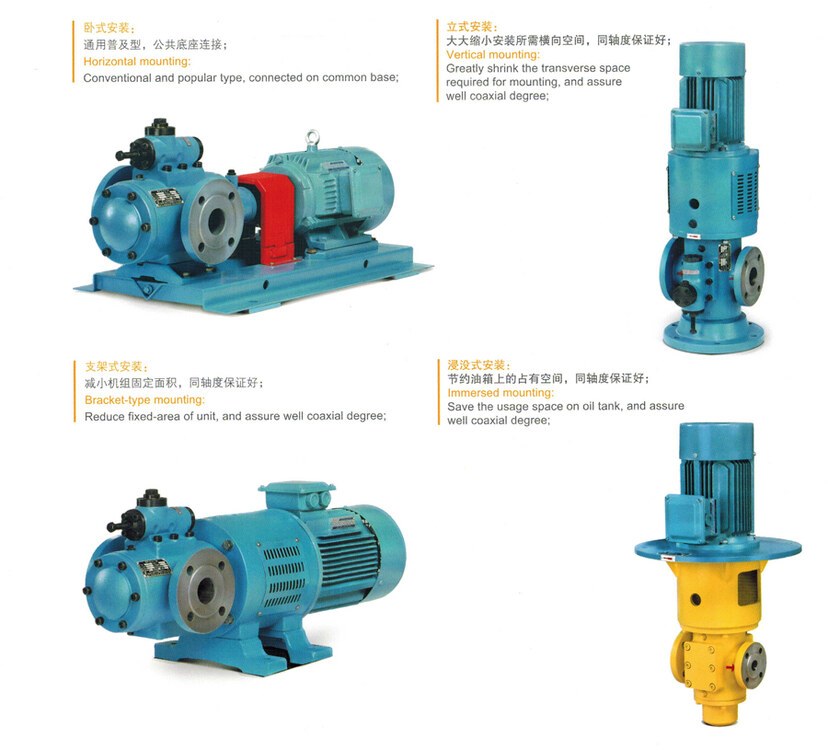

Structure: The pumps are sealed generally by mechanical seal and driven by the motor through the claw coupling.

Material: The driving and driven screw 16MnCrS5,40Cr,45,38CrMoALA 　Pump casing:　HT200, QT450-10, ZCuSn10Pl, ZG270-500

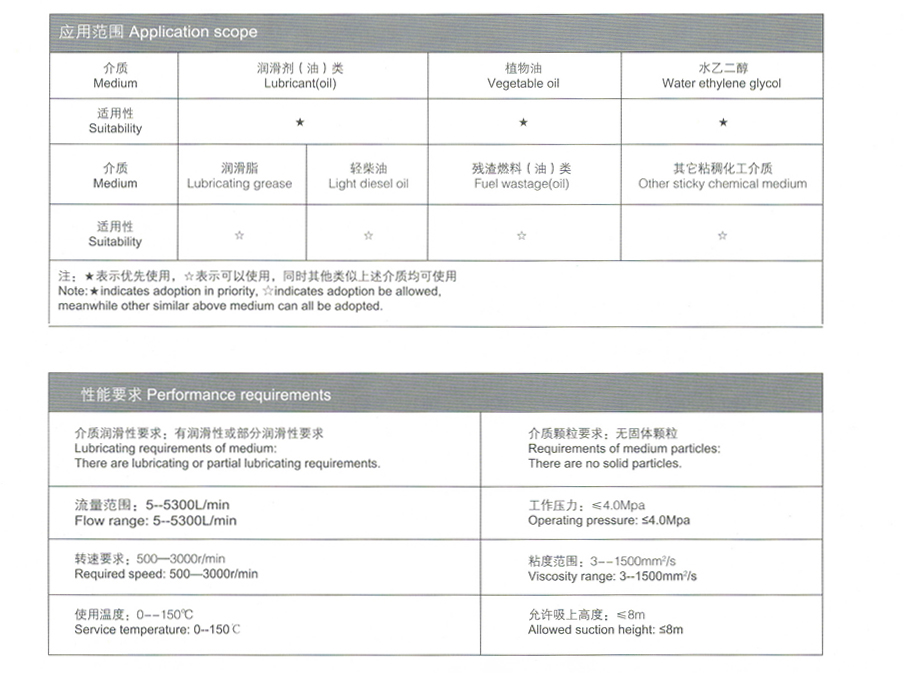

Application

Main Specification

Model	Exhaust Pressure	Capacity Q		Speed	(NPSH)r	Efficiency	Motor
Model	MPa	m3/h	L/min	r/min	m	η %	Power kw	Model
25×4-46	1	0.8	13	1450	4	62	0.75	Y802-4
	2.5	0.6	10	1450	4	60.6	1.5	Y90L-4
	1	2	33	2900	4.5	59.4	1.5	Y90S-2
	2.5	2	26	2900	4.5	69	3	Y100L-2
30×4-46	1	2	26	1450	4.5	63.5	1.1	Y90S-4
	2.5	2	20	1450	4.5	61	2.2	Y100L1-4
	1	2	60	2900	5	60	2.2	Y90L-2
	2.5	2	53	2900	5	69	4	Y112M-2
36×4-46	1	2	46	1450	4.5	66	2.2	Y100L1-4
	2.5	2	40	1450	4.5	66.5	4	Y112M-4
	1	2	108	2900	5	60.5	4	Y112M-2
	2.5	2	100	2900	5	72	7.5	Y132S2-2
42×4-46	1	2	80	1450	5	62	4	Y112M-4
	2.5	2	70	1450	5	73	5.5	Y132S1-4
	1	2	175	2900	5.5	61	5.5	Y132S1-2
	2.5	2	166	2900	5.5	72	15	Y160M2-2
45×4-46	1	2	106	1450	5	70	3	Y100L2-4
	2.5	2	99	1450	5	74	7.5	Y132M-4
	1	2	225	2900	5.5	60	7.5	Y132S2-2
	2.5	2	217	2900	5.5	75	15	Y160M2-2
60×4-46	1	2	255	1450	5	71.3	11	Y160M-4
	2.5	2	245	1450	5	74	15	Y160L-4
	1	2	533	2900	5.5	63	18.5	Y160L-2
	2.5	2	525	2900	5.5	77	37	Y200L2-2
70×2-46	0.6	2	400	1450	5	71	7.5	Y132M-4
	1	2	390			75	11	Y160M-4
	1.6	2	370			76	15	Y160L-4
70×4-46	1	2	408	1450	5	72.5	18.5	Y180M-4
70×4-46	2.5	2	392	1450	5	79	30	Y200L-4
80×2-46	0.6	2	608	1450	5	72	11	Y160M-4
	1	2	594			75.5	18.5	Y180M-4
	1.6	2	575			76.5	22	Y180L-4
80×4-46	1	2	617	1450	5.5	72	30	Y200L-4
80×4-46	2.5	2	590	1450	5.5	78.1	45	Y225M-4
100×2-46	0.6	2	1208	1450	5	73	22	Y180L-4
	1	2	1183			77	37	Y225S-4
	1.6	2	1158			79	45	Y225M-4
100×4-46	1	2	1208	1450	5.5	73	55	Y250M-4
100×4-46	2.5	2	1165	1450	5.5	78.5	75	Y280S-4
S100×3-27	0.6	2	1196	1450	6	62	22	Y180L-4
	1.6	2	1160			72	55	Y250M-4
	2.5	2	1145			74	75	Y280S-4
S120×3-27	0.8	2	2055	1450	6	74.5	55	Y250M-4
	1.5	2	2010			76	90	Y280M-4
	2.5	2	1920			78.5	132	Y315M-4
