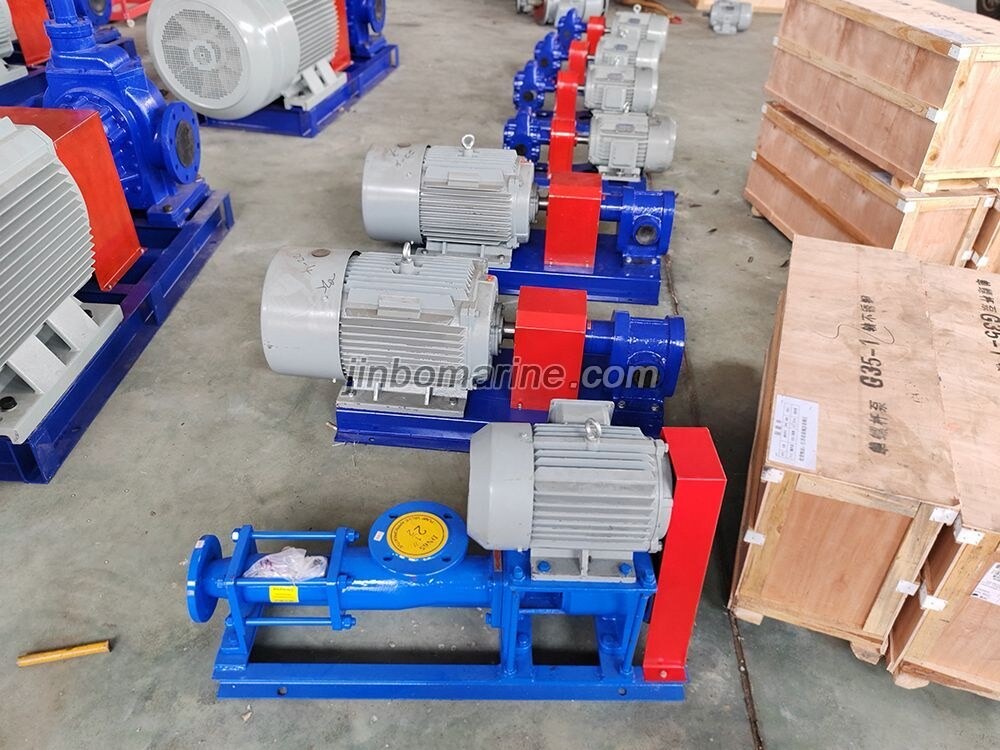

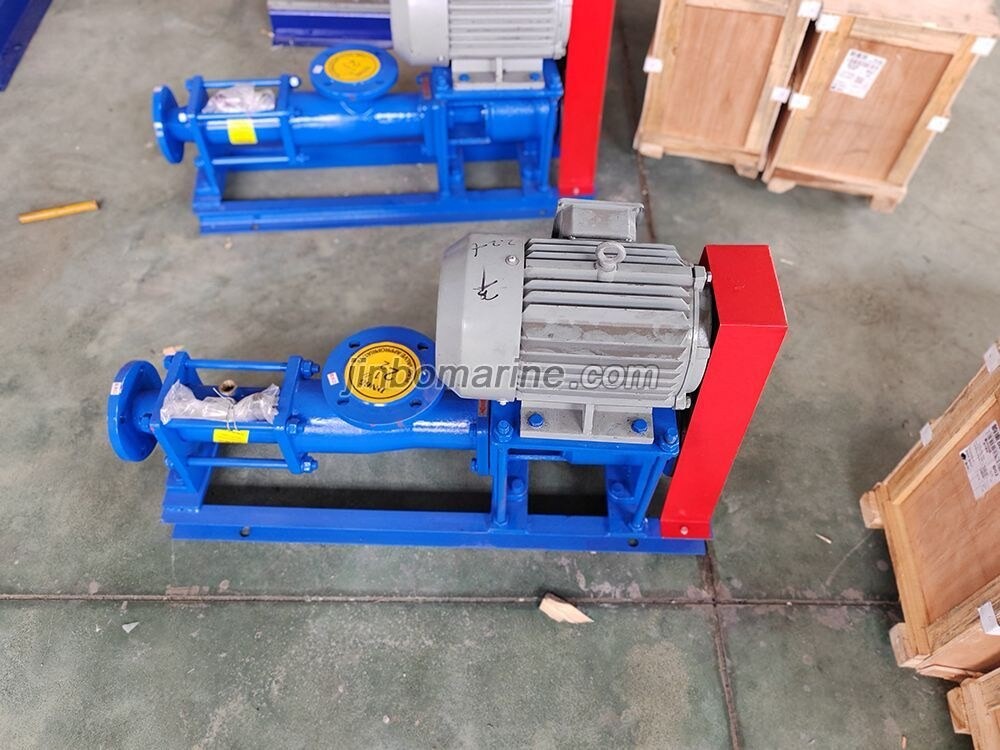

G35-1 Single Screw Pump
G35-1 Single Screw Pump Transportational medium Liquid with different viscosity, especially the thickmediumwhich is difficult to transfer. Liquid with different concen...
Loading product images...
PDF Datasheet
G35-1 Single Screw Pump
Transportational medium
Liquid with different viscosity, especially the thickmediumwhich is difficult to transfer.
Liquid with different concentration and drymaterial which is separated and dehydrated.
Liquid which contains solid particle, fibre and suspended matter.
Mixture of liquid, gas and solid.
+Sensibility liquid which could not be mixed, cut and rob.
Corrosive liquid.
Techincal data:
| Model | Pressure in the delivery branch 0.3MPa | Pressure in the delivery branch 0.6MPa | ||||||
| /min Speed | m³/h Capacity | kW Absorbed power | Motor Gear reducing | (r/min) Speed | m³/h Capacity | kw Absorbed power | ·Motor Gear reducing | |
| G20-1 | 970 | 1.28 | 0.58 | Y100L-6(1.5kW) | 970 | 1.06 | 0.73 | Y100L-6(1.5kW) |
| 720 | 0.81 | 0.45 | Y132S-8(2.2kW) | 720 | 0.58 | 0.56 | Y132S-8(2.2kW) | |
| 579 | 0.50 | 0.33 | YCJ71(1.1kW) | 579 | 0.27 | 0.41 | YCJ71(1.1kW) | |
| 513 | 0.41 | 0.29 | 513 | 0.22 | 0.36 | |||
| 452 | 0.33 | 0.26 | 452 | 0.15 | 0.32 | |||
| 393 | 0.22 | 0.23 | 393 | 0.10 | 0.28 | |||
| G25-1 | 720 | 2.45 | 0.47 | Y132S-8(2.2kW) | 720 | 2.2 | 0.69 | Y132S-8(2.2kW) |
| 570 | 1.89 | 0.39 | YCJ71(0.75kW) | 579 | 1.6 | 0.54 | YCJ71(1.1kW) | |
| 506 | 1.63 | 0.35 | 513 | 1.4 | 0.50 | |||
| 445 | 1.45 | 0.31 | 452 | 1.14 | 0.45 | |||
| 388 | 1.18 | 0.28 | 393 | 0.9 | 0.39 | |||
| 334 | 1.0 | 0.25 | 339 | 0.7 | 0.34 | |||
| 284 | 0.76 | 0.22 | 288 | 0.53 | 0.31 | |||
| G35-1 | 579 | 3.9 | 0.70 | YCJ71(1.1kW) | 579 | 3.25 | 1.06 | YCJ71(1.5kW) |
| 513 | 3.4 | 0.61 | 513 | 2.8 | 0.95 | |||
| 452 | 3.0 | 0.54 | 452 | 2.3 | 0.83 | |||
| 393 | 2.5 | 0.46 | 393 | 1.9 | 0.73 | |||
| 339 | 2.0 | 0.42 | 339 | 1.5 | 0.63 | |||
| 288 | 1.6 | 0.36 | 288 | 1.15 | 0.54 | |||
| 217 | 1.1 | 0.29 | ||||||
| G40-1 | 579 | 7.9 | 1.06 | YCJ71(1.5kW) | 587 | 6.8 | 1.8 | YCJ71(2.2kW) |
| 513 | 6.9 | 0.93 | 520 | 5.7 | 1.61 | |||
| 452 | 5.9 | 0.82 | 458 | 4.8 | 1.43 | |||
| 393 | 5.1 | 0.74 | 399 | 4 | 1.21 | |||
| 339 | 4.2 | 0.63 | 344 | 3 | 1.05 | |||
| 288 | 3.3 | 0.53 | 292 | 2.2 | 0.9 | |||
| 240 | 2.65 | 0.47 | 244 | 1.6 | 0.75 | |||
| 186 | 1.7 | 0.36 | YCJ132(1.1kW) | |||||
| G50-1 | 587 | 15.7 | 2.42 | YCJ71(3kW) | 571 | 13.4 | 3.61 | YCJ80(4kW) |
| 520 | 13.8 | 1.95 | 504 | 11.5 | 3.2 | |||
| 458 | 12.1 | 1.64 | 442 | 9.5 | 2.75 | |||
| 399 | 10.2 | 1.45 | 383 | 7.5 | 2.4 | |||
| 344 | 8.8 | 1.16 | 327 | 6 | 2.02 | |||
| 292 | 7.1 | 0.96 | 275 | 4.4 | 1.71 | |||
| 244 | 5.6 | 0.85 | YCJ71(2.2kW) | 223 | 2.8 | 1.46 | YCJ80(3kW) | |
| 171 | 3.5 | 0.60 | YCJ132(2.2kW) | |||||
| Model | Pressure in the delivery branch 0.3MPa | Pressure in the delivery branch 0.6MPa | ||||||
| /min Speed | m³/h Capacity | kW Absorbed power | ·Motor Gear reducing | (r/min) Rotatings speed | m³/h Capacity | kW Absorbed power | ·Motor Gear reducing | |
| G60-1 | 575 | 23 | 3.48 | YCJ80(5.5kW) | 541 | 18.8 | 5.05 | YCJ100(7.5kW) |
| 507 | 20.3 | 2.96 | 475 | 16.5 | 4.58 | |||
| 444 | 17.8 | 2.47 | 414 | 14.4 | 4.14 | |||
| 385 | 15.4 | 2.1 | 357 | 12.4 | 3.69 | |||
| 329 | 13.1 | 1.76 | YCJ100(4kW) | 303 | 10.5 | 3.56 | ||
| 250 | 10 | 1.52 | 252 | 8.7 | 3.15 | |||
| G70-1 | 571 | 31 | 4.3 | YCJ80(5.5kW) | 545 | 25 | 7.04 | YCJ100(11kW) |
| 504 | 27 | 3.43 | 479 | 21 | 6.11 | |||
| 442 | 24 | 2.99 | 417 | 17.9 | 5.47 | |||
| 383 | 20 | 2.53 | 360 | 13.5 | 4.7 | |||
| 327 | 16.5 | 2.22 | 305 | 9.5 | 3.99 | |||
| 244 | 12 | 1.63 | YCJ100(4kW) | 250 | 7.0 | 2.88 | YC100(7.5kW) | |
| 208 | 8.8 | 1.5 | YCJ160(4kW) | 194 | 3.8 | 2.47 | YCJ180(7.5kW) | |
| 149 | 5.2 | 0.95 | ||||||
| G85-1 | 359 | 36 | 6 | YCJ100(11KW) | 359 | 28 | 9.1 | YCJ112(15KW) |
| 279 | 27 | 5.4 | YCJ112(11KW) | 272 | 19 | 7.7 | YCJ200(15KW) | |
| 254 | 23 | 5 | 252 | 16 | 7.3 | |||
| 228 | 21 | 5.2 | YCJ112(7.5KW) | 212 | 13 | 6.6 | YCJ200(11KW) | |
| 181 | 15.5 | 4.3 | YCJ160(5.5KW) | 188 | 9 | 5.8 | ||
| 166 | 14 | 4.5 | 166 | 8 | 5 | YCJ180(7.5KW) | ||
| G105-1 | 359 | 68 | 10.4 | YCJ112(15KW) | 310 | 55 | 13 | YCJ225(18.5KW) |
| 272 | 51 | 7.7 | YCJ200(15KW) | 272 | 42 | 10.5 | YCJ200(15KW) | |
| 254 | 45 | 7.2 | YCJ112(11KW) | 252 | 31 | 9.7 | ||
| 212 | 35 | 6 | YCJ200(11KW) | 212 | 28 | 8.5 | ||
| 188 | 29 | 5 | 188 | 21 | 6.7 | |||
| 166 | 23 | 4.5 | YCJ180(7.5KW) | 165 | 16.5 | 6.3 | YCJ200(11KW) | |
| G135-1 | 343 | 136 | 21 | YCJ350(45KW) | 343 | 126 | 36.9 | YCJ350(55KW) |
| 319 | 127 | 19.5 | YCJ315(30KW) | 284 | 95 | 30 | YCJ350(45KW) | |
| 267 | 100 | 16.5 | YCJ225(22KW) | 256 | 83 | 27 | YCJ315(37KW) | |
| 210 | 79 | 13.5 | YCJ225(18.5KW) | 224 | 67 | 24 | YCJ315(30KW) | |
| 182 | 66 | 11.8 | 177 | 52 | 19 | |||
| 165 | 52 | 10.5 | YCJ200(15KW) | 162 | 41 | 16.5 | YCJ280(22KW) | |
