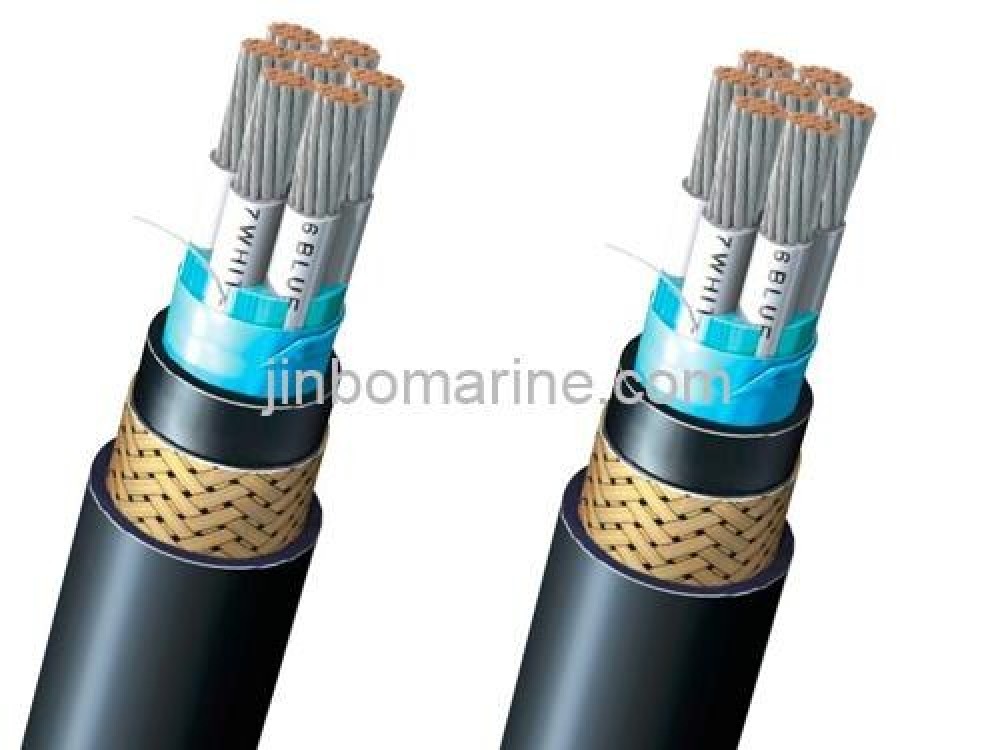

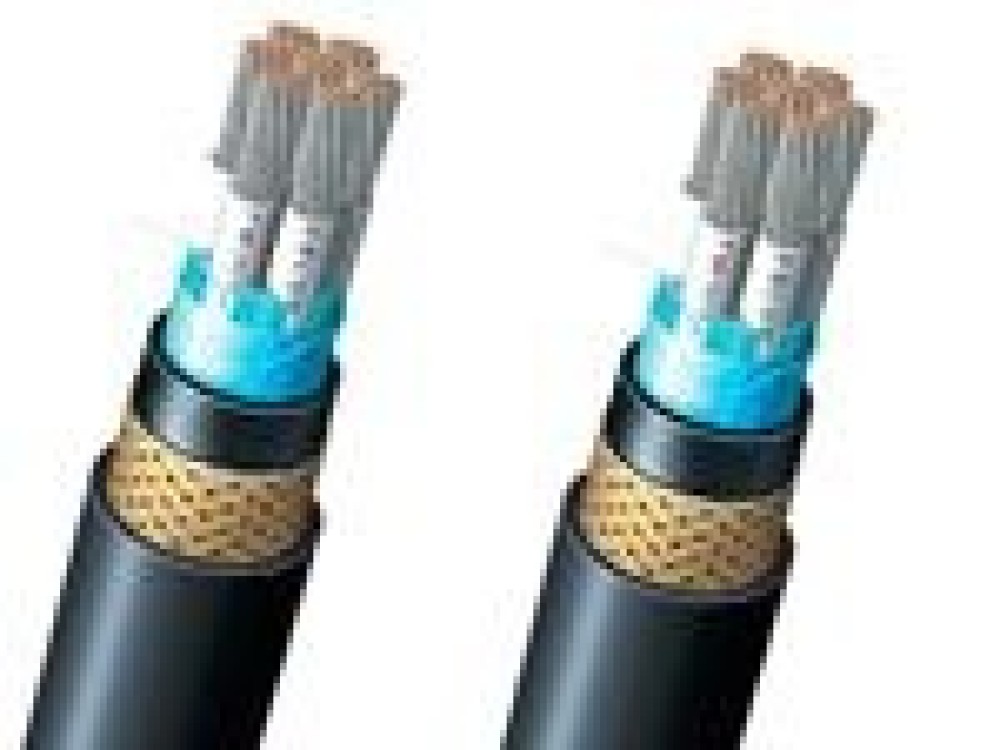

600V C(OBS)PMBS Offshore Control Cable(Overall Braid Shield)

Request a Quote Not what you need, please send your RFQs via Email.

Details

Cable Type 600V

Flame retardant: C(OBS)PN C(OBS)PNA C(OBS)PNB

C(OBS)PNBS

C(OS)LSEL C(OS)LSELA C(OS)LSELB C(OS)LSELBS

C(OBS)PM C(OBS)PMA C(OBS)PMB C(OBS)PMBS

Fire resistant:

FS-C(OBS)PN FS-C(OBS)PNA FS-C(OBS)PNB FS-C(OBS)PNBS

FS-C(OS)LSEL FS-C(OS)LSELA FS-C(OS)LSELB FS-C(OS)LSELBS

FS-C(OBS)PM FS-C(OBS)PMA FS-C(OBS)PMB FS-C(OBS)PMBS

Cable Construction

Classification

Code

Construction details

Conductor

Annealed Stranded Copper Wire

Cable Type

C

Control Cable

Fire-resisting(Optional)

FS

Mica Tape

Insulation

P

Cross-Linked Polyolefin

LSE

Low Smoke EP Rubber

Overall Shied

OS

AL/PS Overall tape with tinned copper wire

100% coverage over the cable core

Jacket

N

Flame Retardant Thermosetting Neoprene

L

Flame Retardant Low Smoke XLPO

M

Flame Retardant Mud Resistant XLPO

Armor(Optional)

B

Bronze

T

Tinned Copper Wire

Outer Sheath(Optional)

S

Same as Jacket

Standards

IEEE 1560(2001) IEC 45(1998)

UL 1309/CSA C 22.2 NO. 245(1995)

IEEE 1202(1991)

IEC 60332-3 Category A

CSA C 22.2 NO.38(at -40℃)

IEC 60331-1(FS type Cable)

NEK 606

Cores & Size

Cores: 3 4 5 7 10 12 14 16 19 25 30 33 60 90

Size (AWG or MCM):20 18 1614 12 10

Application:

The cable is fixed installation for control, voltage up to 600V, apply for commercial marine, shipping building, MODU’S and Platform.

Advantage of IEEE 1580 Cable

Flame retardant

Fire-resistant (FS Type)

Resistance to oil, abrasion, petrochemical fluid, moisture and sunlight

Excellent flexibility

Mud Resistant
