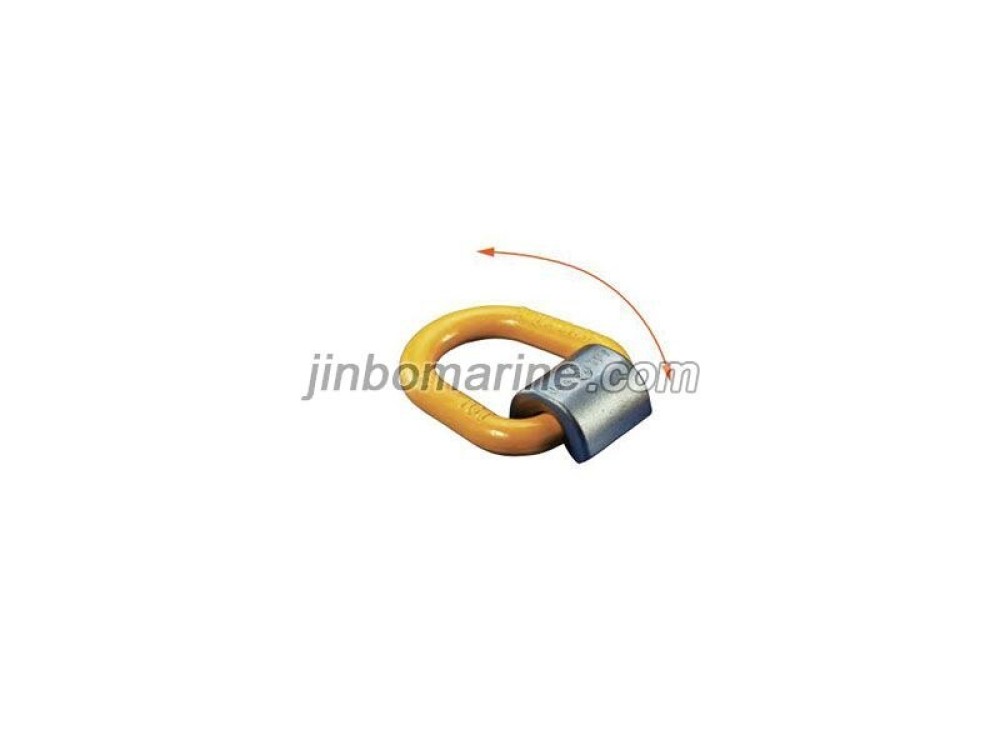

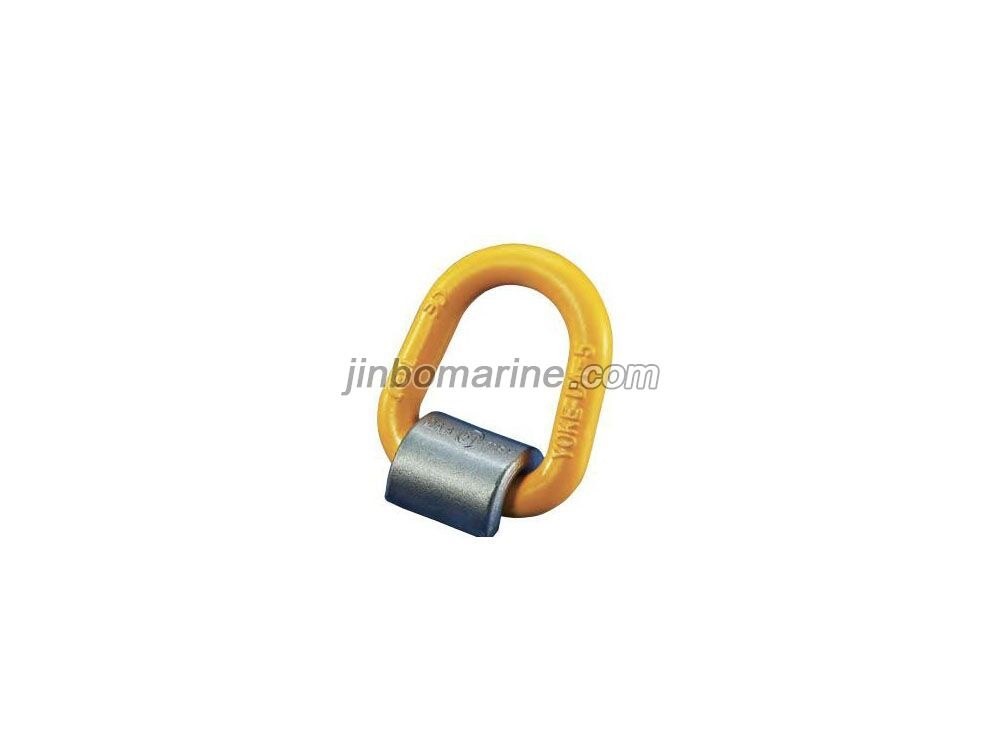

8-0573 Yoke Weld Lifting Point
8-0573 Yoke Weld Lifting Point Drawing 8-0573 Yoke Weld Lifting Point Parameters ITEM NO. WLL/T Weight/kg ...
Loading product images...
8-0573 Yoke Weld Lifting Point
PDF Datasheet
We can supply according to your requirement.

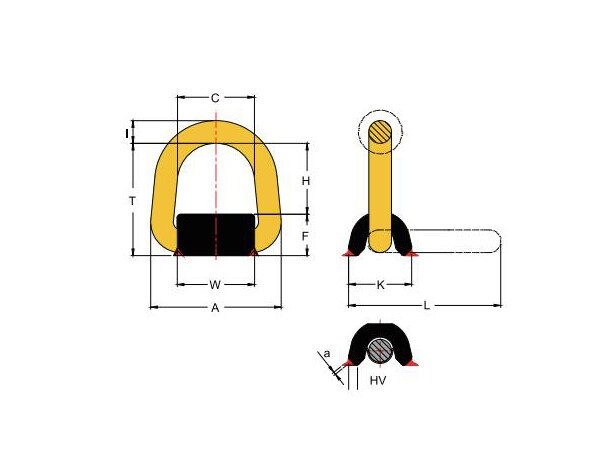

8-0573 Yoke Weld Lifting Point Drawing
8-0573 Yoke Weld Lifting Point Parameters
| ITEM NO. | WLL/T | Weight/kg |
| 8-0573-01 | 1 | 0.5 |
| 8-0573-03 | 3 | 0.9 |
| 8-0573-05 | 5 | 1.3 |
| 8-0573-08 | 8 | 2.4 |
| 8-0573-10 | 10 | 2.8 |
| 8-0573-20 | 20 | 6.5 |
| 8-0573-30 | 30 | 17.2 |
| ITEM NO. | TECHNICAL PARAMETERS/MM | |||||
| A | B | C | D | E | F | |
| 8-0573-01 | 83 | 37 | 48 | 14 | 14 | 75 |
| 8-0573-03 | 98 | 48 | 58 | 17 | 17 | 85 |
| 8-0573-05 | 120 | 56 | 66 | 22 | 22 | 92 |
| 8-0573-08 | 121 | 68 | 68 | 26 | 26 | 122 |
| 8-0573-10 | 146 | 68 | 82 | 20 | 30 | 125 |
| 8-0573-20 | 186.5 | 93 | 100 | 25 | 37 | 182 |
| 8-0573-30 | 254.5 | 130 | 140 | 35 | 45 | 225 |
| ITEM NO. | TECHNICAL PARAMETERS/MM | |||||
| G | H | L | W | HV | a | |
| 8-0573-01 | 26 | 49 | 105 | 48 | 5 | 3 |
| 8-0573-03 | 31 | 54 | 112 | 54 | 6 | 3 |
| 8-0573-05 | 37 | 55 | 154 | 56 | 7 | 3 |
| 8-0573-08 | 47 | 75 | 169 | 55 | 10 | 4 |
| 8-0573-10 | 47 | 78 | 191 | 70 | 10 | 4 |
| 8-0573-20 | 70 | 110 | 234 | 91 | 20 | 4 |
| 8-0573-30 | 98 | 127 | 328 | 127 | 20 | 4 |
