RA Round Sling
Description RA round sling is soft in texture and with multiple suspension points and is entanglement. Suitable for all kinds of complicated situations of hoisting. Technical Da...
Loading product images...
PDF Datasheet
Description

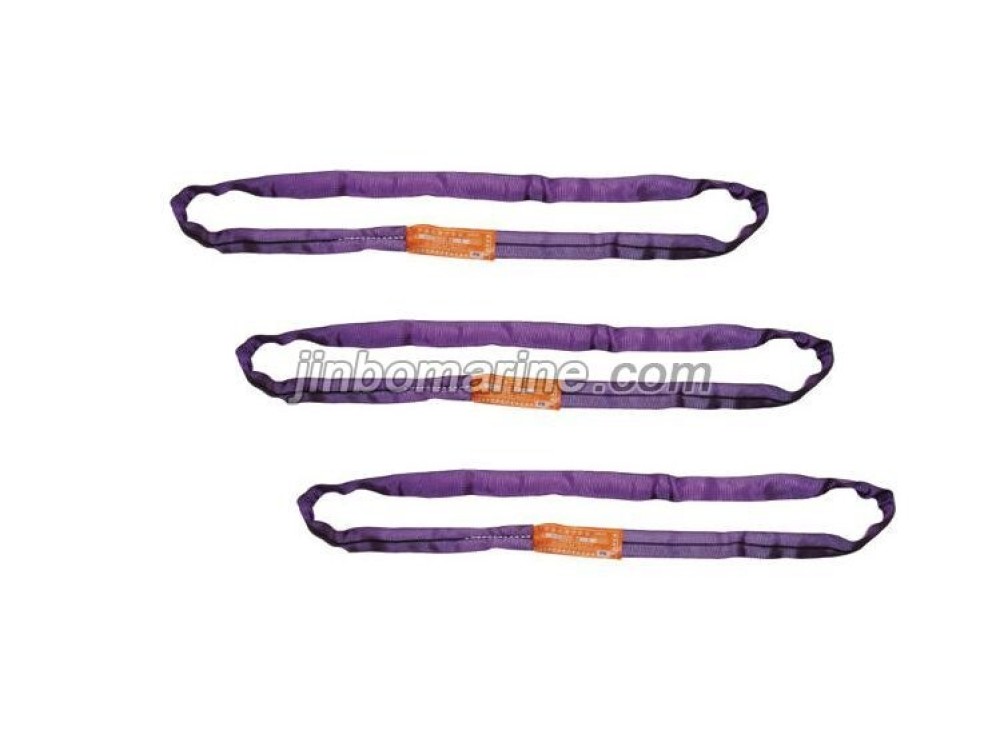

RA round sling is soft in texture and with multiple suspension points and is entanglement. Suitable for all kinds of complicated situations of hoisting.
Technical Data

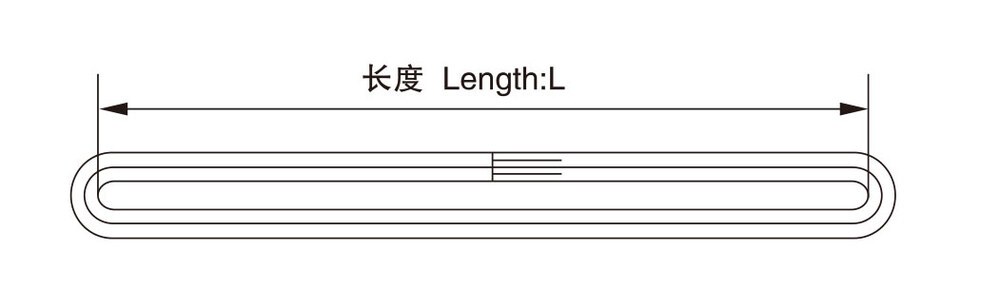

| Products code | Working load limit（kg） | Approximate thickness（mm） | Approximate width（mm） | Min length（m） | Max length(m) |
| RA1/2 | 500 | 4 | 50 | 0.50 | |
| RA001 | 1000 | 6 | 50 | 0.50 | |
| RA002 | 2000 | 8 | 60 | 0.50 | |
| RA003 | 3000 | 9 | 70 | 0.50 | |
| RA004 | 4000 | 11 | 70 | 0.50 | |
| RA005 | 5000 | 13 | 85 | 0.50 | |
| RA006 | 6000 | 13 | 85 | 1.00 | |
| RA008 | 8000 | 13 | 120 | 1.00 | |
| RA010 | 10000 | 14 | 120 | 2.00 | |
| RA012 | 12000 | 15 | 130 | 2.00 | |
| RA015 | 15000 | 18 | 130 | 2.00 | |
| RA020 | 20000 | 20 | 140 | 2.50 | |
| RA025 | 25000 | 24 | 140 | 2.50 | To be customized |
| RA030 | 30000 | 32 | 145 | 2.50 | |
| RA040 | 40000 | 40 | 150 | 2.50 | |
| RA050 | 50000 | 45 | 175 | 2.50 | |
| RA060 | 60000 | 65 | 205 | 4.00 | |
| RA080 | 80000 | 70 | 250 | 4.00 | |
| RA100 | 100000 | 80 | 290 | 4.00 | |
| RA200 | 200000 | 120 | 465 | 5.00 | |
| RA300 | 300000 | 160 | 555 | 5.00 | |
| RA400 | 400000 | 200 | 700 | 5.00 | |
| RA500 | 500000 | 220 | 790 | 8.00 | |
| RA600 | 600000 | 240 | 875 | 8.00 | |
| RA700 | 700000 | 260 | 920 | 8.00 | |
| RA800 | 800000 | 280 | 985 | 8.00 | |
| RA900 | 900000 | 300 | 1050 | 9.00 | |
| RA1000 | 1000000 | 320 | 1080 | 9.00 |
