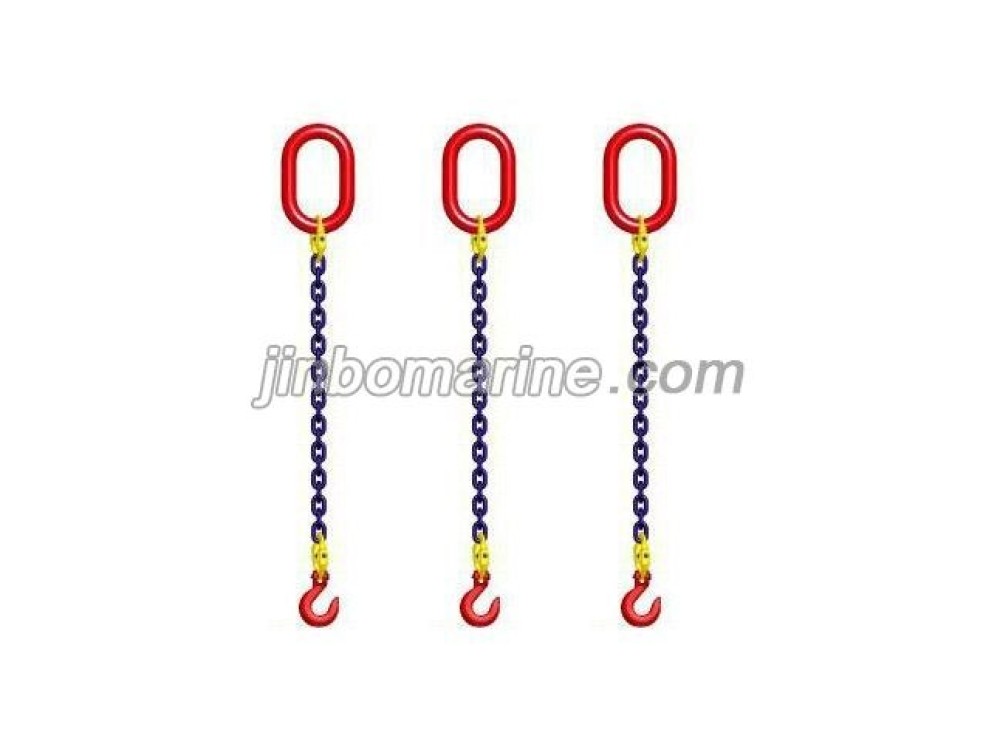

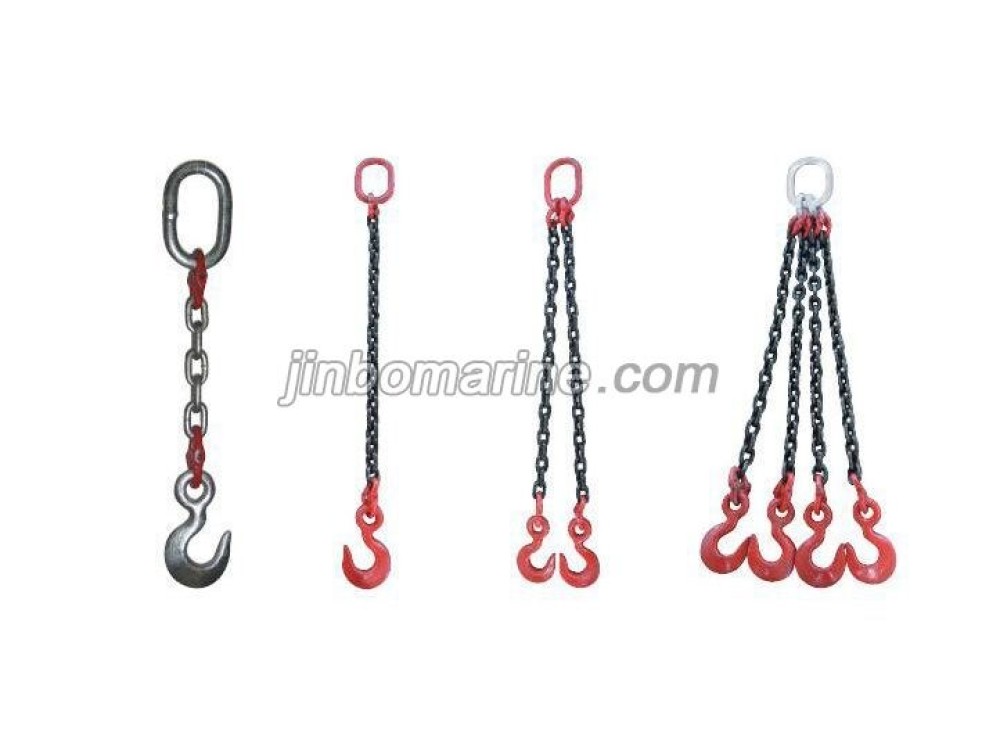

One Leg Chain Sling
Description The parameter of chain in the table is in accordance with JB/T8108.1-1999Grade(8) The terminal uses the chain link with the shackle. Is advantageous for the customer ...
Loading product images...
PDF Datasheet
Description
The parameter of chain in the table is in accordance with JB/T8108.1-1999Grade(8)
The terminal uses the chain link with the shackle. Is advantageous for the customer to combine at will.
Terminal may be hook , link and shackle.
Technical Data
| Model | Diamerter of the chain（mm） | WLL（t） | Master link A×B×d（mm） | Weight/m （kg/m） | Chain weight（kg） |
|---|---|---|---|---|---|
| YLS1-6 | 6 | 1 | 65×130×12 | 1.88 | 0.79 |
| YLS1-8 | 8 | 1.5 | 65×130×16 | 3.07 | 1.38 |
| YLS1-10 | 10 | 2.5 | 80×150×20 | 5.96 | 2.2 |
| YLS1-12 | 12 | 3.5 | 90×160×24 | 9.03 | 3.1 |
| YLS1-14 | 14 | 5 | 90×160×24 | 10.09 | 4.13 |
| YLS1-16 | 16 | 6 | 100×190×28 | 14.25 | 5.63 |
| YLS1-18 | 18 | 8 | 100×190×28 | 15.31 | 6.85 |
| YLS1-20 | 20 | 10 | 110×200×32 | 18.96 | 8.6 |
| YLS1-22 | 22 | 12 | 120×230×32 | 35.51 | 10.2 |
| YLS1-24 | 24 | 14 | 135×250×38 | 39.25 | 12.78 |
| YLS1-26 | 26 | 17 | 140×270×42 | 65.28 | 14.87 |
| YLS1-30 | 30 | 22 | 160×310×46 | 69.65 | 19.6 |
| YLS1-34 | 34 | 36 | 180×330×56 | 78.73 | 22.7 |
