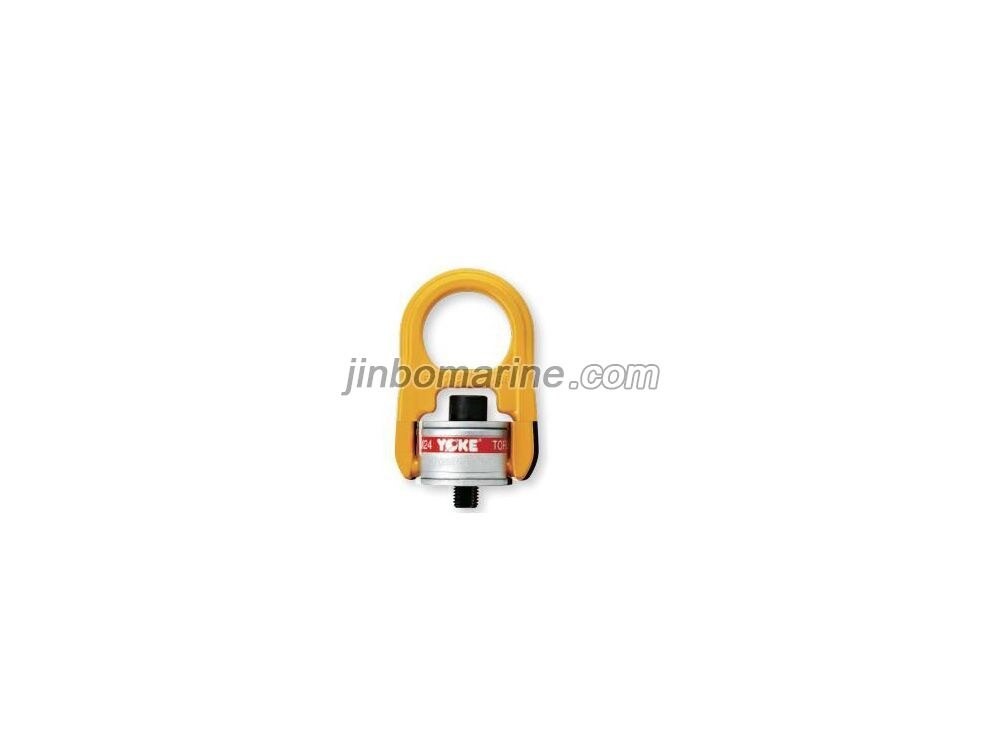

8-203 Yoke Rotary Hoist Rings Screw With Metric Thread
- Category:Chain Sling
- Delivery Time:15 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

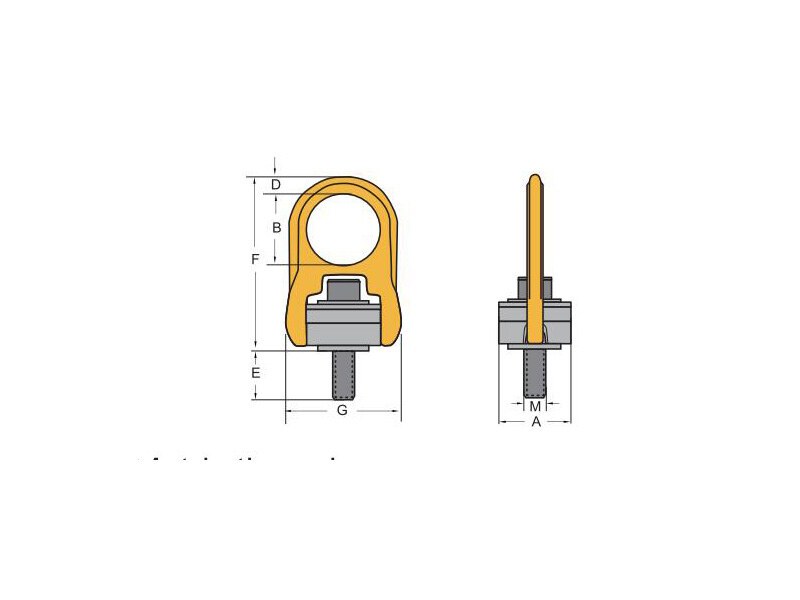

8-203 Yoke Rotary Hoist Rings Screw With Metric Thread Drawing
8-203 Yoke Rotary Hoist Rings Screw With Metric Thread Parameters
| ITEM NO. | WLL/T | THREAD/M | WEIGHT/KG | |
| 5:1 | 4:1 | |||
| 8-203-004 | 0.4 | 0.5 | M8X1.25 | 0.4 |
| 8-203-005 | 0.45 | 0.55 | M10X1.5 | 0.5 |
| 8-203-005L | 0.45 | 0.55 | M10X1.5 | 0.5 |
| 8-203-010 | 1.05 | 1.3 | M12X1.75 | 1.7 |
| 8-203-010L | 1.05 | 1.3 | M12X1.75 | 1.7 |
| 8-203-019 | 1.90 | 2.4 | M16X2 | 1.8 |
| 8-203-019L | 1.90 | 2.4 | M16X2 | 1.8 |
| 8-203-021 | 2.15 | 2.7 | M20X2.5 | 1.8 |
| 8-203-021L | 2.15 | 2.7 | M20X2.5 | 1.9 |
| 8-203-030 | 3 | 3.75 | M20X2.5 | 4.0 |
| 8-203-030L | 3 | 3.75 | M20X2.5 | 5.2 |
| 8-203-042 | 4.2 | 5.25 | M24X3 | 4.2 |
| 8-203-042L | 4.2 | 5.25 | M24X3 | 4.3 |
| 8-203-070 | 7 | 8.75 | M30X3.5 | 6.6 |
| 8-203-110 | 11 | 13.75 | M36X4 | 15.0 |
| 8-203-125 | 12.5 | 15.6 | M42X4.5 | 16.0 |
| 8-203-135 | 13.5 | 16.9 | M48X5 | 16.0 |
| 8-203-155 | 15.5 | 19.4 | M56X5.5 | 19.1 |
| 8-203-223 | 22.3 | 27.9 | M64X6 | 23.0 |
| ITEM NO. | TECHNICAL PARAMETERS/MM | ||
| A | B | D | |
| 8-203-004 | 40 | 41 | 9 |
| 8-203-005 | 40 | 41 | 9 |
| 8-203-005L | 40 | 41 | 9 |
| 8-203-010 | 65 | 64 | 15 |
| 8-203-010L | 65 | 64 | 15 |
| 8-203-019 | 65 | 64 | 15 |
| 8-203-019L | 65 | 64 | 15 |
| 8-203-021 | 65 | 64 | 15 |
| 8-203-021L | 65 | 64 | 15 |
| 8-203-030 | 85 | 79 | 19 |
| 8-203-030L | 85 | 79 | 19 |
| 8-203-042 | 85 | 79 | 19 |
| 8-203-042L | 85 | 79 | 19 |
| 8-203-070 | 100 | 100 | 25 |
| 8-203-110 | 120 | 111 | 30 |
| 8-203-125 | 120 | 111 | 30 |
| 8-203-135 | 120 | 111 | 30 |
| 8-203-155 | 138 | 109 | 34 |
| 8-203-223 | 138 | 100 | 38 |
| ITEM NO. | TECHNICAL PARAMETERS/MM | ||
| E | F | G | |
| 8-203-004 | 17 | 102 | 65 |
| 8-203-005 | 11 | 102 | 65 |
| 8-203-005L | 26 | 102 | 65 |
| 8-203-010 | 15 | 158 | 105 |
| 8-203-010L | 30 | 158 | 105 |
| 8-203-019 | 20 | 158 | 105 |
| 8-203-019L | 35 | 158 | 105 |
| 8-203-021 | 25 | 158 | 105 |
| 8-203-021L | 45 | 158 | 105 |
| 8-203-030 | 25 | 204 | 105 |
| 8-203-030L | 45 | 204 | 134 |
| 8-203-042 | 26 | 204 | 134 |
| 8-203-042L | 56 | 204 | 134 |
| 8-203-070 | 81 | 241 | 160 |
| 8-203-110 | 76 | 286 | 194 |
| 8-203-125 | 65 | 286 | 220 |
| 8-203-135 | 70 | 286 | 220 |
| 8-203-155 | 79 | 308 | 241 |
| 8-203-223 | 78 | 312 | 241 |
