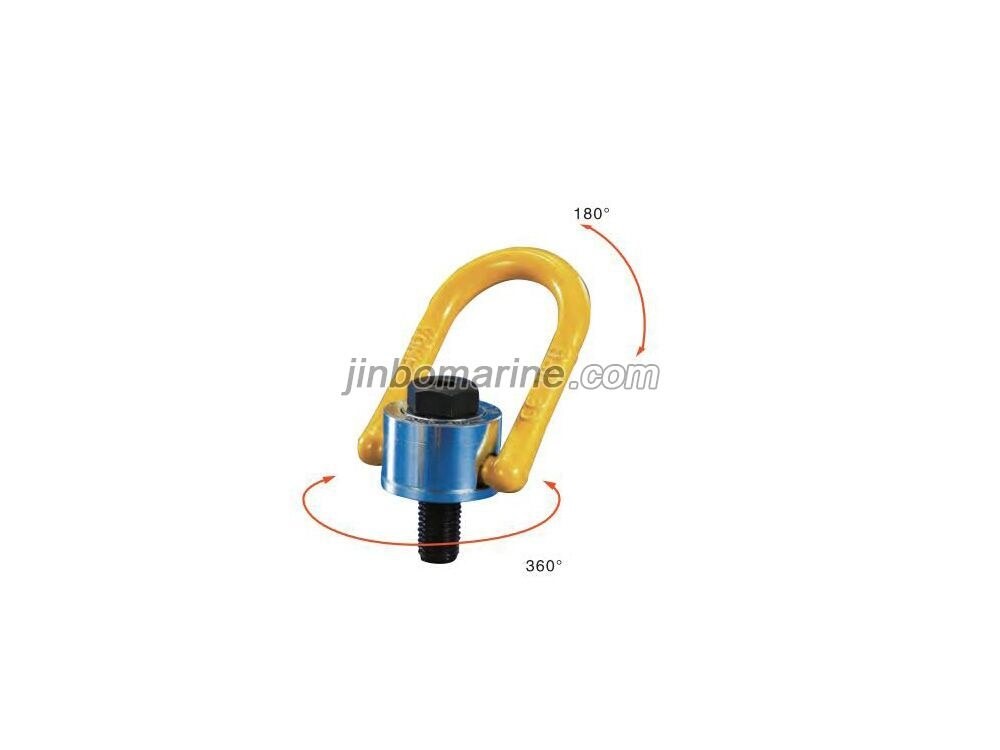

8-232 Yoke Rotary Anchor Point With Unc Thread
- Category:Chain Sling
- Delivery Time:15 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

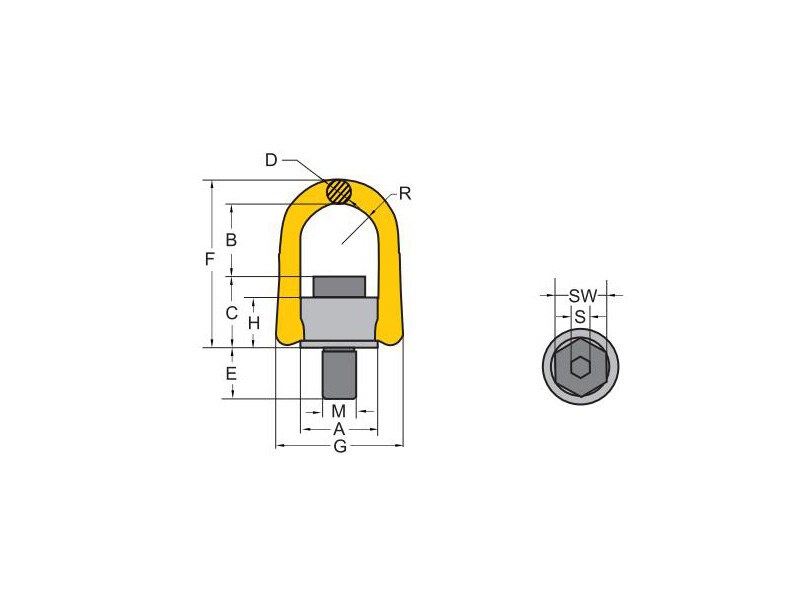

8-232 Yoke Rotary Anchor Point With Unc Thread Drawing
8-232 Yoke Rotary Anchor Point With Unc Thread Parameters
| ITEM NO. | WLL/T | TPI | WEIGHT/KG | |
| Y | (Z) | |||
| 8-232-010 | 0.8 | 1.6 | 1/2-13UNC | 1.8 |
| 8-232-020 | 1.6 | 2.6 | 5/8-11UNC | 2 |
| 8-232-030 | 2.4 | 4 | 3/4-10UNC | 2.2 |
| 8-232-038 | 3 | 4.5 | 7/8-9UNC | 4.3 |
| 8-232-050 | 4.5 | 7.4 | 1-8UNC | 5.7 |
| 8-232-078 | 6.25 | 9.6 | 1 1/4-7UNC | 11 |
| 8-232-125 | 10 | 11 | 1 1/2-6UNC | 21.2 |
| 8-232-200 | 16 | 16 | 2-4.5UNC | 25.6 |
| ITEM NO. | TECHNICAL PARAMETERS/MM | ||||
| A | B | C | D | E | |
| 8-232-010 | 1.3 | 1.57 | 12 | 0.41 | 0.81 |
| 8-232-020 | 1.97 | 2.13 | 1.81 | 0.65 | 1.13 |
| 8-232-030 | 1.97 | 2.07 | 1.89 | 0.65 | 1.54 |
| 8-232-038 | 2.56 | 2.99 | 2.28 | 0.79 | 1.42 |
| 8-232-050 | 2.81 | 3.17 | 2.34 | 0.98 | 1.61 |
| 8-232-078 | 3.43 | 3.66 | 3.23 | 1.18 | 2.09 |
| 8-232-125 | 4.29 | 4.38 | 3.87 | 1.42 | 2.40 |
| 8-232-200 | 4.61 | 3.8 | 1.20 | 1.42 | 3.00 |
| ITEM NO. | TECHNICAL PARAMETERS/MM | |||||
| F | G | H | R | S | SW | |
| 8-232-010 | 3.17 | 2.28 | 0.9 | 0.67 | 5/16 | 3/4 |
| 8-232-020 | 4.61 | 3.54 | 1.42 | 1.06 | 3/8 | 15/16 |
| 8-232-030 | 4.61 | 3.54 | 1.42 | 1.06 | 1/2 | 1 1/8 |
| 8-232-038 | 6.02 | 4.25 | 1.73 | 1.34 | 5/8 | 1 1/1 |
| 8-232-050 | 6.38 | 4.92 | 1.73 | 1.46 | 5/8 | 1 1/2 |
| 8-232-078 | 8.07 | 5.83 | 2.44 | 1.79 | 7/8 | 1 7/8 |
| 8-232-125 | 9.92 | 7.4 | 3.07 | 2.22 | 1 | 2 1/4 |
| 8-232-200 | 9.93 | 7.71 | 3.35 | 2.38 | 1 1/4 | 3 |
