8-292k Unc Thread Yoke Eye Type Rotary Point With Stopplate
8-292k Unc Thread Yoke Eye Type Rotary Point With Stopplate Drawing 8-292k Unc Thread Yoke Eye Type Rotary Point With Stopplate Parameters ...
Loading product images...

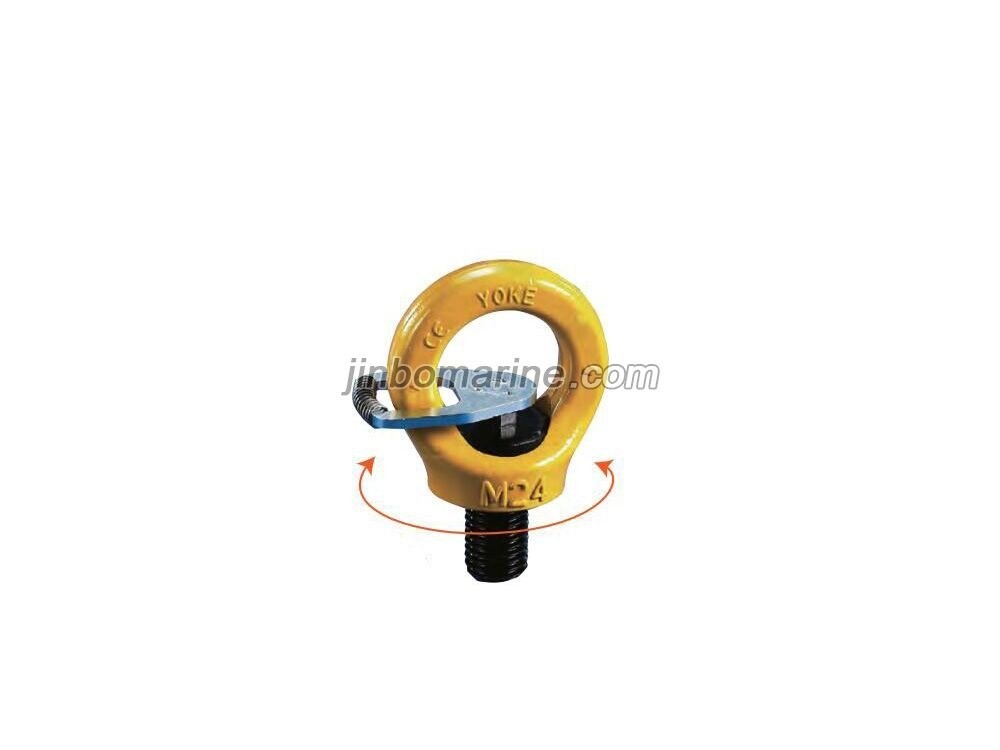

8-292k Unc Thread Yoke Eye Type Rotary Point With Stopplate
PDF Datasheet
We can supply according to your requirement.

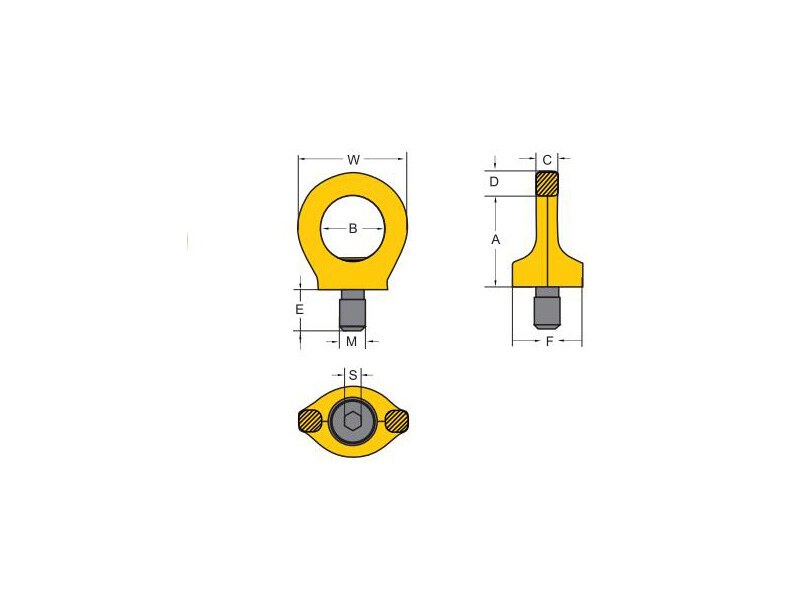

8-292k Unc Thread Yoke Eye Type Rotary Point With Stopplate Drawing
8-292k Unc Thread Yoke Eye Type Rotary Point With Stopplate Parameters
| ITEM NO. | WLL/T | TPI | WEIGHT/KG | |
| X | (Z) | |||
| 8-292K-003 | 0.3 | (1) | 5/16-18UNC | 0.2 |
| 8-292K-004 | 0.4 | (1) | 3/8-16UNC | 0.2 |
| 8-292K-007 | 0.75 | (2) | 1/2-13UNC | 0.4 |
| 8-292K-015 | 1.5 | (4) | 5/8-11UNC | 0.7 |
| 8-292K-023 | 2.3 | (6) | 3/4-10UNC | 1.3 |
| 8-292K-025 | 2.3 | (6) | 7/8-9UNC | 1.3 |
| 8-292K-032 | 3.2 | (8) | 1-8UNC | 2.2 |
| 8-292K-045 | 4.5 | (12) | 1 1/4-7UNC | 4.0 |
| 8-292K-070 | 7.0 | (16) | 1 1/2-6UNC | 7.0 |
| 8-292K-090 | 9.0 | (24) | 1 3/4-5UNC | 11.0 |
| 8-292K-120 | 12.0 | (32) | 2-4.5UNC | 16.7 |
| ITEM NO. | TECHNICAL PARAMETERS/MM | |||
| A | B | C | D | |
| 8-292K-003 | 1.42 | 0.98 | 0.31 | 0.35 |
| 8-292K-004 | 1.42 | 0.98 | 0.31 | 0.35 |
| 8-292K-007 | 1.77 | 1.18 | 0.39 | 0.43 |
| 8-292K-015 | 2.05 | 1.38 | 0.55 | 0.51 |
| 8-292K-023 | 2.36 | 1.57 | 0.63 | 0.59 |
| 8-292K-025 | 2.36 | 1.57 | 0.63 | 0.59 |
| 8-292K-032 | 2.84 | 1.89 | 0.75 | 0.71 |
| 8-292K-045 | 3.54 | 2.36 | 0.94 | 0.87 |
| 8-292K-070 | 4.29 | 2.83 | 1.14 | 1 |
| 8-292K-090 | 4.84 | 3.23 | 1.34 | 1.26 |
| 8-292K-120 | 5.67 | 3.7 | 1.50 | 1.46 |
| ITEM NO. | TECHNICAL PARAMETERS/MM | |||
| E | F | S | W | |
| 8-292K-003 | 0.47 | 0.98 | 0.25 | 1.73 |
| 8-292K-004 | 0.57 | 0.98 | 0.25 | 1.73 |
| 8-292K-007 | 0.75 | 1.3 | 0.31 | 2.05 |
| 8-292K-015 | 0.94 | 1.38 | 0.37 | 5.4 |
| 8-292K-023 | 1.13 | 1.73 | 0.50 | 2.76 |
| 8-292K-025 | 1.31 | 1.73 | 0.50 | 2.76 |
| 8-292K-032 | 1.50 | 2.05 | 0.56 | 3.31 |
| 8-292K-045 | 1.88 | 2.36 | 0.63 | 4.13 |
| 8-292K-070 | 2.25 | 2.99 | 0.87 | 4.96 |
| 8-292K-090 | 2.63 | 3.46 | 1.00 | 5.79 |
| 8-292K-120 | 3.00 | 4.09 | 1.00 | 6.61 |
