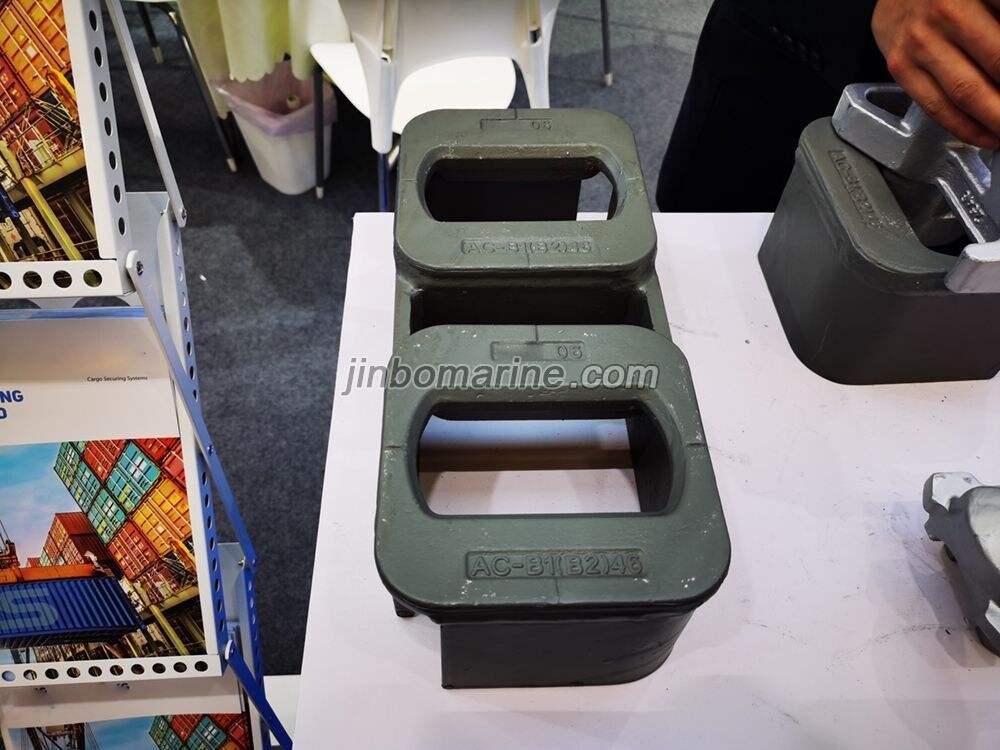

AC-B2D Double Raised Foundation

Category: Dovetail Plates Foundations
Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
FOB Price: Get Latest Price Now
Warranty: 12 Months unless specified otherwise
Place of Origin: China
Request a Quote PDF Datasheet

We can supply according to your requirement.

China AC-B2D Double Raised Foundation:

Material:structural steel

Finish:shop primer

Center distance have 203mm, 216mm and 258mm available.

Type H Weight
AC-B2/D/203/110 110 12.4kg
AC-B2/D/216/110 110 12.6kg
AC-B2/D/247/110 110 13.3kg
LOADS SHEAR (kN0 TENSION (kN)
BREAKING LOAD 420 500
SAFE WORKING LOAD 210 250

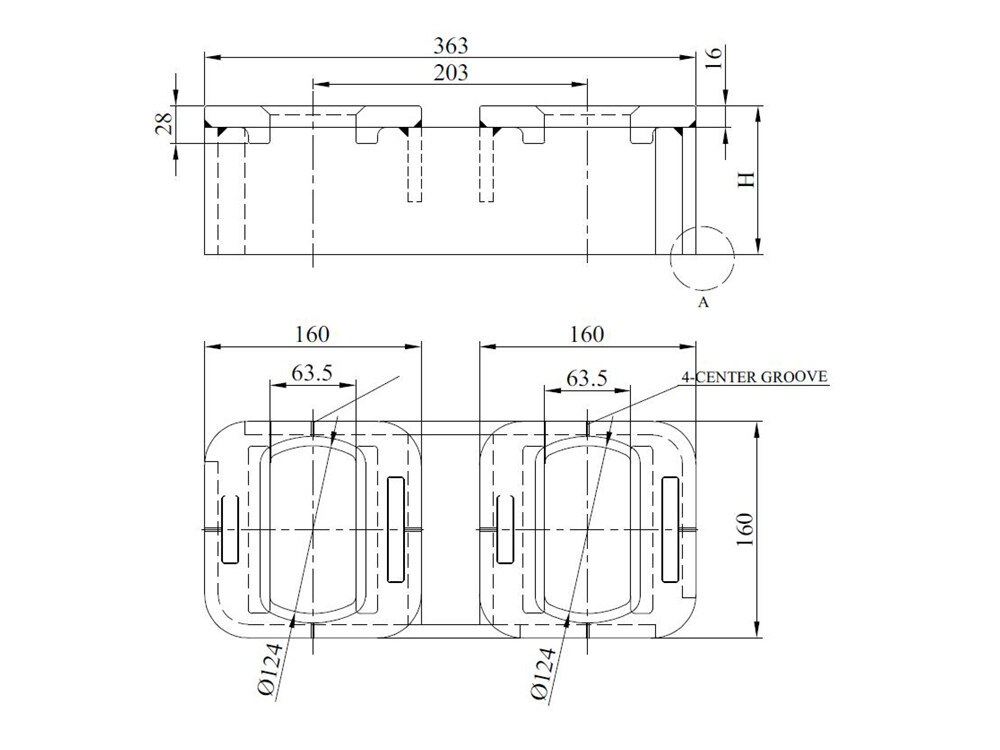

AC-B2/D/203/110 Drawing

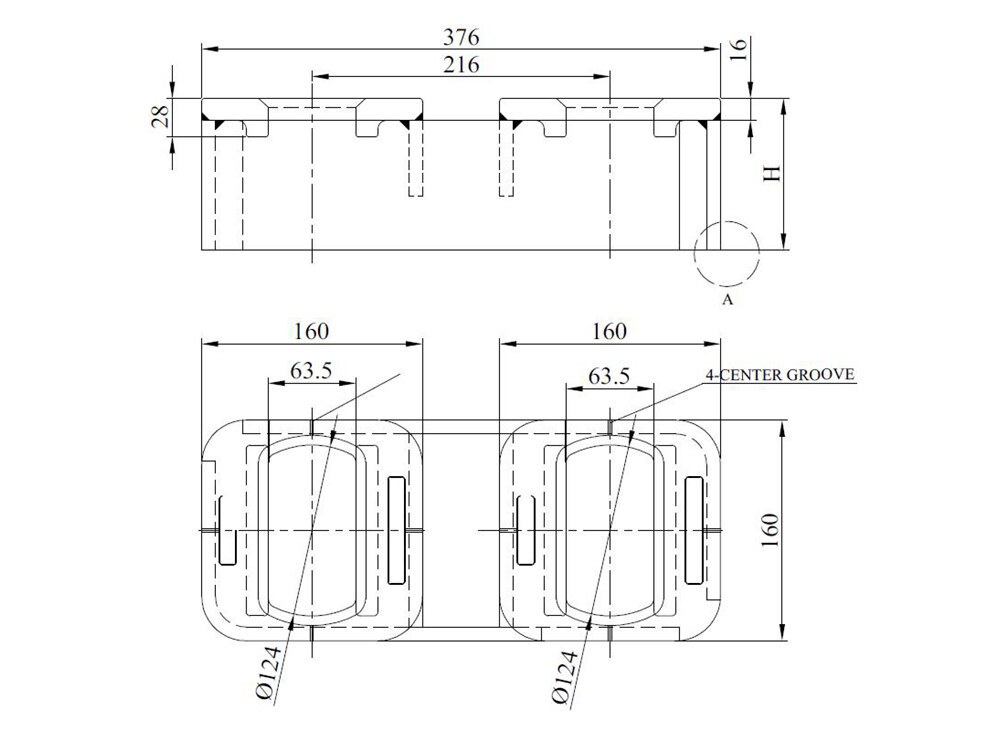

AC-B2/D/216/110 Drawing

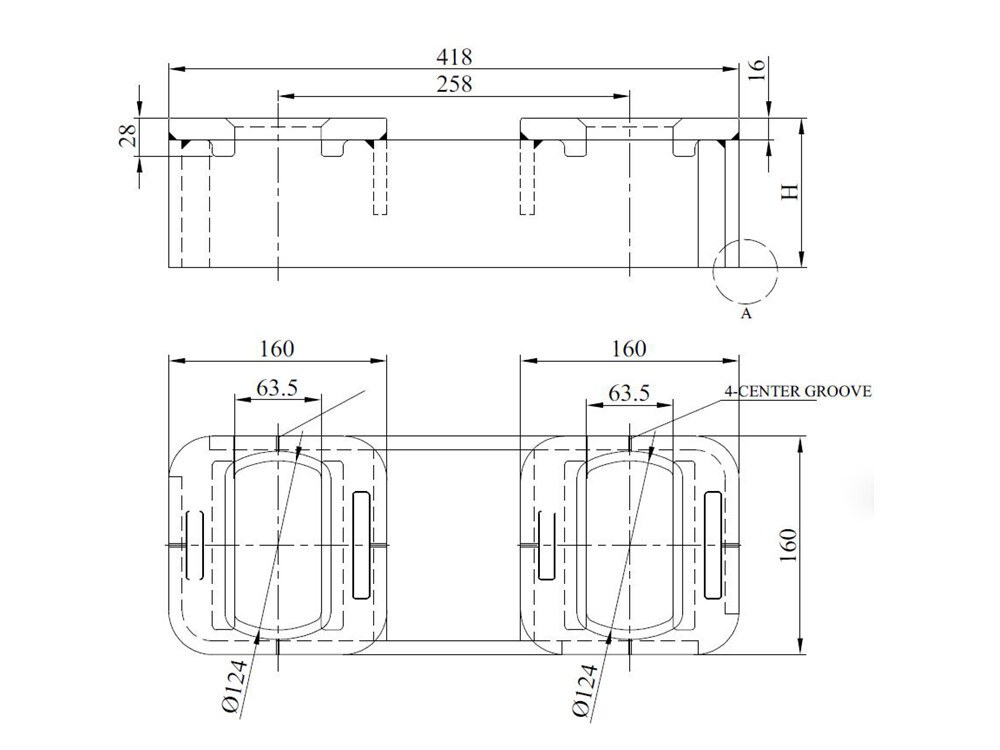

AC-B2/D/258/110 Drawing
