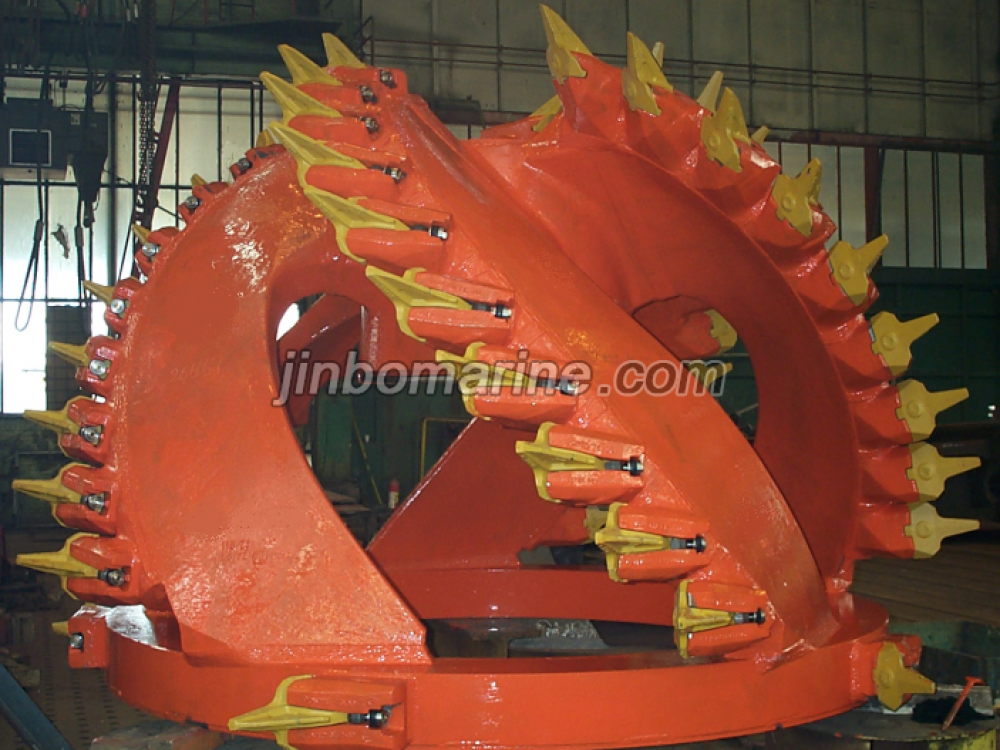

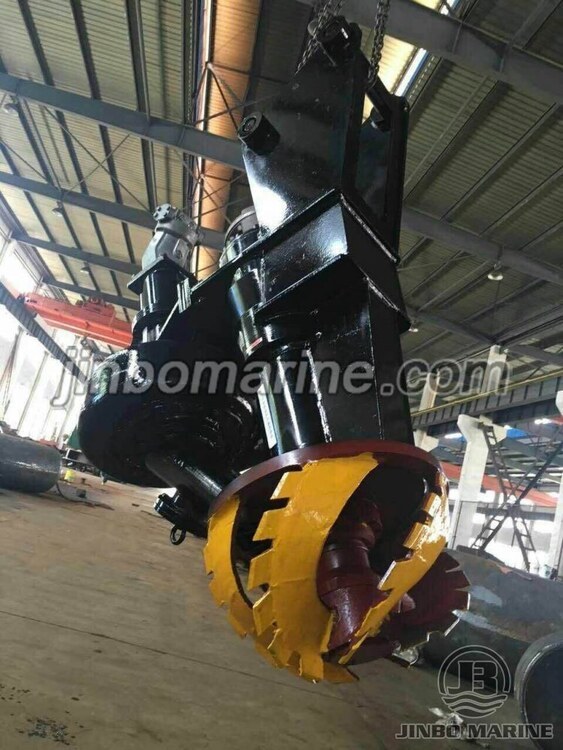

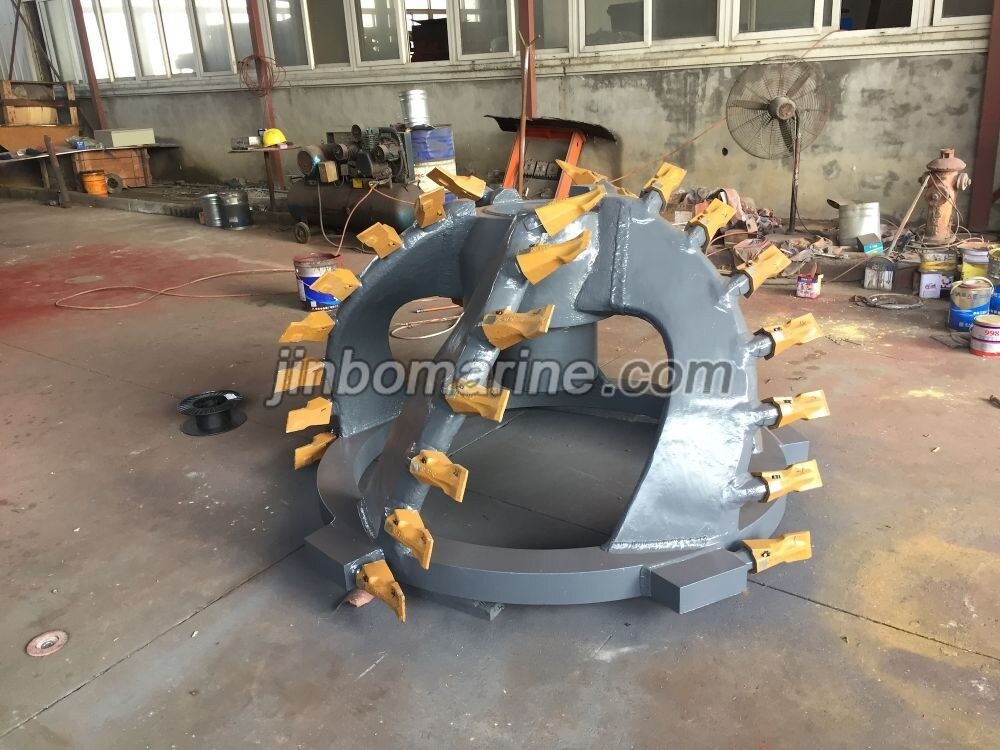

CSD Advance Dredging Cutter Head
Techinical Specification Material: 30Mn-Mn13 Power: 35KW to 6000KW Strong Digging Force Size and Drawing Dia of suction p...
Loading product images...
CSD Advance Dredging Cutter Head
PDF Datasheet
We can supply according to your requirement.
Techinical Specification
Material: 30Mn-Mn13
Power: 35KW to 6000KW
Strong Digging Force

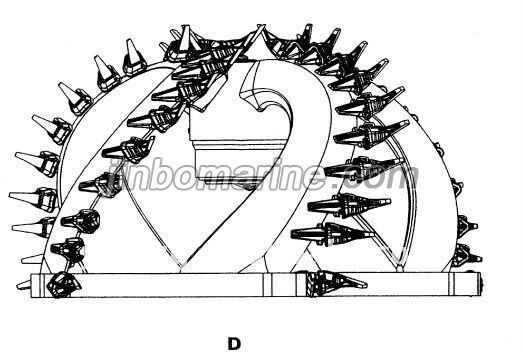

Size and Drawing
| Dia of suction pipe | Inner dia(mm) | Rotated speed(rpm) | Remer arm No |
| 250-300 | 830 | 0-34 | 5 |
| 350-400 | 955 | 0-35 | 5 |
| 350-400 | 955 | 0-30 | 5 |
| 400-450 | 1330 | 0-30 | 5 |
| 500-550 | 1550 | 0-30 | 5 |
| 600-650 | 1750 | 0-32 | 5 |
| 600-650 | 1750 | 0-30 | 5 |
| 600-650 | 1750 | 0-24 | 5 |
| 600-650 | 1830 | 0-30 | 5 |
| 650-700 | 2000 | 0-30 | 5 |
| 700-750 | 2150 | 0-30 | 6 |
| 800-850 | 2260 | 0-30 | 6 |
| 850-900 | 2330 | 0-30 | 6 |
| 900-950 | 2400 | 0-30 | 6 |
We also can supply as per your request.
