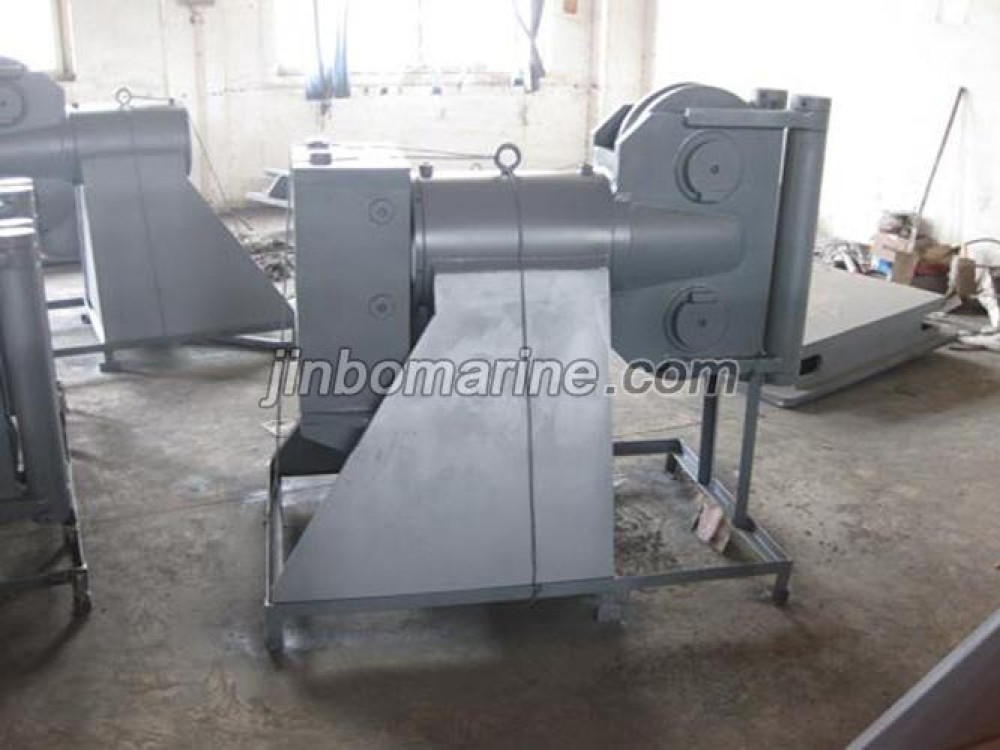

AF-39 Marine Flange Mounted Balanced Head Anchor Fairlead
Feature: 1.Excellent quality. 2.Competitive price . 3.Durable, long lifetime. Fairlead is a device to change the cable direction used for guiding ropes in ship moor...
AF-39 Marine Flange Mounted Balanced Head Anchor Fairlead
PDF Datasheet
We can supply according to your requirement.
Feature:
1.Excellent quality.
2.Competitive price .
3.Durable, long lifetime.
Fairlead is a device to change the cable direction used for guiding ropes in ship mooring and will not breakdown.
Provide CCS , BV , LR , BV etc Certificate
Customized service is available, Advanced equipment ,Strong consciousness in controlling quality
Material:ZG230-450,Q235
Surface: Blasting,Epoxy.
Machining facilities :CNC center, CNC lathes, ultrasonic wave cleaning,etc
Good wear and corrosion resistance
We can supply fairlead, roller according to JISF, DIN and GB standards. We can also make these products according to buyer's drawings.

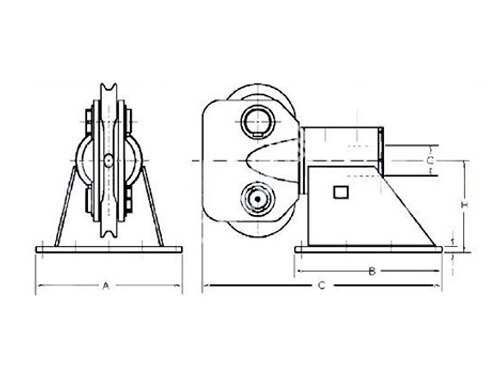

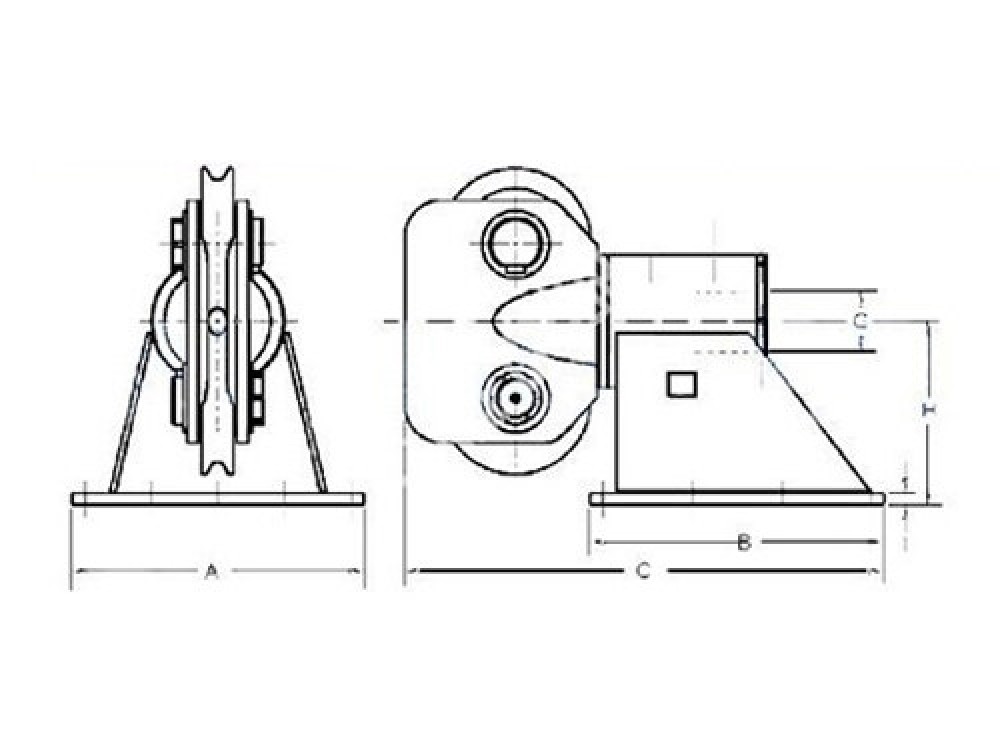

Size chart:
| Anchor Fairlead AF-39 | |||||||||
| Wire Rope Dia. | Sheave Dia.(mm) | Dimension(mm) | Mass Weight | ||||||
| mm | inch | A | B | C | T | H | G | kg | |
| 25 | 1" | 254 | 559 | 356 | 651 | 20 | 292 | 90 | 367 |
| 32 | 1-1/4" | 305 | 711 | 508 | 862 | 30 | 343 | 100 | 612 |
| 38 | 1-1/2" | 406 | 762 | 762 | 1233 | 40 | 459 | 150 | 918 |
| 44 | 1-3/4" | 508 | 1067 | 914 | 1503 | 50 | 546 | 190 | 1700 |
| 50 | 2 | 610 | 1219 | 1067 | 1775 | 50 | 648 | 220 | 2108 |
| 64 | 2-1/2" | 762 | 1372 | 1219 | 2103 | 60 | 800 | 250 | 2465 |
