Marine Equipment

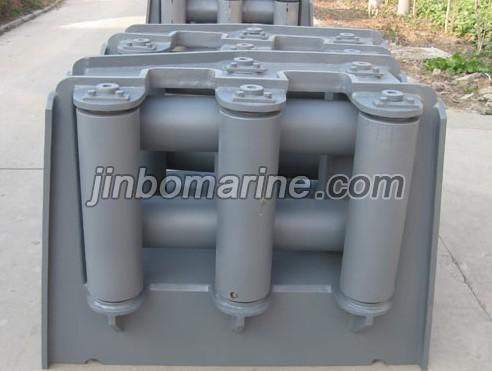

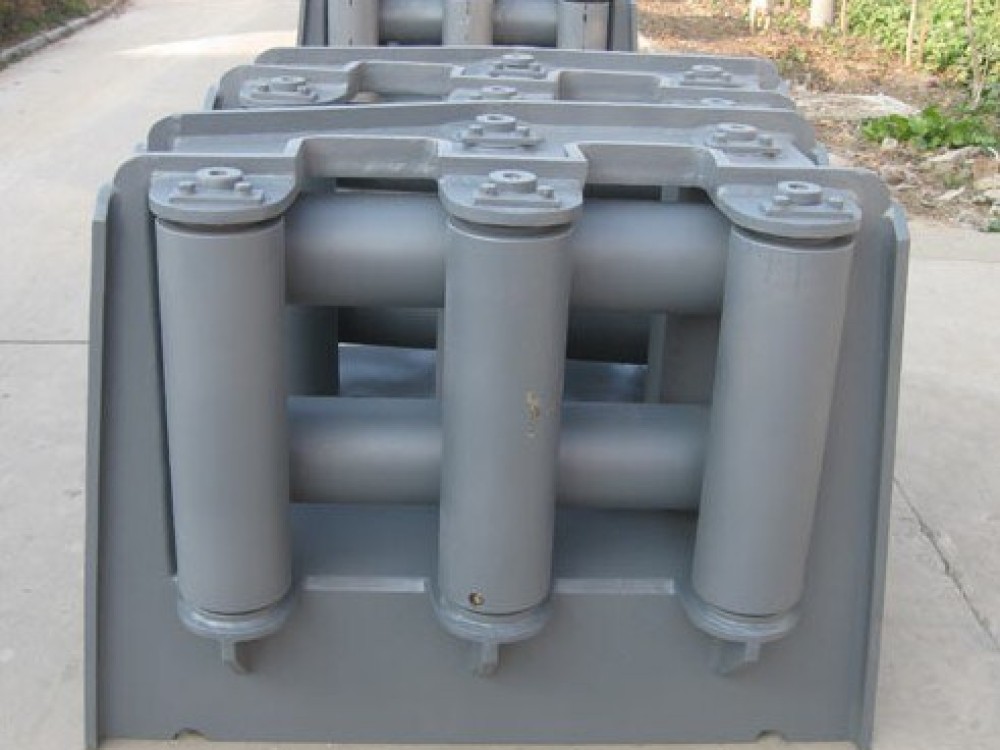

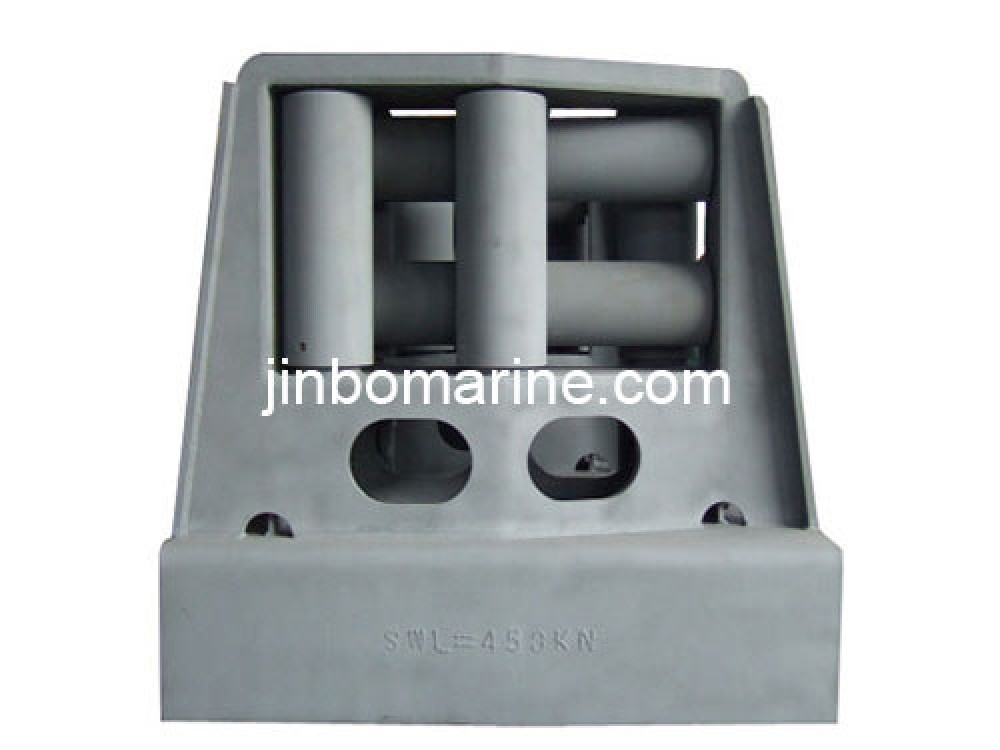

Saint Lawrence Fairlead
St.Lawrence fairlead Provide CCS , BV , LR , BV etc Certificate Customized service is available, Advanced equipment ,Strong consciousness in controlling quality ...
Loading product images...
PDF Datasheet
St.Lawrence fairlead
Provide CCS , BV , LR , BV etc Certificate
Customized service is available, Advanced equipment ,Strong consciousness in controlling quality
Material:ZG230-450,Q235
Surface: Blasting,Epoxy.
Machining facilities :CNC center, CNC lathes, ultrasonic wave cleaning,etc
Good wear and corrosion resistance
We can supply fairlead, roller according to JISF, DIN and GB standards. We can also make these products according to buyer's drawings.

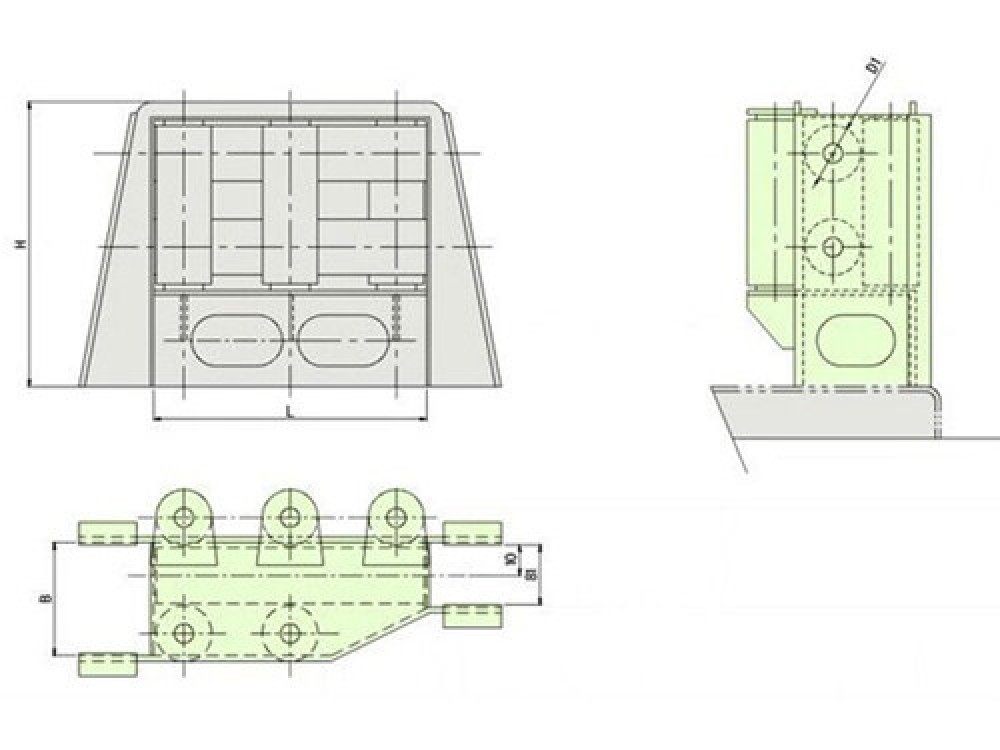

| Saint lawrence fairlead CB3139-1983 | ||||||||
| Product No. | Diameter of Roller | L | H | B | B1 | Weight | Diameter of Cable(mm) | |
| (D1) | (mm) | (mm) | (mm) | (mm) | (KG) | Tightwire | Nylon Rope | |
| SLF-001 | 140mm | 826 | 810 | 275 | 150 | 485 | 19.5 | 36 |
| SLF-002 | 160mm | 920 | 937 | 340 | 200 | 752 | 22.5 | 4 |
| SLF-003 | 190mm | 1002 | 1040 | 380 | 230 | 1080 | 26 | 45 |
| SLF-004 | 200mm | 1077 | 1119 | 435 | 255 | 1426 | 32.5 | 70 |
