Marine Equipment
ALFA LAVAL 30ton/day Plate Type Fresh Water Generator
Plate Type Fresh Water Generator: Plate Type Fresh Water Generator mainly consists of evaporating, condensing chamber, ejector equipped to achieve vacuum, fresh water pump for deliveri...

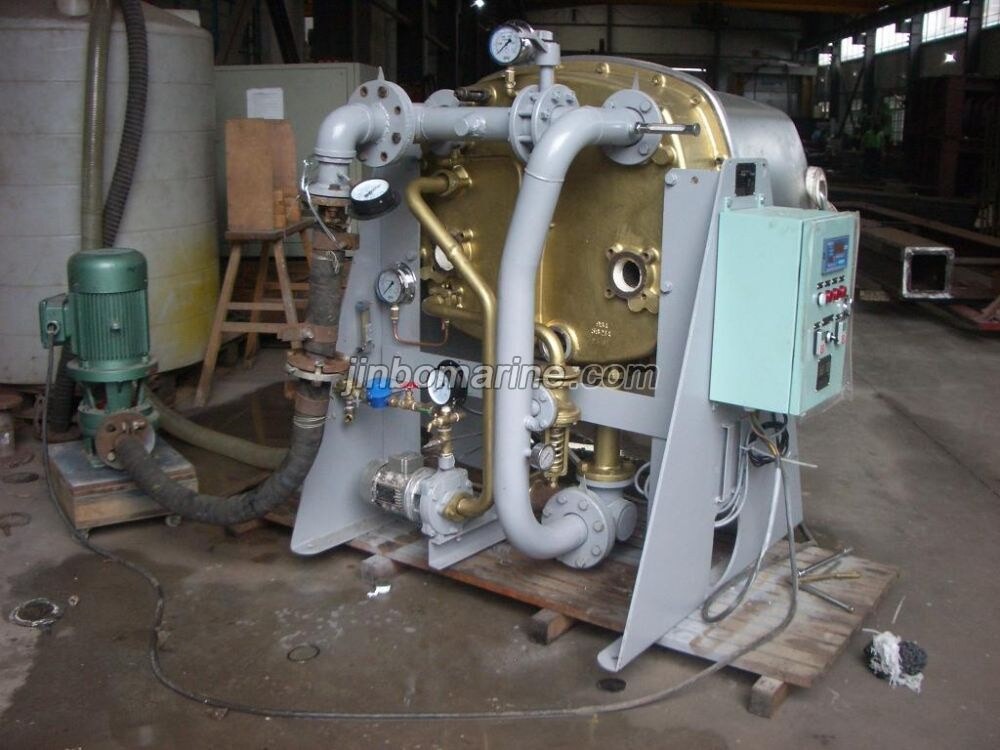

ALFA LAVAL 30ton/day Plate Type Fresh Water Generator
PDF Datasheet
We can supply according to your requirement.
Plate Type Fresh Water Generator:
Plate Type Fresh Water Generator mainly consists of evaporating, condensing chamber, ejector equipped to achieve vacuum, fresh water pump for delivering distilled water to storage tank. Heat exchanger is made of titanium. It's an energy-saving device because of using jacket water heat and lower boiling point of water in vacuum.
Features:
--High quality titanic plate for evaporator and condenser
--Highly compatible to variety heating sources as jacket water, steam and thermal oil
--Control cabinet with specialized salinity meter
--No moving part, less maintenance.
Technical Data:
| Type | Capacity(t/day) | Dimension LXWXH | Weight(kg) | Operation Weight(kg) |
| FWG-3 | 3 | 1295x915x980 | 390 | 550 |
| FWG-5 | 5 | 1295x965x980 | 400 | 550 |
| FWG-7 | 7 | 1295x1075x980 | 430 | 580 |
| FWG-8 | 8 | 1510x1025x1200 | 800 | 950 |
| FWG-10 | 10 | 1510x1075x1200 | 850 | 1050 |
| FWG-12 | 12 | 1710x1170x1420 | 900 | 1150 |
| FWG-15 | 15 | 1710x1170x1420 | 1000 | 1200 |
| FWG-18 | 18 | 1710x1270x1420 | 1200 | 1450 |
| FWG-20 | 20 | 1710x1270x1420 | 1250 | 1480 |
| FWG-25 | 25 | 1710x1385x1420 | 1320 | 1500 |
| FWG-30 | 30 | 1720x1250x1740 | 1400 | 1550 |
