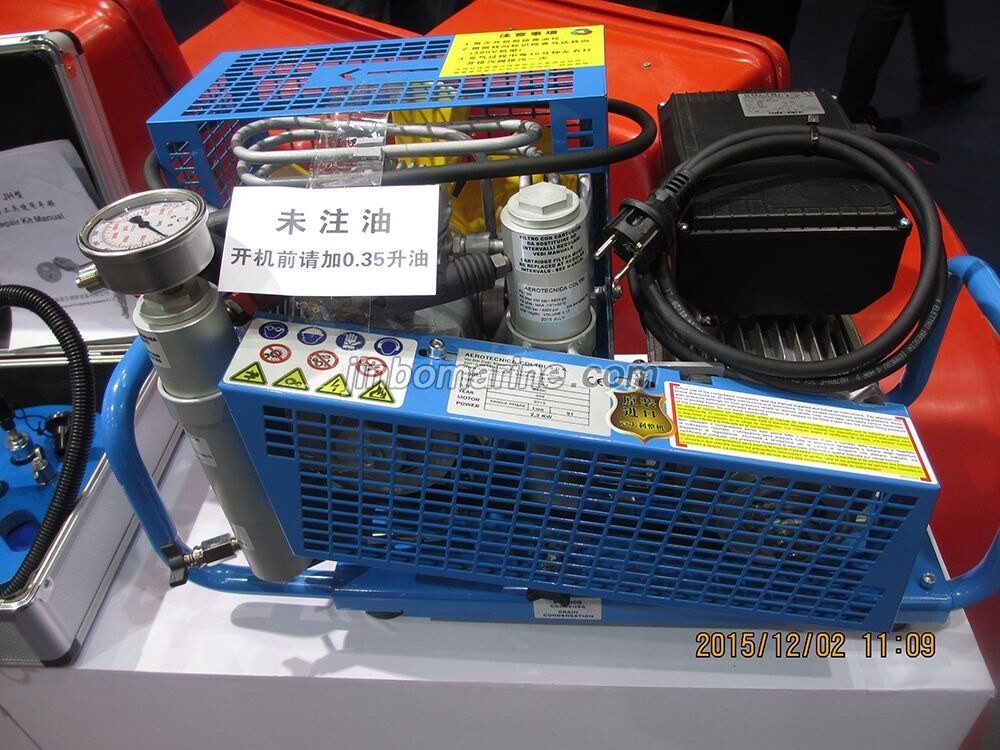

Air Breathing Apparatus Inflator Pump
With automatic shutdown feature, enabling charging process unattended, to provide you with greater security. Feature: MCH6 series of breathing air compressor is the industry's small...
Air Breathing Apparatus Inflator Pump
PDF Datasheet
We can supply according to your requirement.
China Air Breathing Apparatus Inflator Pump:
With automatic shutdown feature, enabling charging process unattended, to provide you with greater security.
Feature:
MCH6 series of breathing air compressor is the industry's smallest,Lightest portable breathing air compressors, the petrol-driven engine only 37KG, you can easily put it into the trunk of a car, maneuvering to use site for fire, diving, shooting, emergency rescue, chemical, oil and other leading domain, with easy to move, easy to operate, and the compression manufacturing digh-pressure air line with EU EN 12021 standards.Structure:
Optional gasoline engine, three-phase, single phase electric drive motor, V belt drive four-cylinder
four-pole high-pressure compressor
Stainless steel interstage cooler
installed on the compressor 00bar pressure gauge
1.2 m high pressure pneumatic hose, pneumatic fittings needed to configure your Stainless steel fan cover
two oil-water separator, two drain valve (optional automatic sewage)
carbon molecular sieve filtration system
reaches the set pressure is automatically shut down to prevent frequent start valve jump to protect the personal safety.
| MCH6 type Mobile portable breathing air inflator compressors | |||
| Model | MCH6/et | MCH6/em | MCH6/sh |
| Working pressure | Firefighting : 300 Bar 30Mpa 4300 Psi Diving :225Bar 22.5 Mpa 3300 Psi | ||
| Charging rate | 100L/min 6m3/H 3.5CFM | 80L/min 4.8m3/H 2.8CFM | 100L/min 6m3/H |
| Filling time cylinder | 6.8L 0-300 bar/ 20.4 min | 6.8L 0-300 bar / 25.5 min | 6.8L 0-300 bar / 20.4 min |
| 12L 0-200 bar/ 24 min | 12L 0-200 bar / 30 min | 12L 0-200 bar / 24 min | |
| Driven by | Three-phase electric motor | Single-phase electric motor | Honda petrol engine |
| power | 3 Kw | 2.2 Kw | 3.6 Kw / 5.5Hp |
| Noise pressure | 83 dB | 81.7 dB | 87.5 dB |
| Dry weight | 39 Kg / 85 lbs | 39 .5Kg / 87 lbs | 37 .5Kg / 81.5 lbs |
| dimensions | Height 35cm | Height 35cm | Height 35cm |
| width 65cm | width65cm | Width 78cm | |
| depth 39cm | depth 39cm | depth 32cm | |
| Breathing air standards | EN 12021 DIN 3188 CAG E | ||
