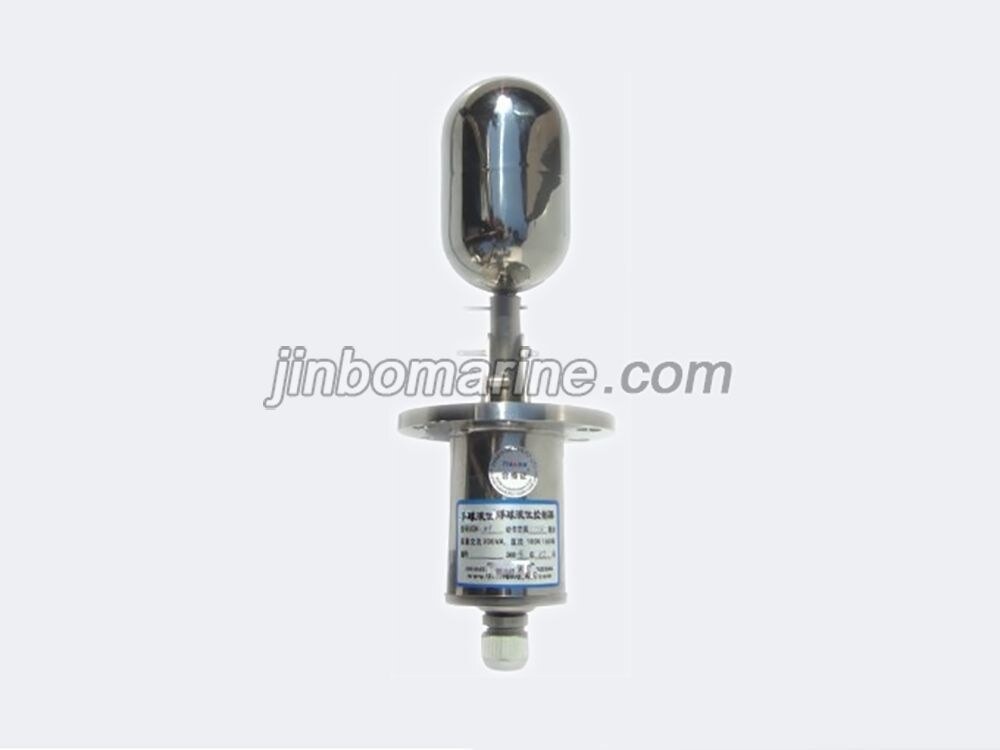

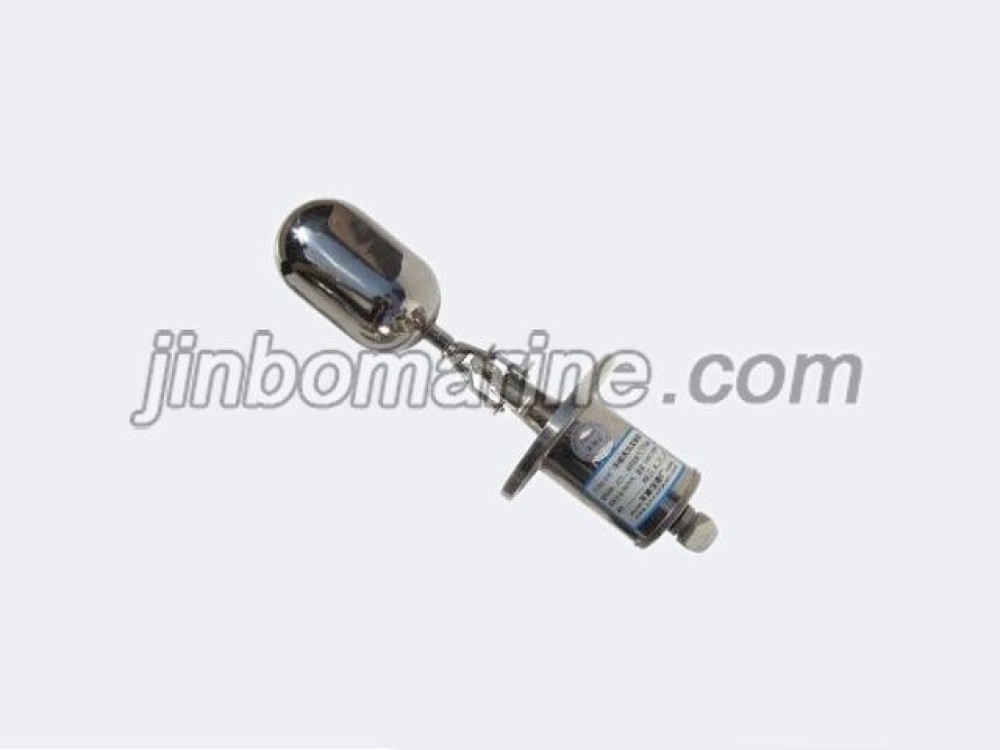

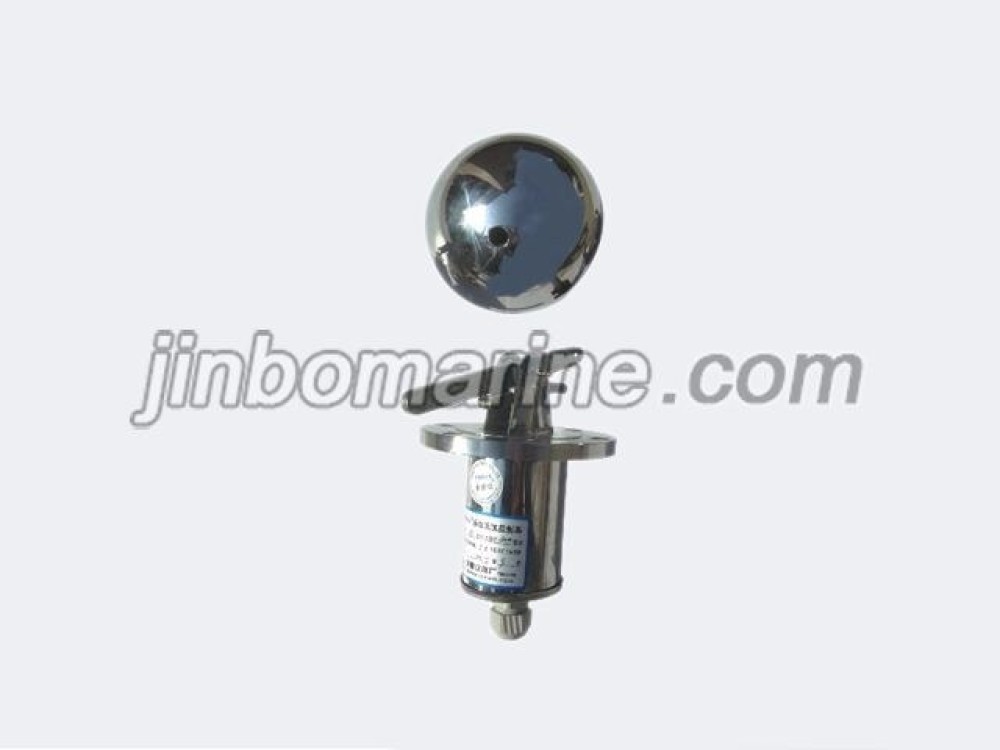

UQK Stainless Steel Ball Float Level Controller
UQK stainless steel ball float level controller can adjust liquid level in barrel, trough or well. It can adjust the level switch in barrel, trough or well automatically. It’s easy to operat...
UQK Stainless Steel Ball Float Level Controller
We can supply according to your requirement.
China UQK Stainless Steel Ball Float Level Controller:
UQK stainless steel ball float level controller can adjust liquid level in barrel, trough or well. It can adjust the level switch in barrel, trough or well automatically. It’s easy to operate and install. And it’s safe, reliable, environmental, non – poison and recuperable. This ball float level controller has an effect on resist sewage. It is widely used in the pool in household, factories and mines, used in the pool of oil, acid and alkali and used in barrel, trough and jar.
Specification:
| Model | Limit of action (mm) | Way of setting | Way of Installation |
| UQK-01 | 0~10mm | Nonadjustable | Horizontal |
| UQK-02 | 25~550mm | With class adjustment | Horizontal |
| UOK-03 | 8~1000mm | Without class adjustment | Vertical |
| Working Pressure | 1MPa (Cu), 1MPa (aluminium), | ||
| 1.6MPa(Stainless steel ) | |||
| Working Temperature | ≤150℃(Room temperature) | ||
| ≤400℃(High temperature) | |||
| Power and contact capacity | AC: 220V, 220W | ||
| DC: 100V,150W | |||
