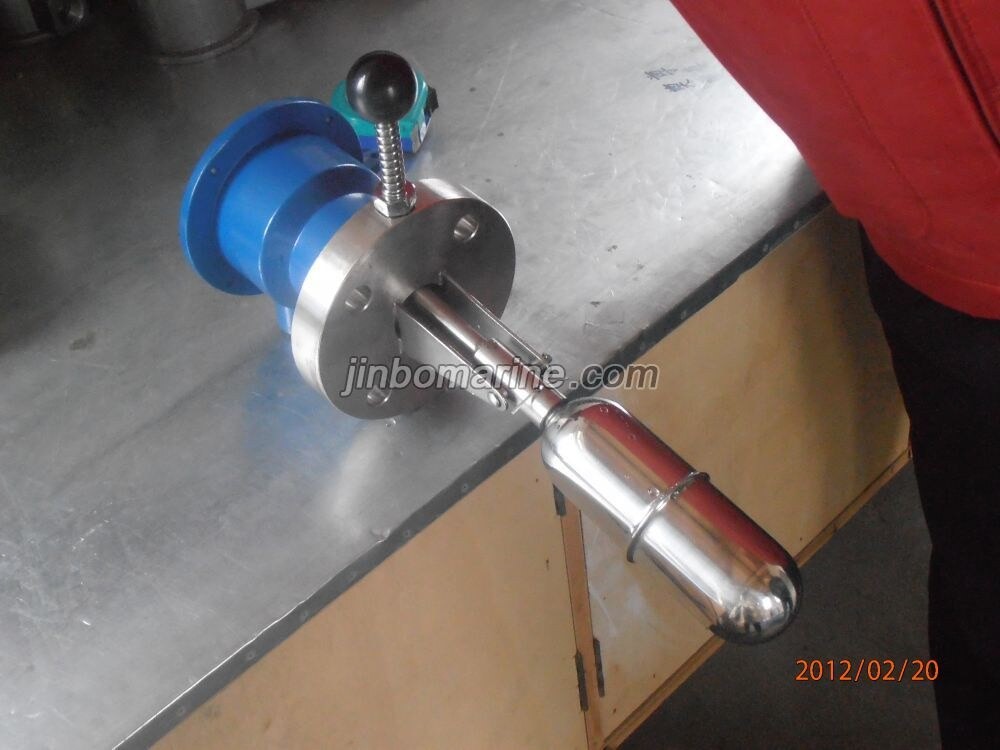

Marine Level Switch UQK-01 with Test Handle
Product Specification: Marine Float Level Controller UQK-01 is widely used in the ship chemical industry and other industrial instrument to carry two place controlling and alarm to the...
Loading product images...
Marine Level Switch UQK-01 with Test Handle
PDF Datasheet
We can supply according to your requirement.
Product Specification:
Marine Float Level Controller UQK-01 is widely used in the ship chemical industry and other industrial instrument to carry two place controlling and alarm to the level in liquid tank.
| Model | Control range | Regulated type | Mounting position | Contact capacity | Float diameter(mm) |
| UQK-01-C | 15~30 | Fixed value Unadjustable | Horizontal mounting | SPDT AC 220V 1.5A suit for 250VAC 10A DC125V 0.6A 2 x SPDT(optional | 50 60 76 |
| UQK-01-C-B | |||||
| UQK-01-C | 25~550 | Can be adjust by step | Top mounting | ||
| UQK-02-C | Horizontal mounting | 50 60 76 | |||
| UQK-02-C-B | |||||
| UQK-03-C | 8~1000 | Stepless,adjustable | Top mounting | 76 | |
| UQK-03-C-B |
Nominal pressure: ≤1Mpa
Medium temperature: ≤120℃
Explosion proof type: Ex d II CT3~T6, Ex ia II CT3~T5.
Protection: IP66 or IP68
Flange size is optional.

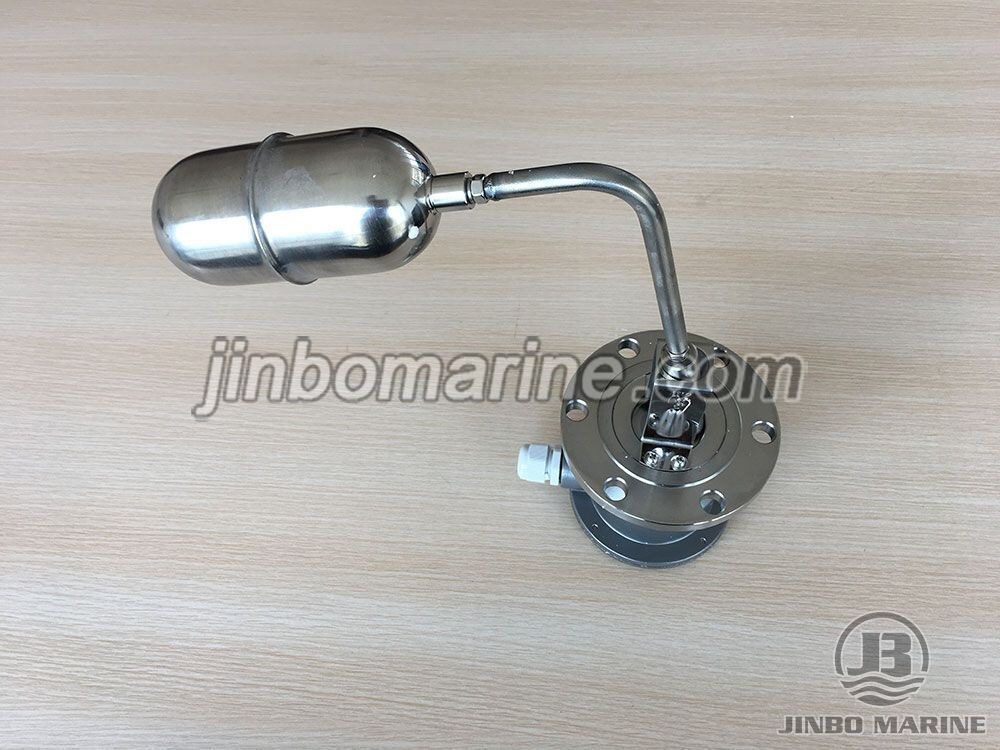

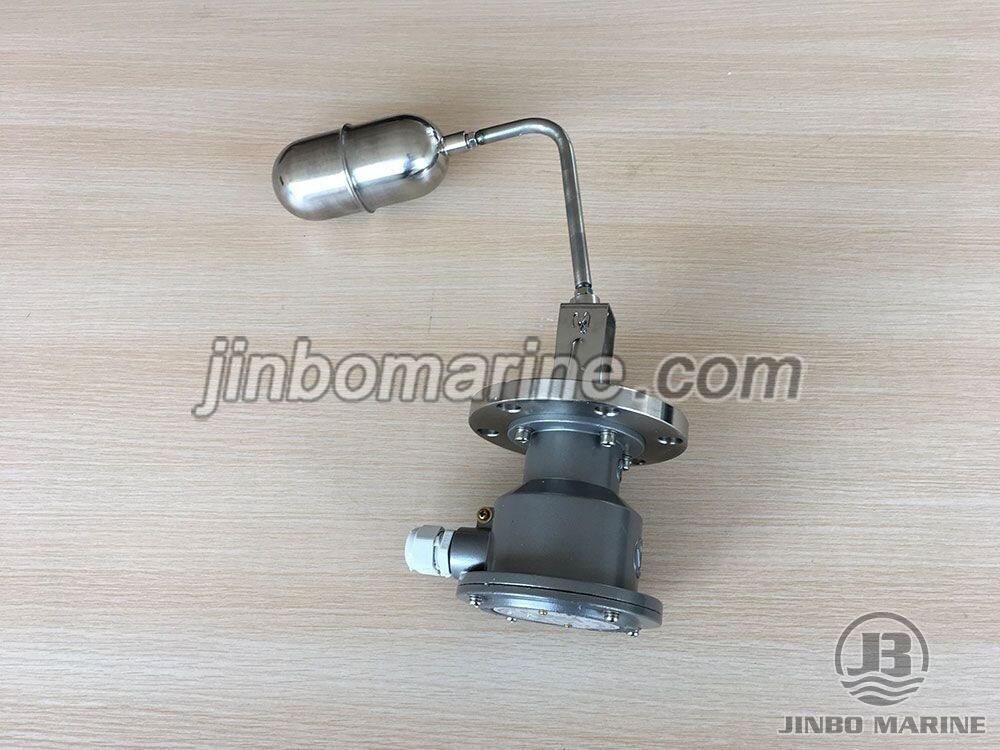

Side Mounting Type Float Level Controller:
