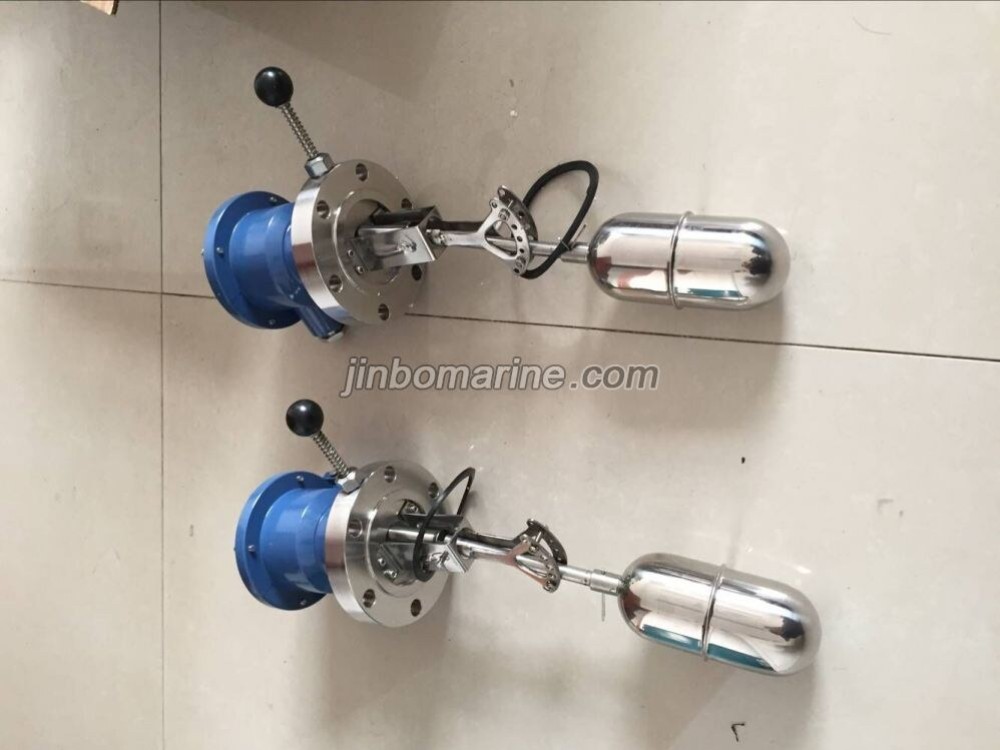

Marine Float Level Controller UQK-02 with Test Handle
Marine Float Level Controller UQK-02 is widely used in the ship chemical insutry and other other industrial intrument to carry two place ontrolling and alarm to the level in the li...
Marine Float Level Controller UQK-02 with Test Handle
PDF Datasheet
We can supply according to your requirement.
China Marine Float Level Controller UQK-02 with Test Handle:
Marine Float Level Controller UQK-02 is widely used in the ship chemical insutry and other other industrial intrument to carry two place ontrolling and alarm to the level in the liquid tank.
UQK-02 is installed horizontally.
Control range: 25-550mm
Nominal pressure: 1.0Mpa for UQK-02-C, 4.0Mpa for UQK-02-CB
Regulation type: adjustable with class
Flange material: Stainless Steel(UQK-02-C) or Bronze (UQK-02-CB)
Float material: stainless steel
Medium temperature: not over 150 degree centigrade
Power supply: AC 220V, 1.5A or 110V, 2.5A DC 240V,0.5A or 24V, 2.5A
Protection: IP66
Flang size as per the customer's requirement.
