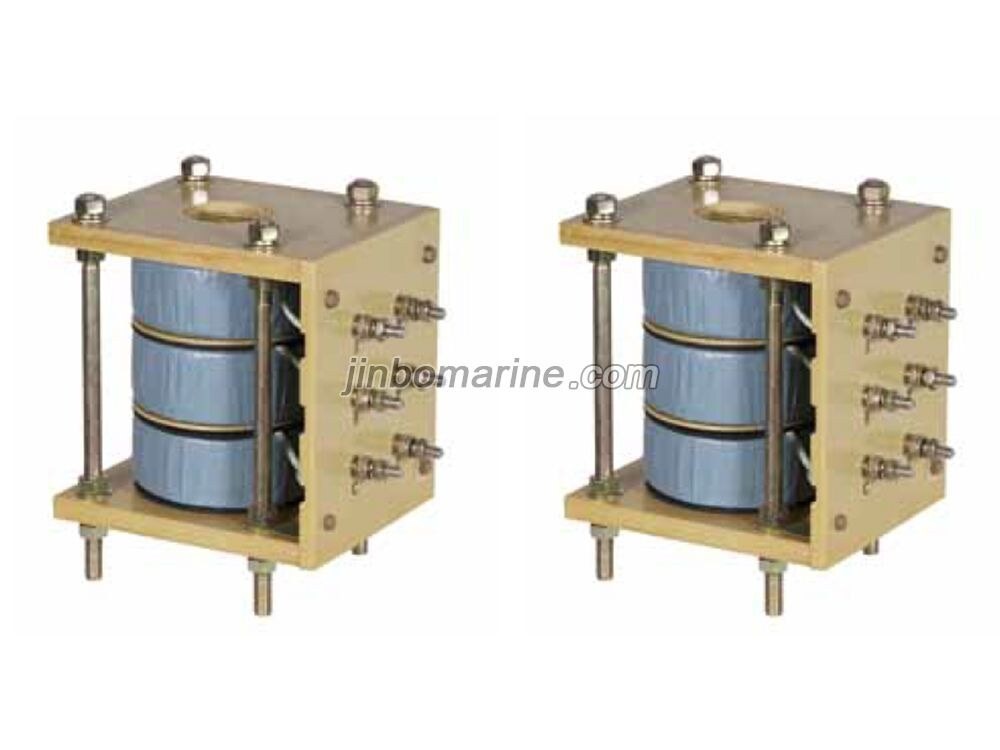

BDK-64 Series Marine Reactor

BDK reactor is mainly used for coarse synchronism running with three phase AC. diesel-dynamo of the same capacity in ship, and also can be used for coarse synchronism running with three phase AC. diesel-dynamo set of the same volume in land mobile power station and private station.
Two diesel-electric sets of the same volume which are required to parallel and sure to be running paralleled should finish the coarse synchronizing parallel under the condition of voltage difference ≤10%Um, frequency difference 1Hz (parallel-to-be set is higher than running set) and phase difference within the scope of 180° when parallel-to-be set runs in no-load, its maximum switching current should be less than double rated current of generator set, and the operating time of reactor should not exceed 5 seconds.

A height above sea-level not exceeding 1000m;
A temperature of ambient air not below -25℃ and above +45℃；
Relative air humidity: ≤95%；
Be influenced by dew ,oil and salt vapor ,molds;
There are vibrating ,colliding ,during ships transporting；
Swing with angle up to 22.5 °，shopping with 15°or below during ships transporting.

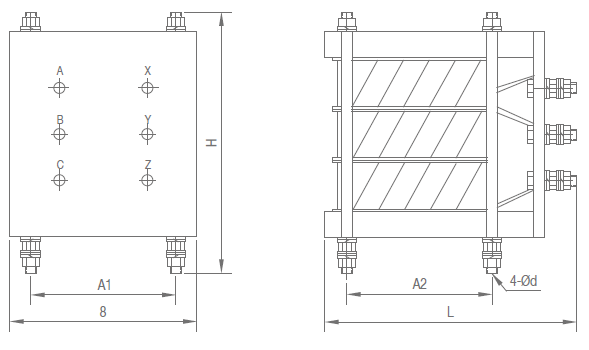

Reactor with air core is adopted for the series of this reactor.
Winding insulation is class B.
