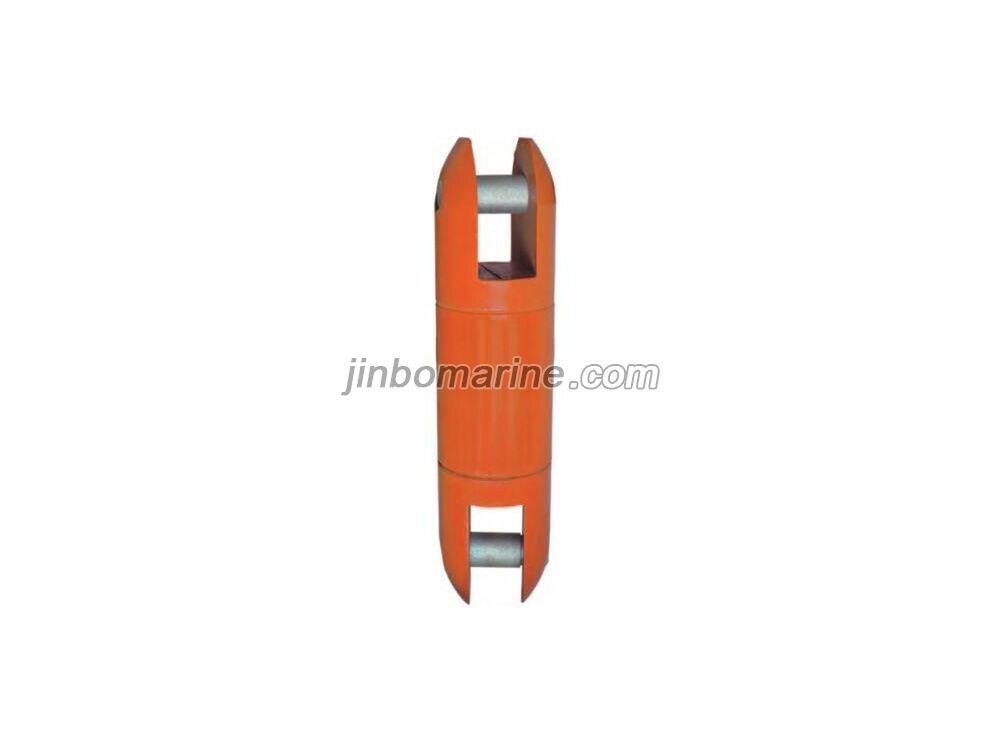

BLT087 Angular Contat Bearing Swivels-Bullet Style
PDF Datasheet
We can supply according to your requirement.

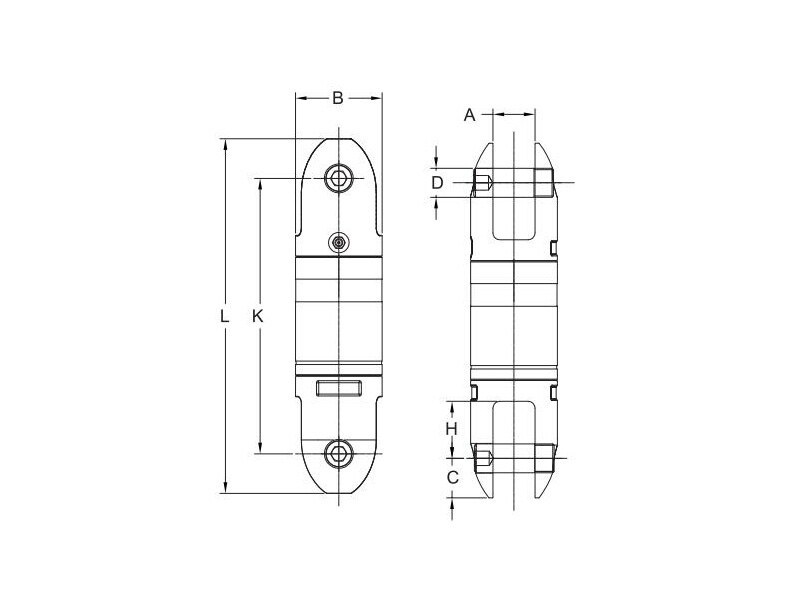

BLT087 Angular Contat Bearing Swivels-Bullet Style Drawing
BLT087 Angular Contat Bearing Swivels-Bullet Style Drawing
| ITEM NO. | SIZE | WLL/T | WEIGHT/KG | |
| BLT087-007 | 0.75 | 0.75 | 0.5 | |
| BLT087-015 | 1.5 | 1.5 | 0.8 | |
| BLT087-030 | 3 | 3 | 2 | |
| BLT087-050 | 5 | 5 | 3.9 | |
| BLT087-085 | 8.5 | 8.5 | 6.7 | |
| BLT087-100 | 10 | 10 | 18.6 | |
| BLT087-150 | 15 | 15 | 19.9 | |
| BLT087-250 | 25 | 25 | 36.5 | |
| BLT087-350 | 35 | 35 | 47.6 | |
| ITEM NO. | TECHNICAL PARAMETERS/MM | |||
| B | K | L | C | |
| BLT087-007 | 34 | 102 | 126 | 12 |
| BLT087-015 | 40 | 112 | 144 | 16 |
| BLT087-030 | 53 | 158 | 208 | 25 |
| BLT087-050 | 67 | 205 | 267 | 31 |
| BLT087-085 | 78 | 250 | 320 | 35 |
| BLT087-100 | 106 | 316 | 408 | 46 |
| BLT087-150 | 119 | 334 | 430 | 48 |
| BLT087-250 | 137 | 403 | 525 | 61 |
| BLT087-350 | 154 | 426 | 548 | 61 |
| ITEM NO. | TECHNICAL PARAMETERS/MM | |||
| A | D | H | ||
| BLT087-007 | 15 | 10 | 22 | |
| BLT087-015 | 18 | 12 | 26 | |
| BLT087-030 | 23 | 16 | 32 | |
| BLT087-050 | 32 | 22 | 37 | |
| BLT087-085 | 37 | 25 | 50 | |
| BLT087-100 | 42 | 38 | 53 | |
| BLT087-150 | 48 | 38 | 56 | |
| BLT087-250 | 62 | 51 | 69 | |
| BLT087-350 | 62 | 51 | 69 | |
