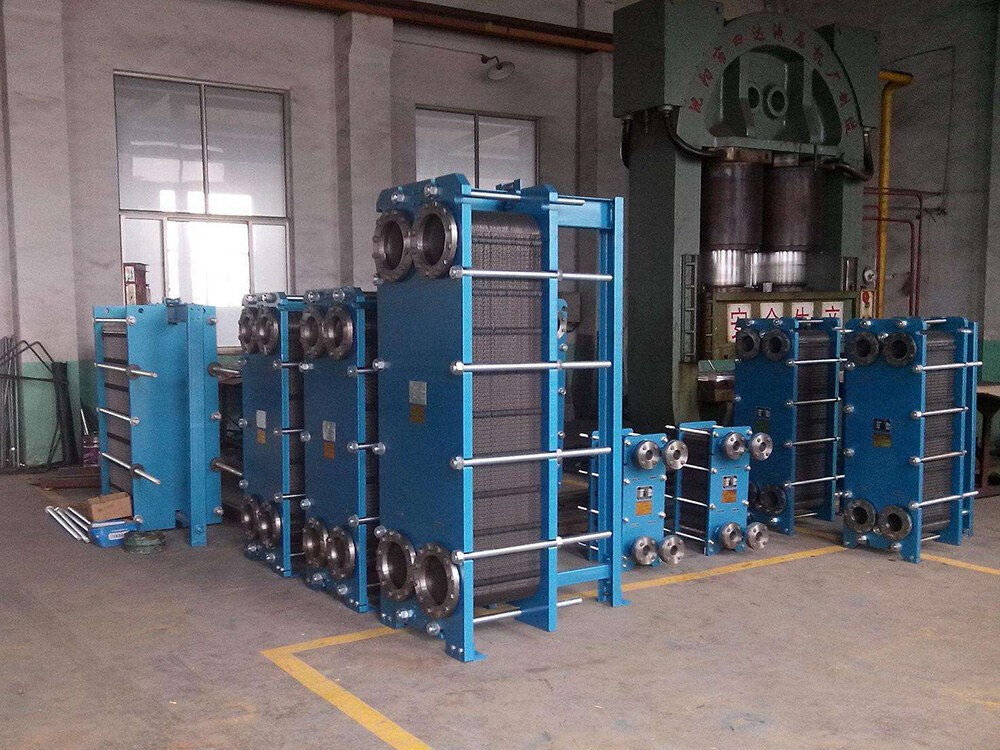

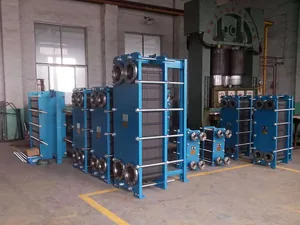

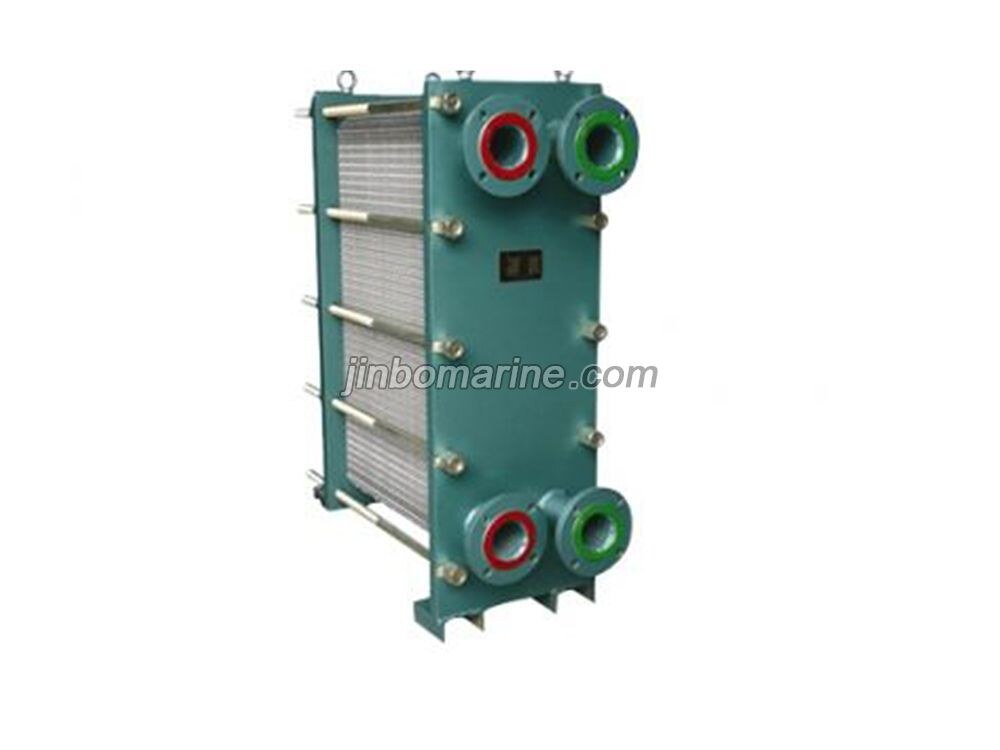

BR0.35 Plate Heat Exchanger
BR0.35 plate heat exchanger design concept: The plate with a new pressurized diversion zone design greatly improves the heat transfer efficiency of plate, reduce dead angle, im...
BR0.35 Plate Heat Exchanger
PDF Datasheet
We can supply according to your requirement.
BR0.35 plate heat exchanger design concept:
The plate with a new pressurized diversion zone design greatly improves the heat transfer efficiency of plate, reduce dead angle, improve the scale of the plate. All the sealing gaskets are made of free form, which reduces the cost of operation and maintenance and is easy to maintain.
Technical data:
The dimension of the plate is mm3：1218*390*0.6
The monolithic heat transfer area is M2：0.35
Plate spacing mm：3.9
The cross-sectional area of single channel is M2：0.00142
The maximum processing capacity was mm3/h：30-150
Flange diameter DNmm：100
The working temperature℃ ≤180
Working pressure Mpa：0.6,1.0
Angle hole diameter mm：100
Size:
B=395 C=1190 F=150 E=218 B1=485 H=1315 R=11
| No: | Total heat transfer area m2 | Number of plates (sheets) | L(mm) | D | A | A1 | Weight(kg) |
| 1 | 15 | 45 | 198 | 538 | 378 | 765 | 470/501 |
| 2 | 16 | 47 | 207 | 547 | 387 | 775 | 476/508 |
| 3 | 18 | 53 | 233 | 573 | 413 | 825 | 494/527 |
| 4 | 20 | 59 | 260 | 600 | 440 | 835 | 511/546 |
| 5 | 22 | 65 | 286 | 626 | 466 | 920 | 528/564 |
| 6 | 24 | 71 | 313 | 653 | 493 | 970 | 545/582 |
| 7 | 25 | 73 | 322 | 662 | 502 | 980 | 551/589 |
| 8 | 26 | 77 | 339 | 679 | 519 | 1015 | 563/600 |
| 9 | 28 | 81 | 356 | 696 | 536 | 1040 | 580/620 |
| 10 | 30 | 87 | 383 | 723 | 563 | 1085 | 590/633 |
| 11 | 35 | 101 | 444 | 784 | 624 | 1195 | 637/683 |
| 12 | 40 | 117 | 515 | 855 | 695 | 1320 | 677/726 |
| 13 | 45 | 131 | 576 | 916 | 756 | 1435 | 718/770 |
| 14 | 50 | 145 | 638 | 978 | 815 | 1545 | 758/814 |
