CD1-H/MD1-H Type Marine Electric Hoist
CD1-H/MD1-H electrical hoist is approved by the China ship inspection bureau, get certificate of “marine product type testing”. The hoist can work in the environment with relative humidity ≤...
Loading product images...

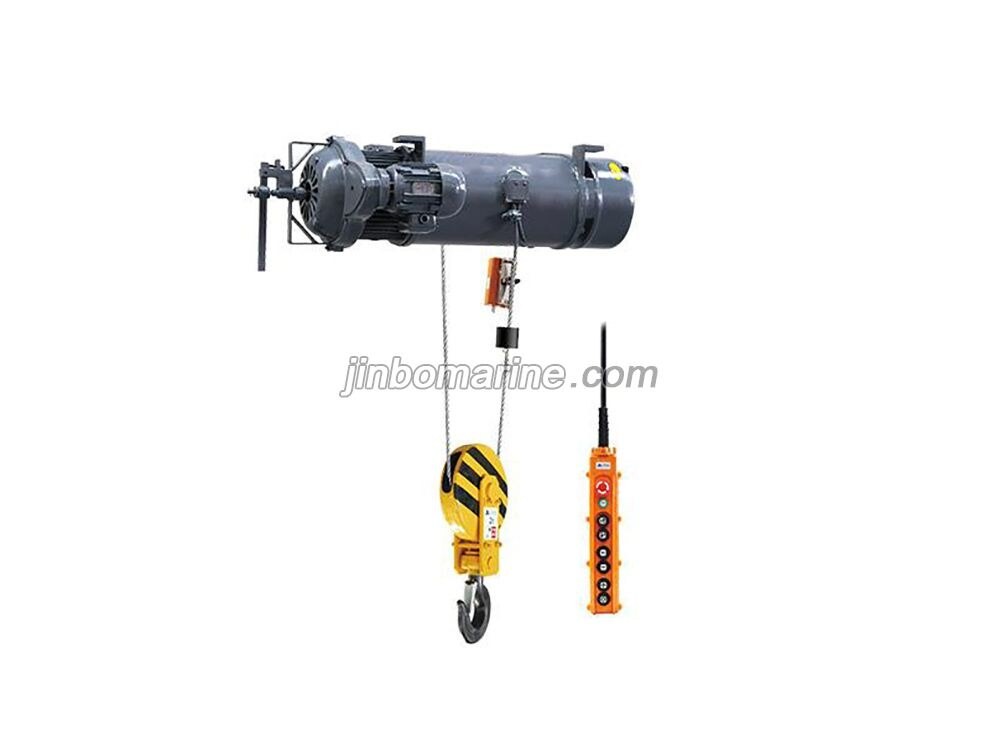

CD1-H/MD1-H Type Marine Electric Hoist
PDF Datasheet
We can supply according to your requirement.
China CD1-H/MD1-H Type Marine Electric Hoist:
CD1-H/MD1-H electrical hoist is approved by the China ship inspection bureau, get certificate of “marine product type testing”. The hoist can work in the environment with relative humidity ≤95% and the condition with oil mist, salt spray, mold, long-term heel and trim.
Product advantage
1. Special treatment for motor, with insulation class F, is available for the working conditions with oil mist, salt spray and mildew, etc.
2. Manual brake release can release the load safely in power-off case
3. Galvanized wire rope, hook pulley and panel
4. Double limit switch
5. Overload devices
6. Rack and pinion trolley, adapt the vibration and tilt environment
7. Over current, lose pressure and open-phase protection
2. Manual brake release can release the load safely in power-off case
3. Galvanized wire rope, hook pulley and panel
4. Double limit switch
5. Overload devices
6. Rack and pinion trolley, adapt the vibration and tilt environment
7. Over current, lose pressure and open-phase protection
Application range
Applied in marine industry, offering single-speed or double speed models. Mainly applied in below conditions:
Applied in cabin crane, used for ship motor maintenance, components replacements, as piston, etc.
Applied in cabin crane, used for ship motor maintenance, components replacements, as piston, etc.
Applied in deck crane, used for loading cargo and ship supplies .
CD1-H/MD1-H Type Marine Electric Hoist Technical Specifications
| Hoist type | CD1-H/MD1-H | |||||||
| Lifting capacity (ton) | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
| Maximum lifting height (m) | 18 m | 30 m | 30 m | 30 m | 30 m | 30 m | 16 m | 16 m |
| Working grade | M3 | |||||||
| CD1-H Lifting speed (m/min) | 8 | 8 | 7 | 3.5 | 3.5 | |||
| MD1-H Lifting speed (m/min) | 8/0.8 | 8/0.8 | 7/0.7 | 3.5/0.35 | 3.5/0.35 | |||
| CD1-H Lifting motor(kW) | 0.8 | 1.5 | 3 | 4.5 | 7.5 | 13 | ||
| MD1-H Lifting motor (kW) | 0.8/0.2 | 1.5/0.2 | 3.0/0.4 | 4.5/0.4 | 7.5/0.8 | 13.0/1.5 | ||
| Running motor(kW) | 0.4 | 0.4 | 0.8 | 0.8 | 1.5 | 2×1.5 | 2×1.5 | |
