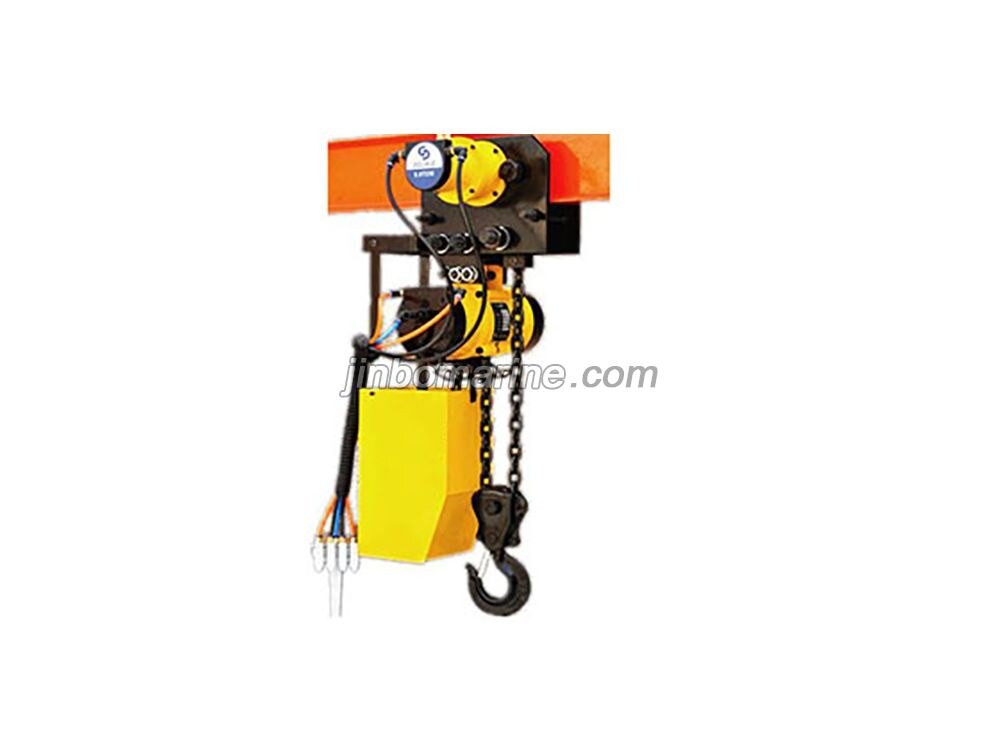

QDH Type Marine Explosion-proof Pneumatic Hoist
Pneumatic hoist is compressed air as the driving force to drive the pneumatic motor, after the speed change (deceleration) to increase torque after lifting the work The utility model...
QDH Type Marine Explosion-proof Pneumatic Hoist
PDF Datasheet
We can supply according to your requirement.
China QDH Type Marine Explosion-proof Pneumatic Hoist:
Pneumatic hoist is compressed air as the driving force to drive the pneumatic motor, after the speed change (deceleration) to increase torque after lifting the work
The utility model relates to a ship explosion-proof pneumatic hoist, which is mainly suitable for the exploitation of offshore oil fields and the daily transportation environment of an oil tanker, and has special requirements for corrosion protection of the sea and high temperature and low temperature.
Advantages
The acid and alkali resistance, steam, suitable for wet places.
The high temperature resistant and low temperature.
Is no spark, completely solve the problem of explosion-proof lifting equipment.
The small size and light weight, the weight of the same specifications for electric hoist.
The running speed is 2 ~ 3 times of electric hoist, and step less variable speed control.
A small tonnage pneumatic hoist system of 100%, for the high efficiency continuous operation to create the necessary conditions.
QDH Type Marine Explosion-proof Pneumatic Hoist Technical Specifications
| Type | Lifting capacity | Lifting height | Maximum lifting speed | Maximum descent speed | Wind pressure | Maximum gas consumption | Reference weight |
| （t） | （m） | （m/min） | （m/min） | （M Pa） | （m3/min） | （kg） | |
| QDH1.0S | 1 | 0—20 | 4 | 7 | 0.6 | 1.2 | 24 |
| QDH1.0D | 1 | 0—20 | 4.8 | 8 | 0.6 | 1.4 | 30 |
| QDH2.0S | 2 | 0—20 | 2.4 | 4 | 0.6 | 1.4 | 36 |
| QDH2.5D | 2 | 0—20 | 1.8 | 3.5 | 0.6 | 1.8 | 50 |
| QDH3.0S | 3 | 0—20 | 1.7 | 3.5 | 0.6 | 2.2 | 36 |
| QDH3.0D | 3 | 0—20 | 1.7 | 2.7 | 0.6 | 1.6 | 35 |
| QDH5.0S | 5 | 0—20 | 0.75 | 1.5 | 0.6 | 2.5 | 55 |
| QDH5.0D | 5 | 0—20 | 1.6 | 2.5 | 0.6 | 3.4 | 90 |
| QDH6.0S | 6 | 0—20 | 0.75 | 1.3 | 0.6 | 2.5 | 55 |
| QDH6.0D | 6 | 0—20 | 1.4 | 2.7 | 0.6 | 3.4 | 110 |
| QDH10.0-4D | 10 | 0—20 | 0.35 | 0.8 | 0.6 | 2.9 | 140 |
| QDH10.0S | 10 | 0—20 | 0.8 | 1.25 | 0.6 | 3.4 | 150 |
| QDH10.0D | 10 | 0—20 | 1.2 | 2.1 | 0.6 | 4.7 | 160 |
| QDH12.0S | 12 | 0—20 | 0.7 | 1.35 | 0.6 | 3.4 | 150 |
| QDH12.5D | 12.5 | 0—20 | 1 | 2 | 0.6 | 4.7 | 160 |
| QDH16.0-3D | 12.5 | 0—20 | 0.5 | 1 | 0.6 | 3.4 | 180 |
| QDH20.0-4D | 16 | 0—20 | 0.35 | 1.1 | 0.6 | 3.4 | 190 |
| QDH25.0-4D | 25 | 0—20 | 0.35 | 0.9 | 0.6 | 3.4 | 240 |
| QDH25.0S | 25 | 0—20 | 0.5 | 1 | 0.6 | 4.7 | 240 |
| QDH32.0-3D | 32 | 0—20 | 0.4 | 0.9 | 0.6 | 4.7 | 280 |
| QDH50.0-4D | 50 | 0—20 | 0.25 | 0.5 | 0.6 | 4.7 | 350 |
