CFK Series Marine Water Cooled Split Air Conditioner
Description: CFK series marine water cooled split air conditioner is the cooling device, which can condition the air in chamber directly and composed by one marine water cooled conde...
CFK Series Marine Water Cooled Split Air Conditioner
PDF Datasheet
We can supply according to your requirement.
Description:

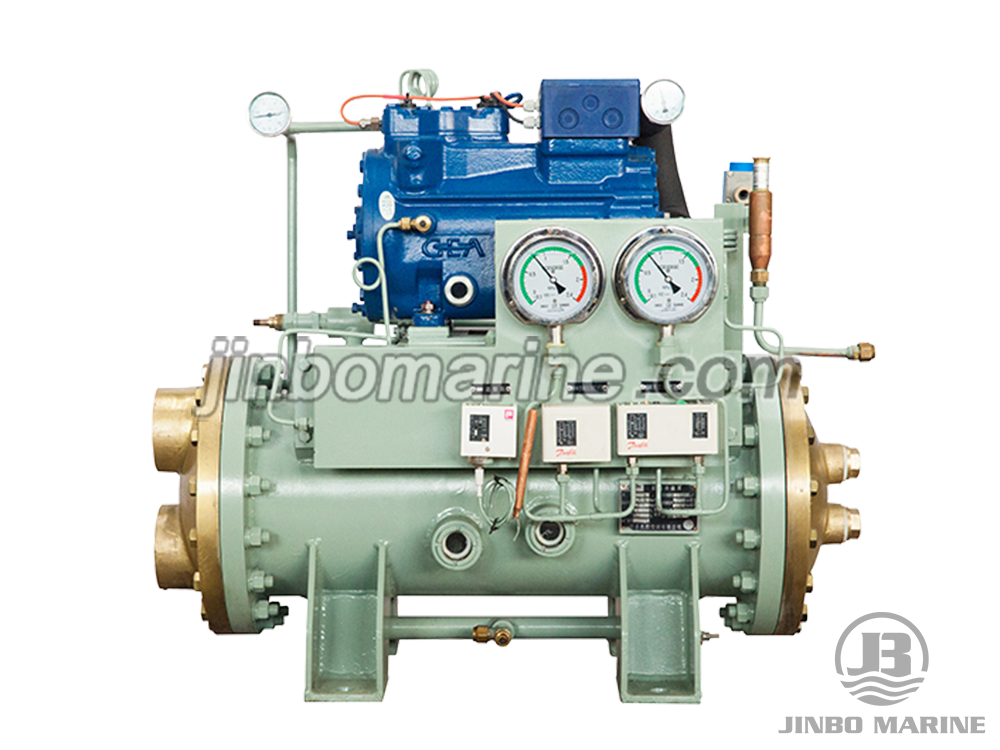

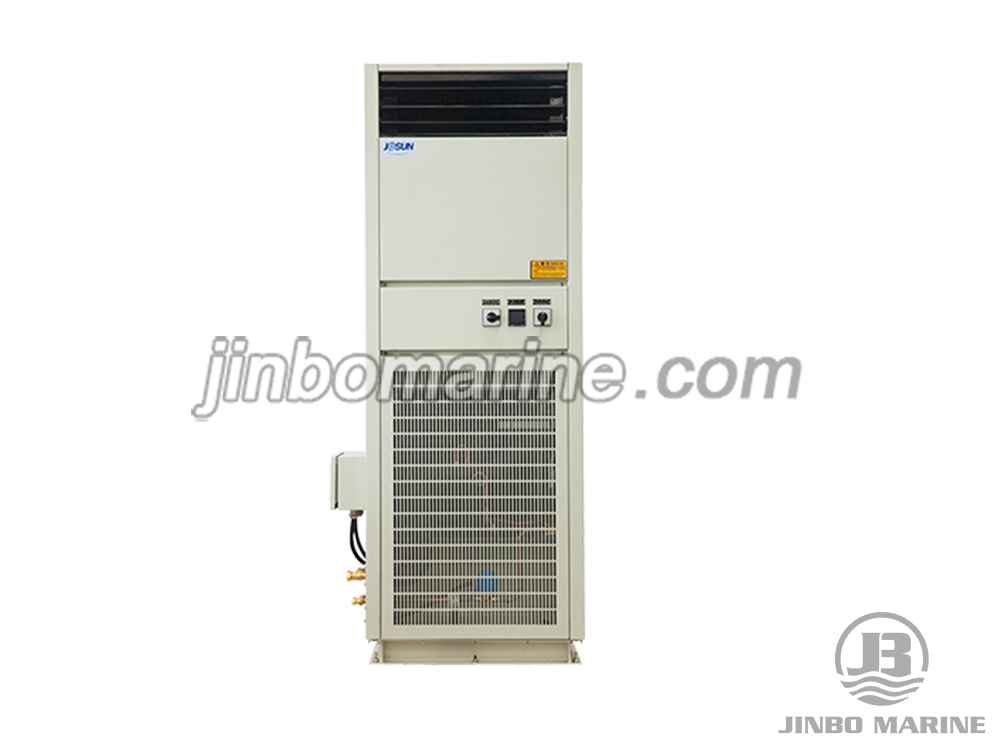

CFK series marine water cooled split air conditioner is the cooling device, which can condition the air in chamber directly and composed by one marine water cooled condensing unit and all kinds of air handling units. The unit has features of new-design, easy-operation, stable-working, safety and convenient-maintaining etc. They are widely applied for all kinds of passenger ships, cargo ships and oil platforms etc.
1. Mainly composed by compressor, condenser, direct evaporator and fan etc
2. Choosing imported name brand refrigeration compressor
3. Main controls are imported famous brand
4. Condenser is anticorrosiveHAL77-2 or BFe30-1-1high efficient heat transferring pipe, which can protect ship swinging from flow-stop
5. Pressure test, vacuum test and running test have been done before delivery
6. Ready for operation after connected with pipe and power source
7. Design, manufacture and inspection comply with relative“CCS”and“navy”standards 8. Special design and manufacture can be done upon user's Requirement
Technical data:
| Model | CFK-3 | CFK-4 | CFK-5 | CFK-6 | CFK-7 | CFK-8 | CFK-10 | ||
| Cooling capacity | KW | 3 | 4 | 5 | 6 | 7 | 8 | 10 | |
| Heating capacity | KW | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | |
| Cooling medium | R407C | ||||||||
| Heating type | electric heating tube with stainless steel fin or light tube | ||||||||
| Power supply | Main circuit | AC 380V 3φ 50Hz AC 440V 3φ 60Hz | |||||||
| Control circuit | AC 220V 1φ 50Hz/ AC 220V 1φ 60Hz | ||||||||
| Protection devices | Freon high pressure、freon low pressure、water stop、super heat、 lack phase、overload、safety valve | ||||||||
| Compressor | Type | Hermetic scroll | |||||||
| Motor power | KW | 1.4 | 1.8 | 1.8 | 1.8 | 2 | 2.4 | 2.9 | |
| Condenser | Type | horizontal shell & tube and can condense and receive liquid efficiently | |||||||
| Water inlet temp | ℃ | ≤32 | |||||||
| Water flow | m3/h | 1.5 | 1.5 | 2.5 | 2.5 | 2.6 | 3 | 3.7 | |
| Water pressure loss | Kpa | ≤30 | |||||||
| Dia.of inlet and outlet water | mm | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | |
| Evaporator | Copper tube with copper（Al）fin | ||||||||

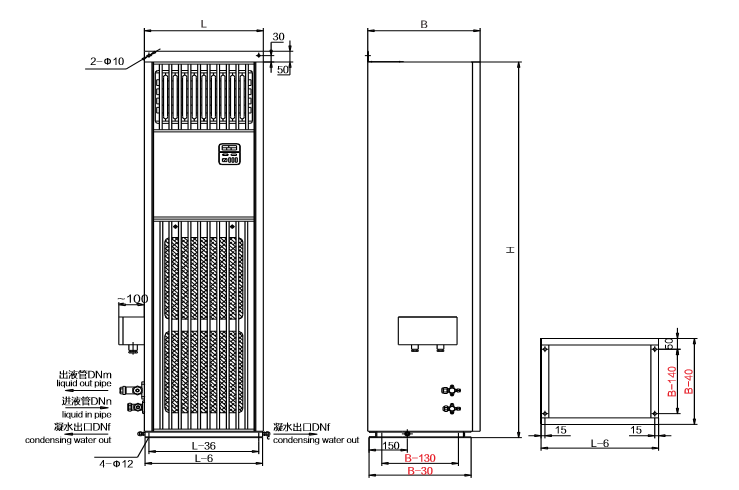

| Dimension | Indoor unit | mm | 466x440x1750 | ||||||
| Outdoor unit | mm | 650x450x700 | 750x500x1000 | 850x500x100 | |||||
| Indoor unit Weight | kg | 90 | 95 | 105 | 108 | 112 | 116 | 120 | |
| Outdoor unit Weight | kg | 165 | 165 | 190 | 195 | 210 | 220 | 240 | |
| Indoor unit noise | dB(A) | ≤50 | ≤50 | ≤50 | ≤55 | ≤55 | ≤60 | ≤60 | |
| Outdoor unit noise | dB(A) | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | |
| Model | CFK-10(II) | CFK-12(II) | CFK-15(II) | CFK-20(II) | ||
| Type of unit | one outdoor unit two indoor units | |||||
| Cooling capacity | KW | 10 | 12 | 15 | 20 | |
| Heating capacity | KW | 5 | 6 | 7.5 | 10 | |
| Cooling medium | R407C | |||||
| Heating type | electric heating tube with stainless steel fin or light tube | |||||
| Power supply | Main circuit | AC 380V 3φ 50Hz AC 440V 3φ 60Hz | ||||
| Control circuit | AC 220V 1φ 50Hz/ AC 220V 1φ 60Hz | |||||
| Protection devices | Freon high pressure、freon low pressure、water stop、super heat、 lack phase、overload、safety valve | |||||
| Compressor | Type | Hermetic scroll | ||||
| Motor power | KW | 3.4 | 3.7 | 5.5 | 6.9 | |
| Condenser | Type | horizontal shell & tube and can condense and receive liquid efficiently | ||||
| Water inlet temp | ℃ | ≤32 | ||||
| Water flow | m3/h | 3.7 | 4.4 | 5.5 | 7.3 | |
| Water pressure loss | Kpa | ≤30 | ||||
| Dia.of inlet and outlet water | mm | DN25 | DN25 | DN32 | DN32 | |
| Indoor unit fan | Type | low noise centrifugal fan | ||||
| Air Flow | m3/h | 1000 | 1200 | 1500 | 2000 | |
| Motor power | W | 40 | 40 | 90 | 90 | |
| Evaporator | Copper tube with copper（Al）fin | |||||
| Dimension | Indoor unit | mm | 466x440x1750 | |||
| Outdoor unit | mm | 950x500x1250 | 1200x500x1250 | |||
| Indoor unit Weight | kg | 105 | 108 | 112 | 120 | |
| Outdoor unit Weight | kg | 260 | 280 | 320 | 360 | |
| Indoor unit noise | dB(A) | ≤55 | ≤55 | ≤55 | ≤60 | |
| Outdoor unit noise | dB(A) | ≤75 | ≤75 | ≤75 | ≤75 | |
