Description:
CLD-C Marine low noise self-contained AC unit is air handling unit to treat room air directly. It is improved type of CLD-B series. The AC unit adopts special structure design and professional noise reduction measure to reduce the noise of the unit. The units are suitable for the space with special requirement for noise, and can be widely used in different kinds of vessels, passenger ships, cargo ships and offshore platforms.
1. AC unit is mainly composed of compressor, condenser, evaporator, low noise centrifugal fan, etc.
2. AC unit adopts high-class hermetic scroll refrigeration compressor
3. AC unit adopts low noise forward multi-blades centrifugal fan
4. Main control elements adopt top class bands
5. Condenser adopts HAL77-2 or BFe30-1-1 efficient heat exchange tube with high anti-corrosion. Special structure design is adopted to prevent low refrigerant supply when ship swing
6. Improve unit structure, optimize system design, and reduce AC noise
7. AC unit adopts DDC control panel, operation become more convenient
8. Design, manufacture, inspection is conducted as per“CCS”rules and relevant standard of“vessel”
9. Product with special specification can be designed, manufactured as per customer requirement
Technical data:
| Model | CLD-5C | CLD-6C | CLD-7C | CLD-8C | CLD-10C | CLD-12C | CLD-15C | CLD-20C | |
| Cooling capacity | KW | 5 | 6 | 7 | 8 | 10 | 12 | 15 | 20 |
| 10 Kcal/h | 4.3 | 5.1 | 6 | 6.8 | 8.6 | 10.3 | 12.9 | 17.2 | |
| Heating capacity | KW | 3 | 3.6 | 4.2 | 4.8 | 6 | 7.2 | 9 | 12 |
| 10 Kcal/h | 2.5 | 3 | 3.6 | 4.1 | 5.1 | 6.2 | 7.7 | 10.3 | |
| Cooling medium | R407C | ||||||||
| Heating type | electric heating tube with stainless steel fin or light tube | ||||||||
| Power supply | Main circuit | AC 380V 3φ 50Hz/ AC 440V 3φ 60Hz | |||||||
| Control circuit | AC 220V 1φ 50Hz/ AC 220V 1φ 60Hz | ||||||||
| Protection devices | Freon high pressure、freon low pressure、water stop、super heat、 lack phase、overload、safety valve | ||||||||
| Compressor | Type | Hermetic scroll | |||||||
| KW | 1.3 | 1.6 | 1.9 | 2.2 | 2.5 | 2.9 | 3.3 | 5 | |
| Condenser | Type | horizontal shell & tube and can condense and receive liquid efficiently | |||||||
| ℃ | ≤32 | ||||||||
| m3/h | 1.5 | 1.8 | 2.2 | 2.6 | 3 | 3.5 | 4.5 | 5.5 | |
| Kpa | ≤30 | ||||||||
| mm | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN32 | DN32 | |
| Evaporator | Copper tube with copper（Al）fin | ||||||||
| Fan | Type | low noise centrifugal fan | |||||||
| Fan speed | high、middle、low | ||||||||
| dB(A) | ≤45 | ≤46 | ≤48 | ≤50 | ≤51 | ≤52 | ≤55 | ≤59 | |
| Dimension | mm | 800 | 800 | 800 | 800 | 950 | 1050 | 1050 | 1350 |
| mm | 440 | 440 | 440 | 440 | 440 | 550 | 550 | 600 | |
| mm | 1650 | 1650 | 1750 | 1750 | 1750 | 1840 | 1840 | 1900 | |
| Weight | kg | 215 | 215 | 250 | 250 | 270 | 290 | 310 | 360 |

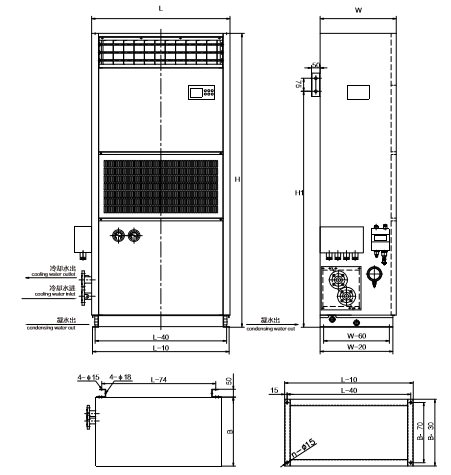

| Model | CLD-5C | CLD-6C | CLD-7C | CLD-8C | CLD-10C | CLD-12C | CLD-15C | CLD-20C |
| L | 800 | 800 | 800 | 800 | 950 | 1050 | 1050 | 1050 |
| B | 440 | 440 | 440 | 440 | 440 | 550 | 550 | 550 |
| H | 1650 | 1650 | 1750 | 1750 | 1750 | 1840 | 1840 | 1900 |
| H1 | 1315 | 1315 | 1365 | 1365 | 1365 | 1455 | 1455 | 1515 |
| n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
