CLN-70K Marine Open Type Compressed Condensing Unit
Description: CLN-70K Marine Open Type Compressed Condensing Unit Marine open type compressed condensing unit are to provide refrigerant liquid for air conditioning system dire...
Loading product images...
CLN-70K Marine Open Type Compressed Condensing Unit
PDF Datasheet
We can supply according to your requirement.
Description:
CLN-70K Marine Open Type Compressed Condensing Unit Marine open type compressed condensing unit are to provide refrigerant liquid for air conditioning system direct and device. The unit has the features of new-design, easy –operation, stable- working, safety and convenient-maintaining etc. They are widely used for all kinds of passenger ship, cargo ship, oil platform etc.
Technical Data:
| Item | CLN-70K | CLN-105K | CLN-175K | CLN-244K | CLN-348K | ||
| Cooling capacity | KW | 70 | 105 | 175 | 244 | 348 | |
| Cooling medium | R22(R134a, R404A, R407C) | ||||||
| Power supply | main circuit | AC380V 3P 50HZ/AC 440V 3P 60HZ | |||||
| control circuit | AC220V 1P 50HZ/AC 220V 1P 60HZ | ||||||
| Protection device | High pressure, low pressure,oil pressure, water stop, lack phase, overload and safety valve | ||||||
| Copressor | Type | Open type single-stage piston compressor | |||||
| Energy regulation | % | 0,33,66,100 or 0,25,50,75,100 | |||||
| Drive | V-strap | ||||||
| Motor | output power | 19 | 30 | 45 | 75 | 90 | |
| stage | 4 | ||||||
| type | heretic air cooled basic mounted | ||||||
| insullation and airproof | F, IP56 | ||||||
| Start methed | Y-△direct | ||||||
| Condensor | type | Horizontal sheel&tube | |||||
| water flow | m3/h | 22 | 35 | 48 | 65 | 100 | |
| water pressure loss | kPa | 30 | 45 | 55 | 60 | 70 | |
| weight | kg | 600 | 900 | 1300 | 1750 | 2000 | |

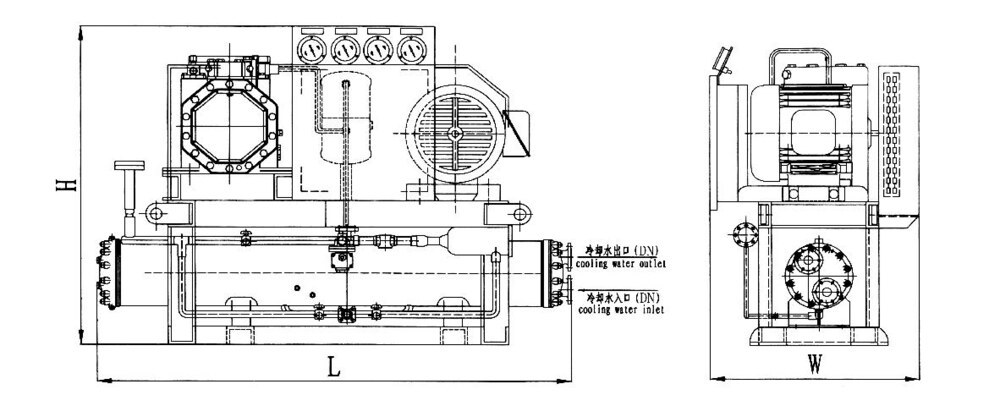

Dimension:
| Model | CLN-70K | CLN-105K | CLN-175K | CLN-244K | CLN-348K |
| L | 1540 | 2150 | 2150 | 2150 | 2740 |
| W | 860 | 860 | 990 | 1075 | 1130 |
| H | 1290 | 1290 | 2070 | 1855 | 1750 |
