CJPJ95/NC Fire Resistant Marine Power & Lighting Cable 0/6/1KV(Armoured)
CJPJ95/NC cable is galvanized steel wire braided and fire resistant marine power cable, the color of outer sheath is black. Cable Construction Condu...
CJPJ95/NC Fire Resistant Marine Power & Lighting Cable 0/6/1KV(Armoured)
PDF Datasheet
We can supply according to your requirement.
China CJPJ95/NC Fire Resistant Marine Power & Lighting Cable 0/6/1KV(Armoured):

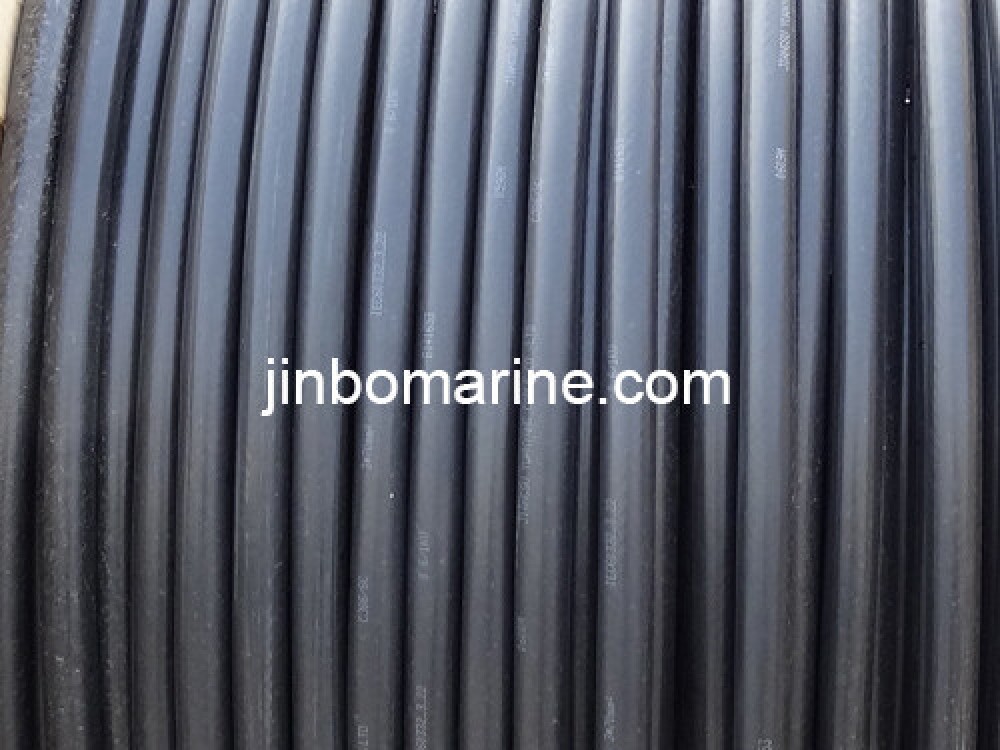

CJPJ95/NC cable is galvanized steel wire braided and fire resistant marine power cable, the color of outer sheath is black.
Cable Construction
Conductor: Tinned Copper. IEC 60228 Class 2
Mica Tape
Insulation : XLPE Insulation
Inner Covering: Halogen-free Cross Linked Thermoset Polyolefin(SHF2)
Armour :Galvanized Steel Wire Braided
Outer Sheath : Halogen-free Cross Linked Thermoset Polyolefin(SHF2)
Standards
Design : IEC 60092-350, 353
Insulation Material : IEC 60092 -351
Sheath Material : IEC 60092-359
Flammability: IEC 60331
Halogen--free: IEC60754-1, IEC60754-2
Smoke Emission: IEC 61034-1, IEC61034-2
Cores & Size
Cores: 1, 2,3,4,5,7,10,12,14,16,19,24,37
Size (sqmm): 1.5, 2.5. 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 180, 240, 300
Features
Halogen-free, Low Smoke, Fire-Retardant.
Delivery
We can delivery around the world according to Incoterms 2010.
