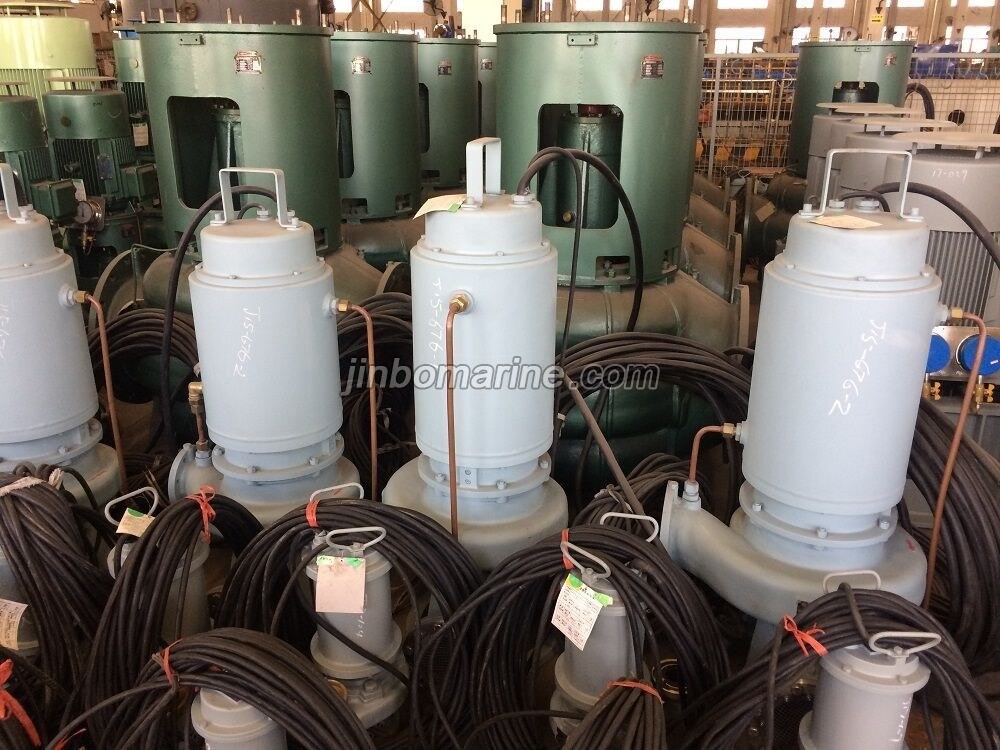

CQX (W) Series Submersible Sewage Pump
1. High Quality 2. Large displacement and high effciency3. Easy and stable operation4. Competitive price5. Fast Delivery
CQX (W) Series Submersible Sewage Pump
PDF Datasheet
We can supply according to your requirement.
CQX(W) series deep-well limber pump
1. High Quality
2. Large displacement and high effciency
3. Easy and stable operation
4. Competitive price
5. Fast Delivery
General discription
The pump is basically applicable to marine emergency survival system and removal of accumulated water in the cabin. It is widely used to let sludge, liquid waste, city life sludge, which with some solid and fiber in town planning, pumping station, and architecture and so on. Similarly, it is used to fire damper, irrigation in country.
The motor’s insulated grade is F, crust grade Is IPx8.
Power between 1.5-7.5kw, a leak measure electrode had been setting in the motor body, when the leak measure electrode incepted a signal; the controller emitted warm and protected the pump. Power above 7.5kw, a bobber switch had been setting in the motor body; a leak measure electrode had been setting in the junction box and oil room; superheat and over loading protect equipment had been setting in the motor bearing.
Performance parameter
| Tpye | Capacity | Head | efficiency | power | rpm | Throughout max. |
| Q (m3/h) | H (m) | % | P (kw) | N (r/min) | mm | |
| CQX(W)10-10-1 | 10 | 10 | 44 | 1 | 2900 | 25 |
| CQX(W)15-7-1 | 15 | 7 | 47 | 1 | 25 | |
| CQX(W)10-15-15 | 10 | 15 | 44 | 1.5 | 25 | |
| CQX(W)15-10-10 | 15 | 10 | 47 | 1.5 | 25 | |
| CQX(W)25-8-1.5 | 25 | 8 | 51 | 1.5 | 25 | |
| CQX(W)15-20-2.2 | 15 | 20 | 47 | 2.2 | 40 | |
| CQX(W)25-14-2.2 | 25 | 14 | 50 | 2.2 | 40 | |
| CQX(W)40-10-2.2 | 40 | 10 | 54 | 2.2 | 40 | |
| CQX(W)20-22-3 | 20 | 22 | 49 | 3 | 40 | |
| CQX(W)30-16-3 | 30 | 16 | 52 | 3 | 40 | |
| CQX(W)40-12-3 | 40 | 12 | 54 | 3 | 40 | |
| CQX(W)20-25-4 | 20 | 25 | 49 | 4 | 40 | |
| CQX(W)30-18-4 | 30 | 18 | 52 | 4 | 40 | |
| CQX(W)40-15-4 | 40 | 15 | 54 | 4 | 40 | |
| CQX(W)60-13-4 | 60 | 13 | 57 | 4 | 40 | |
| CQX(W)25-30-5.5 | 25 | 30 | 52 | 5.5 | 1470 | 25 |
| CQX(W)30-21-5.5 | 30 | 21 | 52 | 5.5 | 50 | |
| CQX(W)45-18-5.5 | 45 | 18 | 55 | 5.5 | 50 | |
| CQX(W)65-15-5.5 | 65 | 15 | 45 | 5.5 | 50 | |
| CQX(W)70-14-5.5 | 70 | 14 | 58 | 5.5 | 50 | |
| CQX(W)100-8-5.5 | 100 | 8 | 60 | 5.5 | 50 | |
| CQX(W)20-40-7.5 | 20 | 40 | 51 | 7.5 | 2900 | 40 |
| CQX(W)45-30-7.5 | 45 | 30 | 52 | 7.5 | 1470 | 45 |
| CQX(W)50-27-7.5 | 50 | 27 | 55 | 7.5 | 45 | |
| CQX(W)70-20-7.5 | 70 | 20 | 58 | 7.5 | 45 | |
| CQX(W)100-13-7.5 | 100 | 13 | 60 | 7.5 | 50 | |
| CQX(W)150-8-7.5 | 150 | 8 | 62 | 7.5 | 50 | |
| CQX(W)45-32-11 | 45 | 32 | 55 | 11 | 50 | |
| CQX(W)70-22-11 | 70 | 22 | 58 | 11 | 50 | |
| CQX(W)100-16-11 | 100 | 16 | 59 | 11 | 50 | |
| CQX(W)150-10-11 | 150 | 10 | 61 | 11 | 50 | |
| CQX(W)70-32-15 | 70 | 32 | 58 | 15 | 50 | |
| CQX(W)100-22-15 | 100 | 22 | 59 | 15 | 50 | |
| CQX(W)250-13-15 | 250 | 13 | 65 | 15 | 50 | |
| CQX(W)150-17-15 | 150 | 17 | 62 | 15 | 50 | |
| CQX(W)150-20-45 | 150 | 20 | 65 | 15 | 970 | 50 |
