WZW Series Marine Self-Priming Polluted Water General Service Pump
The pump widely applies to delivering polluted water, fibre, solid pareicles, slag, paperpulp and so on. Structure The pump is designed with store water room, horizontal bear...

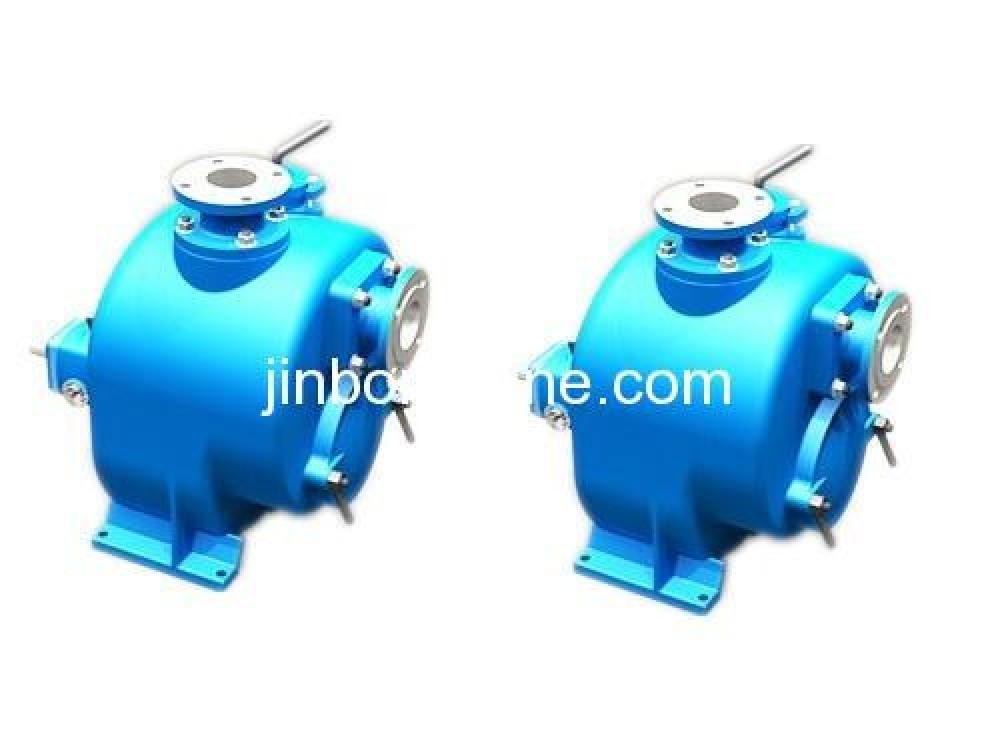

WZW Series Marine Self-Priming Polluted Water General Service Pump
We can supply according to your requirement.
China WZW Series Marine Self-Priming Polluted Water General Service Pump:
The pump widely applies to delivering polluted water, fibre, solid pareicles, slag, paperpulp and so on.
Structure
The pump is designed with store water room, horizontal bearing box. There’re two kinds of axle-seals, mechanical seal and skeleton seal. There’s an effusion entrance at the top of pump in order to operate conveniently.
Main Specification
| Type | Capacity | Head | Self-Priming Height | Speed | Motor Power | Discharge Port |
| m3/h | m | m | m | kw | mm | |
| 80WZW | 54 | 13 | 1470 | 5.5 | 80 | |
| 100WZW | 100 | 16 | 7 | 1450 | 11 | 100 |
| 150WZW | 200 | 22 | 7 | 1450 | 22 | 150 |
