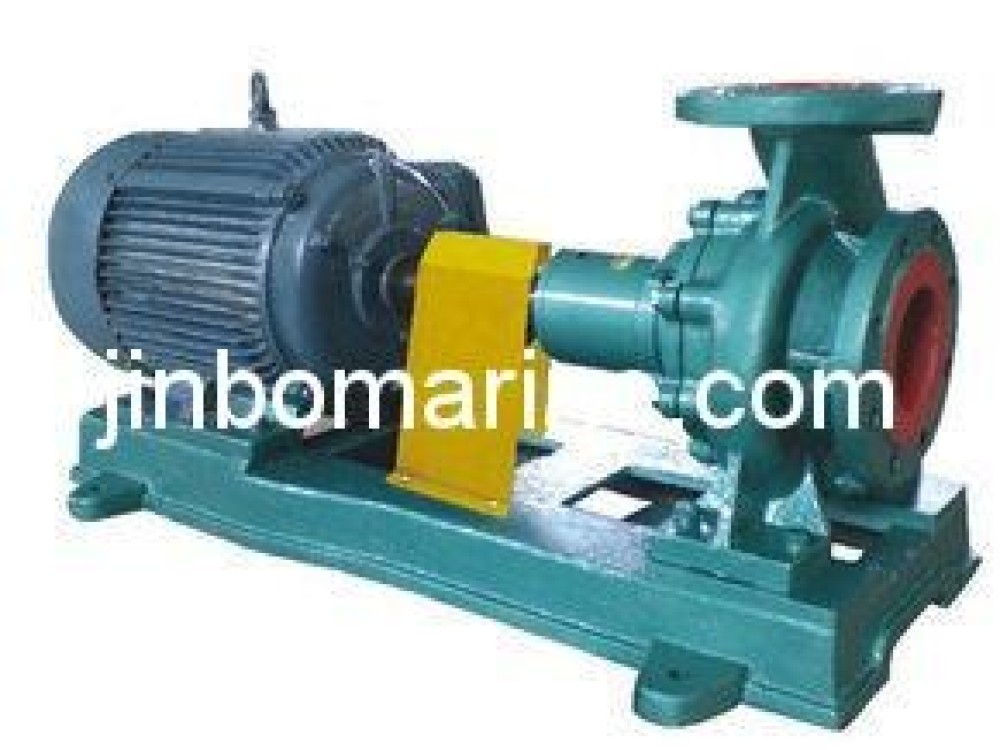

CWLD Series Marine Horizontal Centrifugal Cooling General Service Pump
CWLD Series Marine Horizontal Centrifugal Cooling Pump General description CWLD series pump is a horizontal single-suction centrifugal pump,Mechanical seal or packing seal.It c...
CWLD Series Marine Horizontal Centrifugal Cooling General Service Pump
PDF Datasheet
We can supply according to your requirement.
China CWLD Series Marine Horizontal Centrifugal Cooling General Service Pump:
CWLD Series Marine Horizontal Centrifugal Cooling Pump
General description
CWLD series pump is a horizontal single-suction centrifugal pump,Mechanical seal or packing seal.It can be used as cooling water pump, drainage pump, sanitary drains and household water pump driven by ship's motor.The transmission medium temperature should be lower than 75c.
Model explanation
32CWL-4
32:Inlet diameter 32mm
CWL:Marine horizontal centrifugal pump
D: Electronmagnetic cluth type
4:Integral of the pump specific speed divided by 10
Performance Parameter
| Type | 50hz | 60hz/3500 | 50/60hz | |||||||||
| CWL | Power/Motor | Capacity | Head | Weight | Power/Motor | Capacity | Head | Weight | Efficiency | (NPSH)r | inlet/outlet diam | |
| kw | m3/h | m | kg | kw | m3/h | m | kg | % | m | mm | ||
| 32CWLD-4 | 1.1/Y802-2H | 4 | 21 | 62 | 2.2/Y90L-2H | 5 | 30 | 72 | 53 | 4 | 32/25 | |
| 32CWLD-3 | 1.5/Y90S-2H | 4 | 30 | 60 | 2.2/Y90L-2H | 5 | 43 | 75 | 42 | 4 | 32/25 | |
| 40CWLD-5 | 1.1/Y802-2H | 8 | 21 | 50 | 2.2/Y90L-2H | 10 | 30 | 60 | 59 | 4 | 40/32 | |
| 40CWLD-4 | 2.2/Y90L-2H | 8 | 30 | 65 | 3/Y100L-2H | 10 | 43 | 77 | 50 | 4 | 40/32 | |
| 40CWLD-3 | 3/Y100L-2H | 8 | 42 | 87 | 4/Y112M-2H | 10 | 60 | 100 | 43 | 4 | 40/32 | |
| 50CWLD-6 | 1.5/Y90S-2H | 12 | 21 | 60 | 3/Y100L-2H | 14 | 30 | 75 | 69 | 4 | 50/32 | |
| 50CWLD-4.5 | 3/Y100L-2H | 12 | 30 | 82 | 4/Y112M-2H | 14 | 43 | 97 | 55 | 4 | 50/32 | |
| 50CWLD-4 | 4/Y112M-2H | 12 | 42 | 101 | 5.5/Y132S1-2H | 14 | 60 | 126 | 50 | 4 | 50/40 | |
| 50CWLD-8 | 2.2/Y90L-2H | 21 | 21 | 65 | 4/Y112M-2H | 25 | 30 | 90 | 67 | 4 | 50/40 | |
| 50CWLD-7 | 4/Y112M-2H | 21 | 30 | 95 | 5.5/Y132S1-2H | 25 | 43 | 120 | 63 | 4 | 50/40 | |
| 50CWLD-5 | 5.5/Y132S1-2H | 21 | 42 | 125 | 7.5/Y132S2-2H | 25 | 60 | 130 | 59 | 5 | 50/40 | |
| 50CWLD-3.5 | 7.5/Y132S2-2H | 21 | 60 | 134 | 15/Y160M2-2H | 25 | 86 | 192 | 55 | 5 | 50/40 | |
| 65CWLD-11 | 4/Y112M-2H | 35 | 21 | 96 | 7.5/Y132S2-2H | 43 | 30 | 126 | 72 | 4 | 65/50 | |
| 65CWLD-8 | 5.5/Y132S1-2H | 35 | 30 | 118 | 11/Y160M1-2H | 43 | 43 | 173 | 70 | 4 | 65/50 | |
| 65CWLD-6 | 7.5/Y132S2-2H | 35 | 42 | 131 | 15/Y160M2-2H | 43 | 60 | 189 | 67 | 5 | 65/50 | |
| 80CWLD-14 | 5.5/Y132S1-2H | 60 | 21 | 124 | 11/Y160M1-2H | 72 | 30 | 179 | 75 | 4 | 80/65 | |
| 80CWLD-11 | 7.5/Y132S2-2H | 60 | 30 | 132 | 15/Y160M2-2H | 72 | 43 | 190 | 75 | 4 | 80/65 | |
| 80CWLD-8 | 11/Y160M1-2H | 60 | 42 | 192 | 22/Y180M-2H | 72 | 60 | 240 | 73 | 5 | 80/65 | |
| 80CWLD-6 | 18.5/Y160L-2H | 60 | 60 | 224 | 30/Y200L1-2H | 72 | 86 | 340 | 68 | 5 | 80/65 | |
| 80CWLD-5.5 | 22/Y180M-2H | 60 | 75 | 260 | 37/200L2-2H | 72 | 108 | 325 | 71 | 3.8 | 80/65 | |
| 100CWLD-18 | 11/Y160M1-2H | 100 | 21 | 154 | 15/Y160M2-2H | 120 | 30 | 212 | 78 | 4 | 100/80 | |
| 100CWLD-14 | 15/Y160M2-2H | 100 | 30 | 213 | 22/Y180M-2H | 120 | 43 | 252 | 78 | 4 | 100/80 | |
| 100CWLD-11 | 18.5/Y160L-2H | 100 | 42 | 242 | 37/Y200L2-2H | 120 | 60 | 365 | 77 | 5 | 100/80 | |
| 100CWLD-8 | 30/Y200L1-2H | 100 | 60 | 255 | 55/Y250M-2H | 120 | 86 | 440 | 75 | 5 | 100/80 | |
| 100CWLD-6 | 37/Y200L2-2H | 100 | 85 | 350 | 75/Y280S-2H | 120 | 122 | 640 | 71 | 5 | 100/80 | |
| 150CWLD-18 | 11/Y160M1-2H | 160 | 13 | 286 | 15/Y160L-4H | 192 | 18.5 | 312 | 81 | 5 | 150/125 | |
| 200CWLD-12 | 37/Y225S-4H | 300 | 30 | 493 | 75/Y280S-4H | 360 | 43 | 526 | 81 | 5 | 200/150 | |
| 200CWLD-18 | 30/Y200L1-4H | 400 | 21 | 472 | 55/Y250M-4H | 480 | 30 | 508 | 83 | 5 | 200/150 | |
