CSD-25 25KVA Marine Transformer

CSD-25 25KVA Marine Transformer MAIN MARINETRANSFORMER 25Kva, 415V/230V, 3Ph, 50Hz, Delta-Delta, Marine Transformer, Dry,Air Natural cooling. Marine Transformer CSD Te...

Marine Transformers1 Photos ISO9001 Supplier

Loading product images...

CSD-25 25KVA Marine Transformer

Category: Marine Transformers

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

China CSD-25 25KVA Marine Transformer:

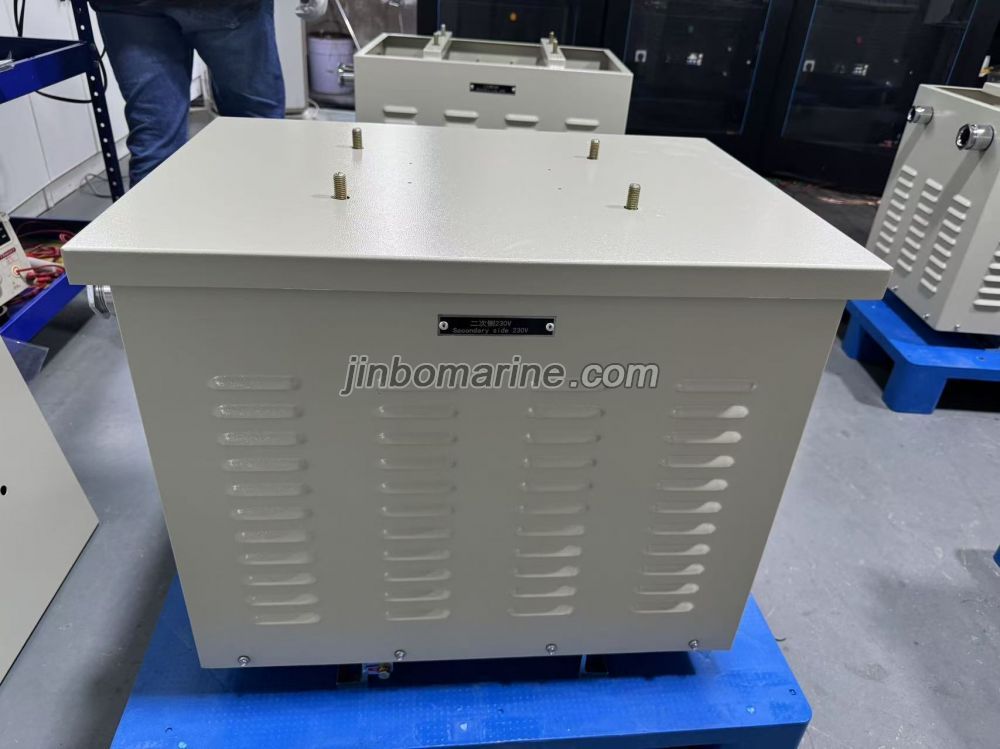

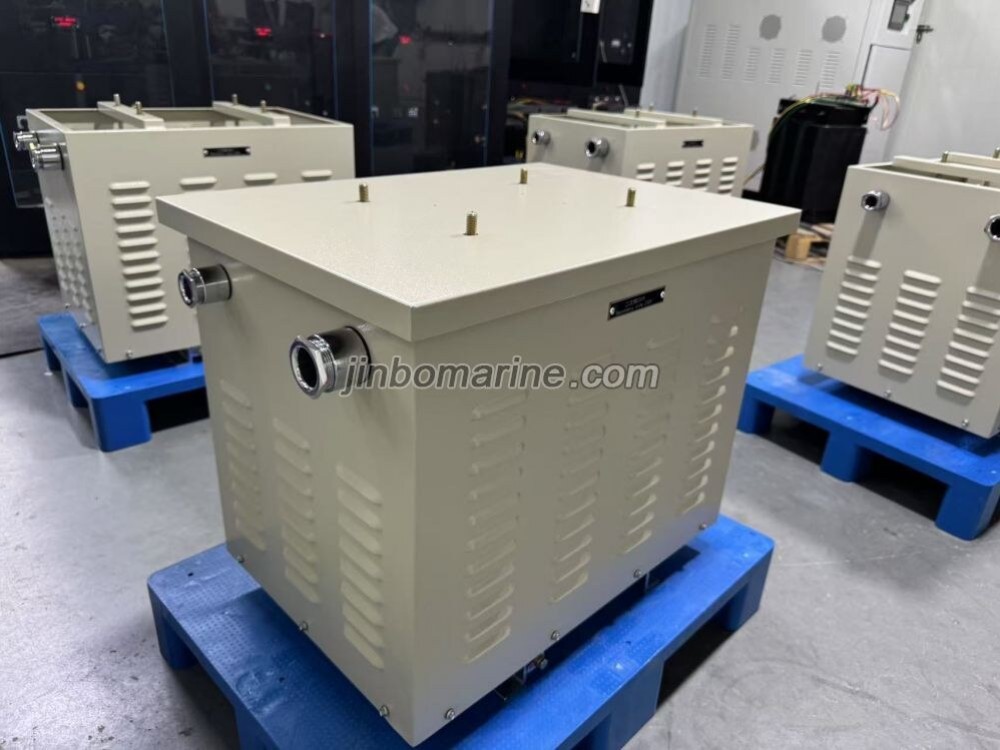

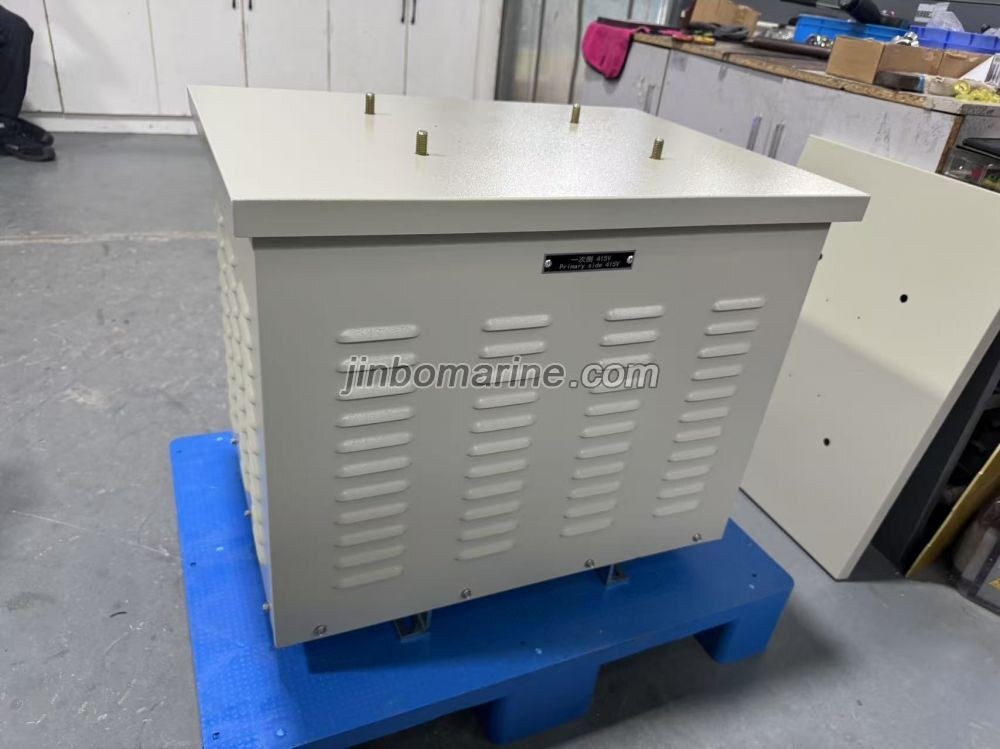

CSD-25 25KVA Marine Transformer

MAIN MARINETRANSFORMER 25Kva, 415V/230V, 3Ph, 50Hz, Delta-Delta, Marine Transformer, Dry,Air Natural cooling.

Marine Transformer CSD Technical Specifications

Spec	Capacity (kVA)	Primary rated voltage(V)		Voltage combination		Link set label	Overall dimensions			Installation dimensions
Spec	Capacity (kVA)	50Hz	60Hz	50Hz	60Hz	Link set label	A	B	C	C1	C2
CSD-5	5	400	450	400 230 115	400 230 115	Yy0 Yy11 Dd0	550	330	580	260	190
CSD-10	10						620	510	630	330	190
CSD-16	16						700	450	680	330	310
CSD-20	20						700	450	680	380	315
CSD-25	25						750	450	690	380	315
CSD-30	30						750	450	690	380	315
CSD-40	40						800	450	715	565	315
CSD-50	50						850	500	780	540	390
CSD-63	63						900	500	870	540	390
CSD-80	80						950	550	920	550	435
CSD-100	100						1050	600	970	550	490
