CSD Drip-proof Dry type Marine Three Phase Transformer

CSD Drip-proof Dry type Marine Three Phase Transformer: Structure: l Transformer are dip-proof、dry type、floor mounting type. l Insulation class B、F or H...

Marine Transformers5 Photos ISO9001 Supplier

Loading product images...

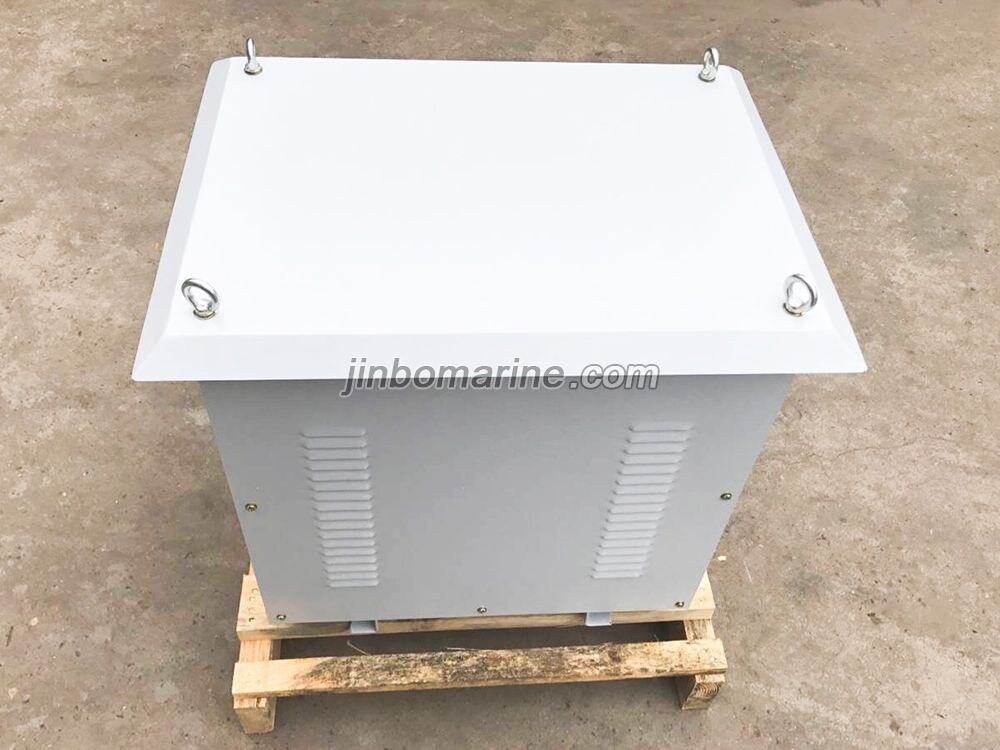

CSD Drip-proof Dry type Marine Three Phase Transformer - Image 1

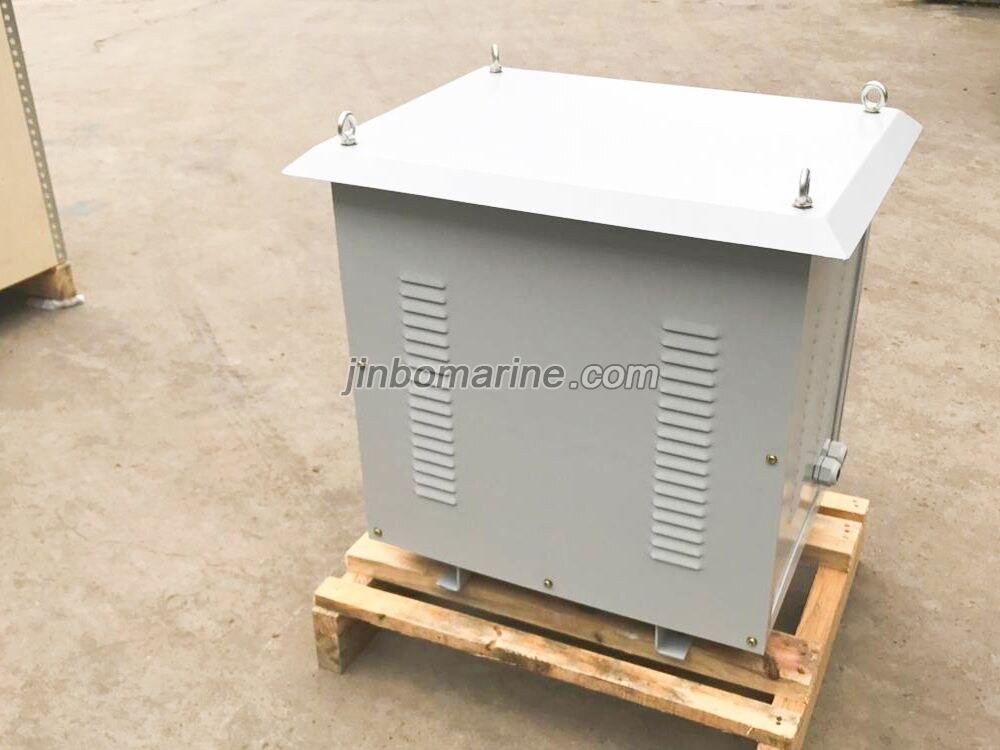

CSD Drip-proof Dry type Marine Three Phase Transformer - Image 2

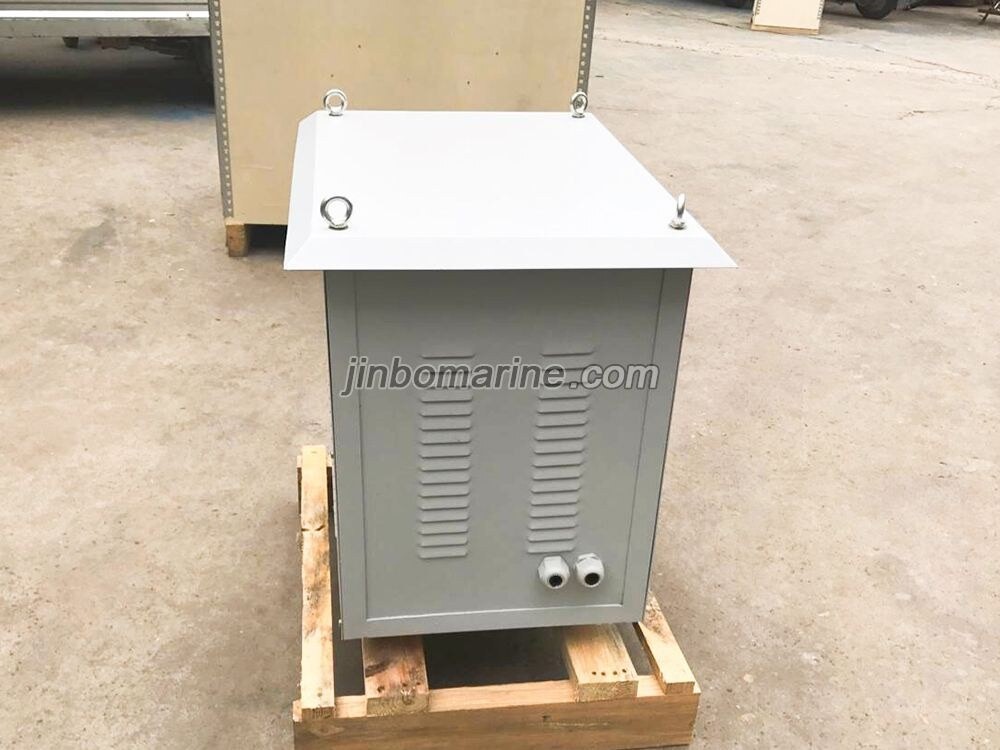

CSD Drip-proof Dry type Marine Three Phase Transformer - Image 3

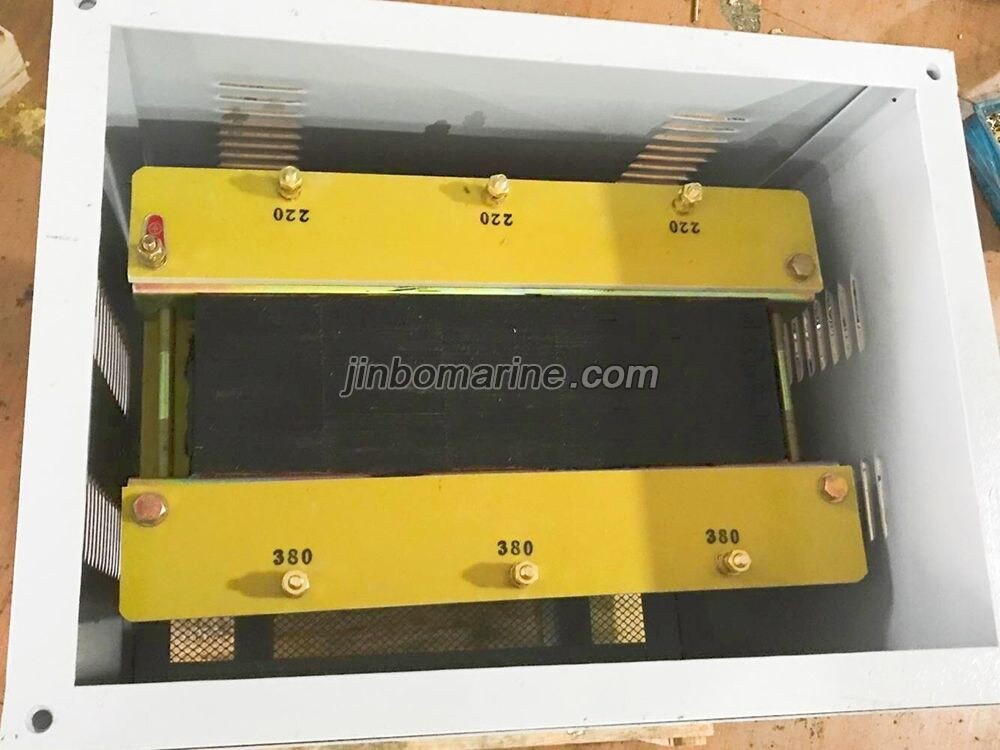

CSD Drip-proof Dry type Marine Three Phase Transformer - Image 4

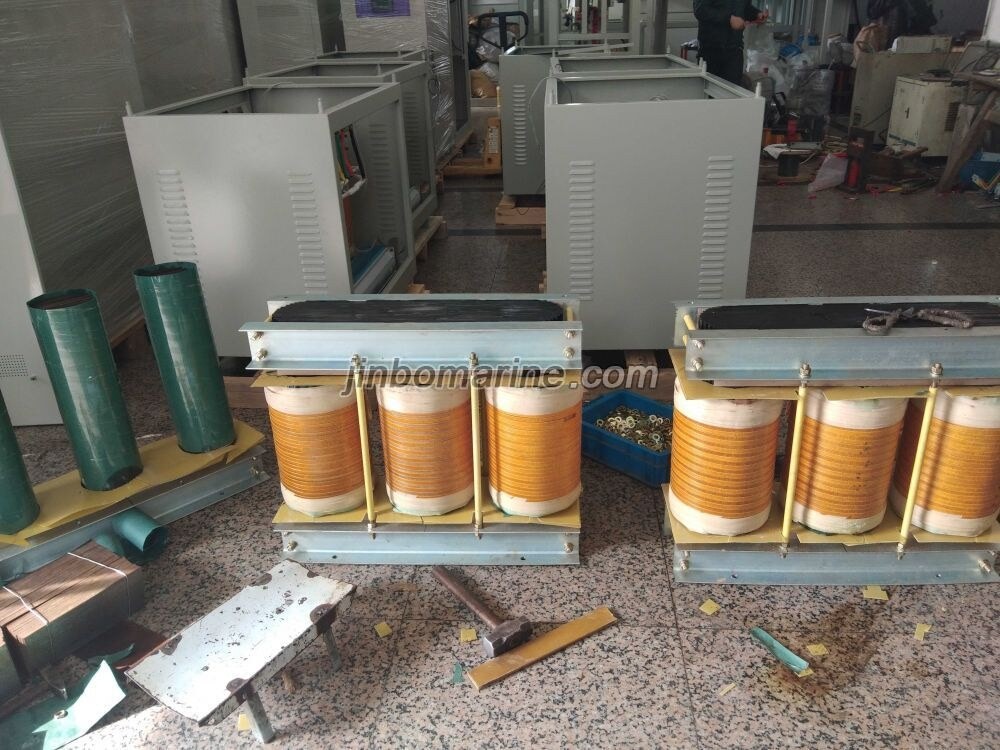

CSD Drip-proof Dry type Marine Three Phase Transformer - Image 5

CSD Drip-proof Dry type Marine Three Phase Transformer thumbnail 1

CSD Drip-proof Dry type Marine Three Phase Transformer thumbnail 2

CSD Drip-proof Dry type Marine Three Phase Transformer thumbnail 3

CSD Drip-proof Dry type Marine Three Phase Transformer

Category: Marine Transformers

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

CSD Drip-proof Dry type Marine Three Phase Transformer:

Structure:

l Transformer are dip-proof、dry type、floor mounting type.
l Insulation class B、F or H.
l Three phase transformers are produced into three types ,include one three phase transformer and three or four single phase transformers in fit together . The transformer enclosures are made of the best quality steel plate and designed for air circulation and drip-proof, rat-proof. The terminal board and tap changing boards are provided inside the enclosure. External input＆output cables can be easily connected to the terminal board through the cable gland mounted on the left and/or right side of enclosure .

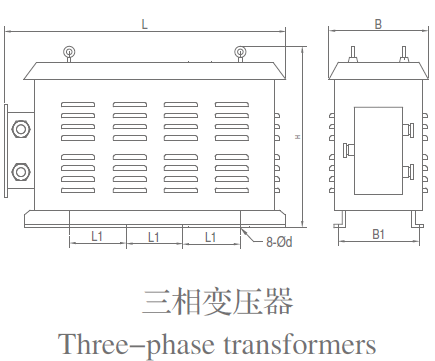

CSD	5	620	360	540	290	230	12	100
	10	670	400	570	350	260	12	150
	15	700	410	600	390	280	12	160
	20	740	410	630	400	310	14	230
	30	780	430	680	460	310	14	290
	40	840	490	725	490	360	14	310
	50	875	510	760	520	370	14	330
	60	910	530	845	530	385	18	450
	80	1000	530	880	610	400	18	520
	100	1130	570	960	650	410	22	600
