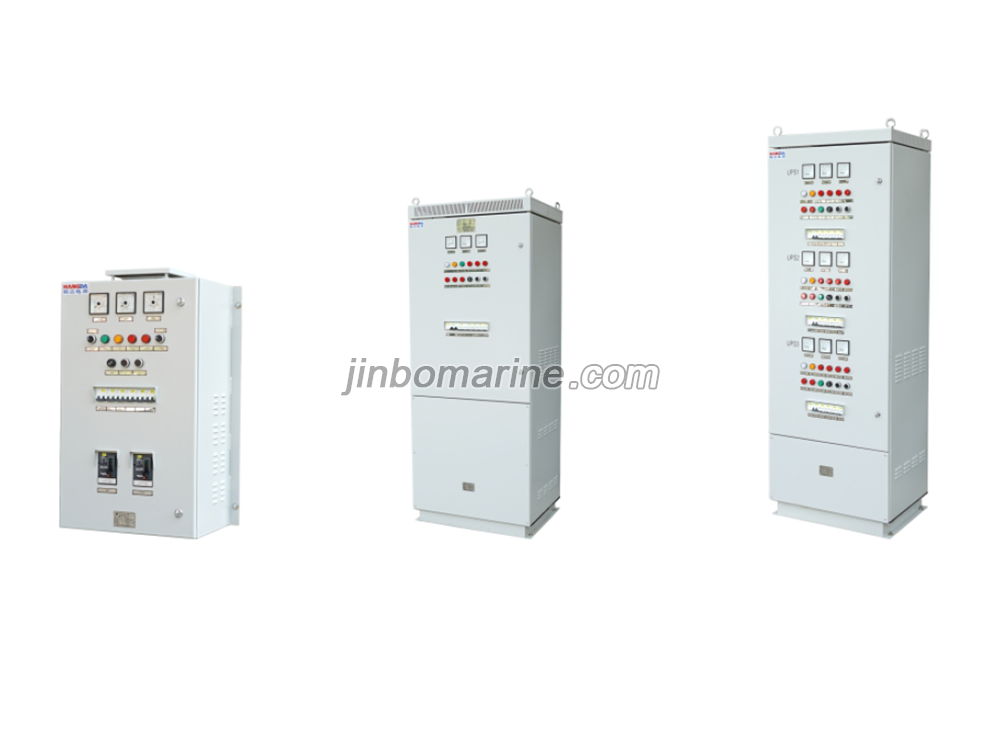

CUHD-D Marine DC Uninterruptible Power Supply
CUHD-D Marine DC uninterruptible power supply: This series of products meet the specifications and standards of domestic and international marine industry related electrical equipme...
CUHD-D Marine DC Uninterruptible Power Supply
PDF Datasheet
We can supply according to your requirement.
CUHD-D Marine DC uninterruptible power supply:
This series of products meet the specifications and standards of domestic and international marine industry related electrical equipment.
1. Comprehensive protection functions: with input undervoltage, overvoltage protection, output overvoltage protection, short circuit and overtemperature protection.
2. Multi-channel alarm passive dry contact output can monitor all states that may occur during UPS operation.
3. The built-in regulated power supply and charging power module have obtained CCS type approval, digital control, and parallel design for easy expansion.
4. Built-in independent voltage stabilization and charging module, user-friendly battery maintenance: constant current equalization charge-constant voltage equalization charge-float charge trickle charge three-phase automatic cycle to extend the service life of lead-acid batteries.
5. Front maintenance design, testing and maintenance are more convenient.
6. This series of products can provide all elements of function, size and installation.
7. All series of DC UPS power supplies have been approved by China Classification Society.
Technical data:
| Capacity (KW) | 0.5 | 1 | 1.5 | 1.8 | 2.4 | 3.6 | 4.8 | 6 | |
| Input | Rated voltage | Single-phase 220VAC / three-phase 380VAC / three-phase 440VAC | |||||||
| Rated frequency | 45~65HZ | ||||||||
| Input range | Three-phase | ||||||||
| Bypass | Conversion method | Automatic and manual switching | |||||||
| Output | Rated voltage | 24VDC (12VDC/48VDC/110VDC/220VDC can choose） | |||||||
| Voltage accuracy | ±1% | ||||||||
| Switching time | 0ms | ||||||||
| Features | Dry contact | Input under-voltage, input over-current, input over-temperature, input over-current, input short-circuit protection | |||||||
| Meter | Main power supply, battery discharge, bypass power supply, low battery, low insulation, ESD battery trip, UPS system failure, maintenance bypass, public alarm | ||||||||
| Instructions | Output voltage, output current, output insulation meter | ||||||||
| Instructions | Operation status indication, mute and test light function, sound and light alarm | ||||||||
| Charge | Charging mode | Constant current first, then constant voltage | |||||||
| Recharging current | 0.1C~0.15C(Adjust according to battery capacity setting） | ||||||||
| Charging time | ≤10 Hours | ||||||||
| Battery | Type of battery | Sealed lead-acid surface maintenance battery | |||||||
| Battery voltage | 24VDC (12VDC/48VDC/110VDC/220VDC can choose） | ||||||||
| Backup time | ≥30 Minutes（Can be customized） | ||||||||
| Structure | Box size (WxDxH)mm | 600x350x700 | 600x350x1200 | 650x450x1300 | 700x500x1300 | 700x600x1300 | 700x500x1600 | 700x600x1600 | |
| Weight (kg) | 35 | 150 | 171 | 236 | 288 | 382 | 462 | ||
| Installation method | Floor-standing | ||||||||
| Protection class | IP22/IP23/(IP44 Can be customized） | ||||||||
| Cabinet color | RAL7035(Other colors can be customized） | ||||||||
| Environmental parameters | Operating ambient temperature | ‐0℃~+50℃ | |||||||
| Operating environment humidity | 0~95%（Non-condensing） | ||||||||
| Cooling method | Forced air cooling | ||||||||
| Standards and certifications | Standard | CCS GD22-2015、IEC62040、IEC61000、IEC60068-2 | |||||||
| Certification | CCS Type approval | ||||||||
