CV-50/30 Marine Middle Pressure Water Cooling Air Compressor
Description: Type：Single-row，V- type，2nd-stage compression piston-style. High efficiency，Light weight, Small volume, Low noise and reliable Running.3Discharge capacity: 20~120 m ...
Loading product images...

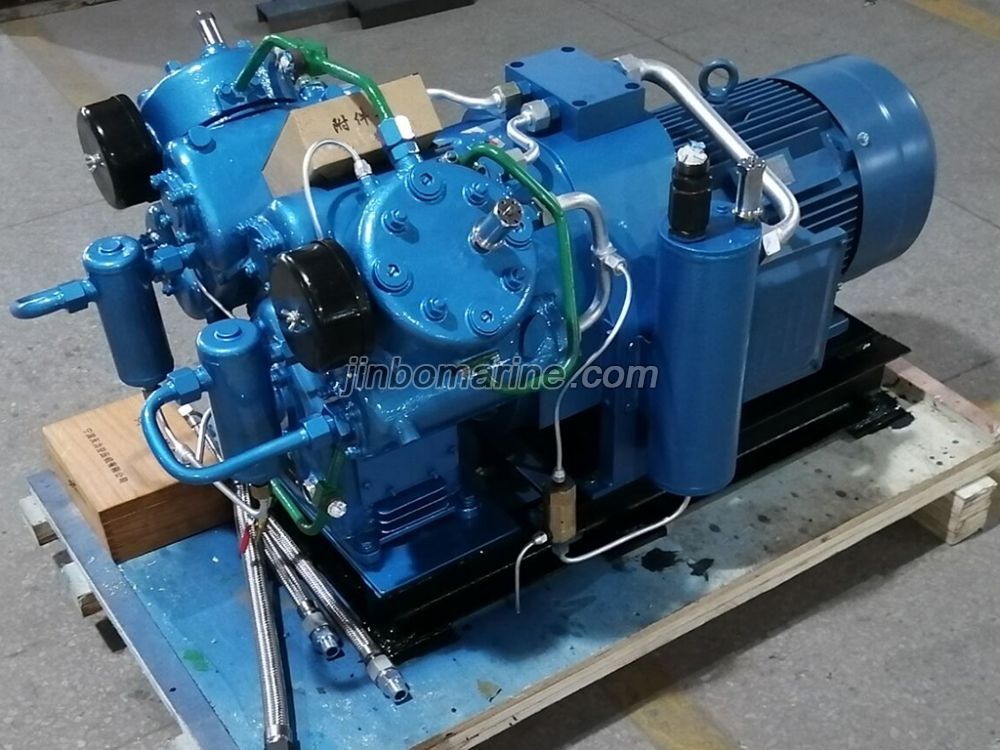

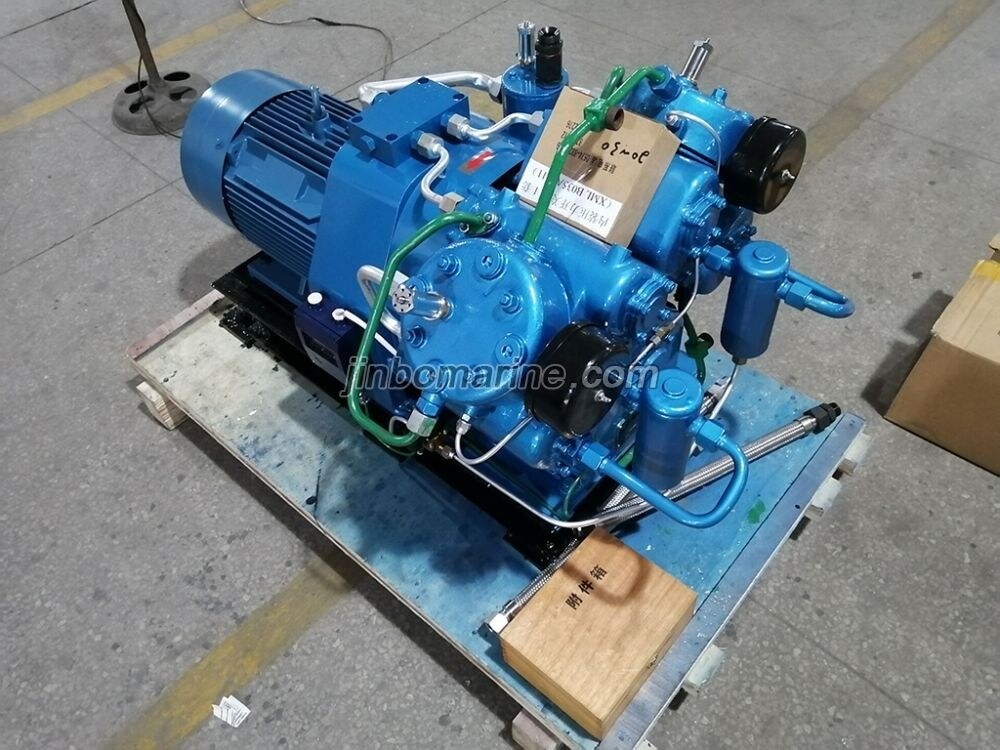

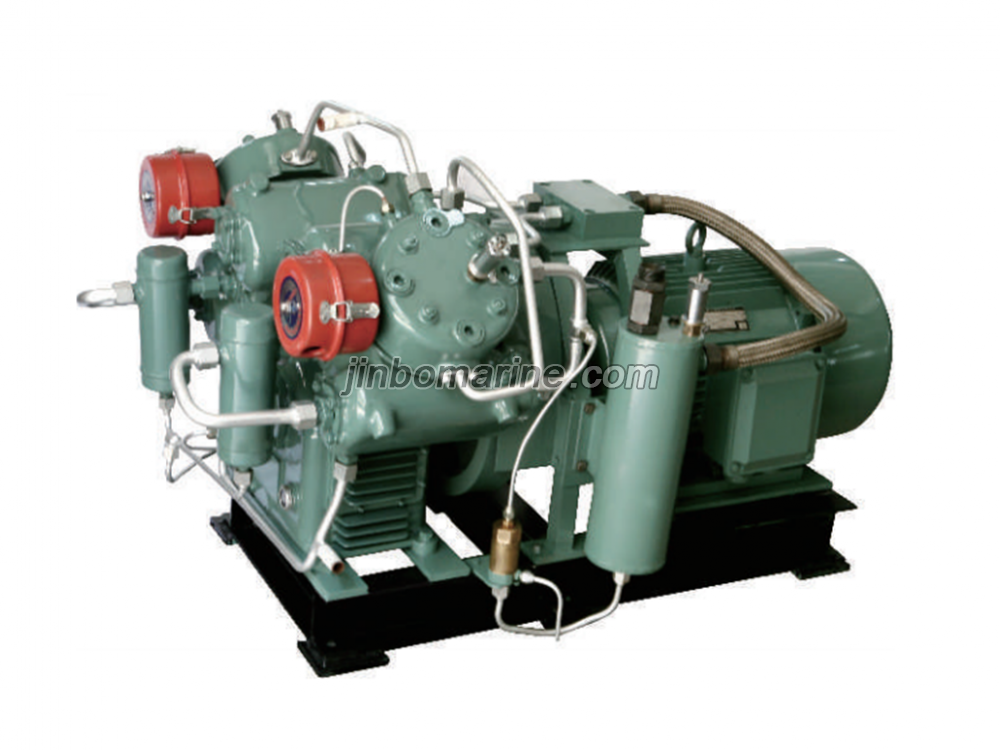

CV-50/30 Marine Middle Pressure Water Cooling Air Compressor
PDF Datasheet
We can supply according to your requirement.
Description:
Type：Single-row，V- type，2nd-stage compression piston-style.
High efficiency，Light weight, Small volume, Low noise and reliable Running.3Discharge capacity: 20~120 m /h；Discharge pressure: 3.0 MPa.
Products with manual/automatic shutdown, starting, unloading and pressure relief function.
Drive type：Coupling drive or V- belt drive.
Mainly used for starting the main engine of ship
Data Sheet:
| Model | Type | Displacement capacity | Rated pressure | Rotate speed | Motor power | Weight | Overall size | ||
| m3/h | m3/min | Mpa | r/min | KW | HP | Kg | mm | ||
| CV-50/30 | Two cylinders. | 50 | 0.83 | 3 | 970 | 11 | 15 | 340 | 1230x730x690 |
| Water-cooled | |||||||||
| Second stage compression. | |||||||||
