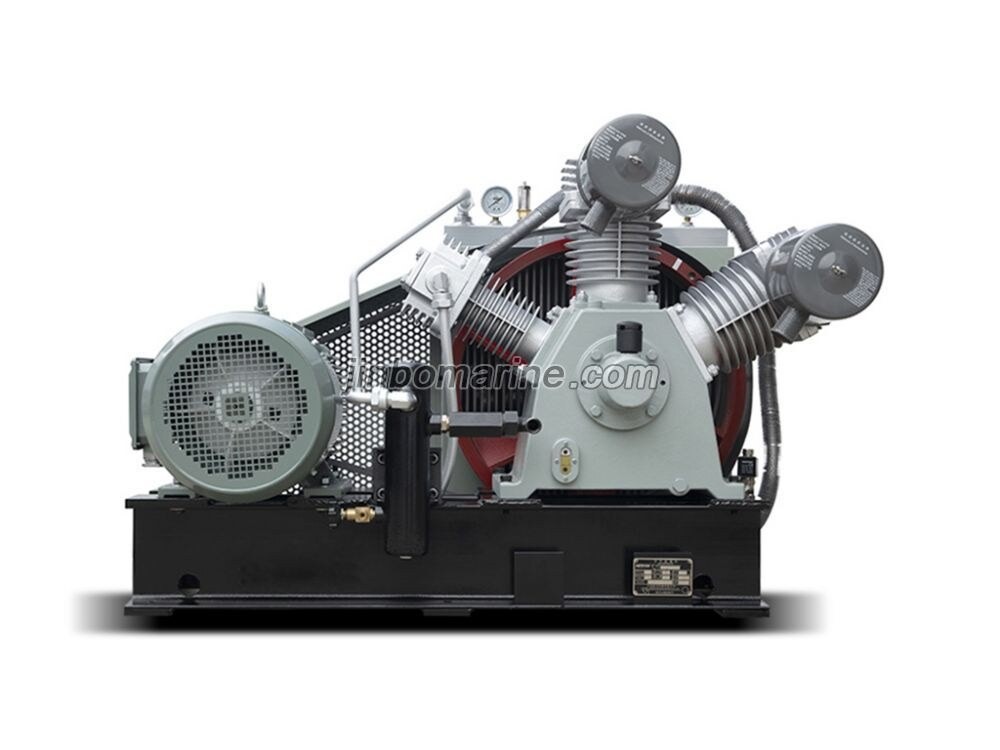

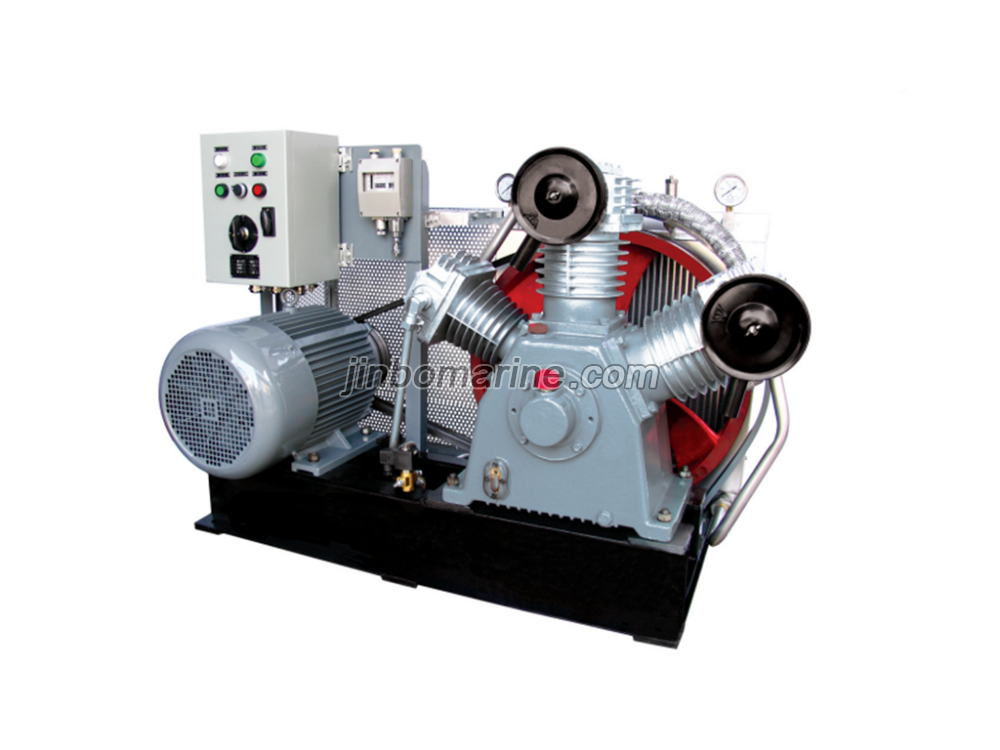

CW-50/30F Middle Pressure Air Cooling Belt Marine Air Compressor
Description: 1. Air-cooled unit, the compressor head is W-shaped distribution, small volume, low noise, 2. Automatic control, automatic start and stop of high and low pressu...
CW-50/30F Middle Pressure Air Cooling Belt Marine Air Compressor
PDF Datasheet
We can supply according to your requirement.
Description:
1. Air-cooled unit, the compressor head is W-shaped distribution, small volume, low noise,
2. Automatic control, automatic start and stop of high and low pressure, automatic discharge of sewage;
3. Provide the certification of classification society
4. Through air cooling, the cooling effect is good, and the work is stable and reliable.
5. Stable exhaust pressure, low maintenance cost and long service life.
6. Main air compressor for ships
7. The operation is simple, just read the manual to operate.
Technical data:
| No. | Model | Volume flow m3/min | Exhaust pressure MPa | Power kW | Frequency HZ | Rated speed r/min | Weight kg | L x W x H mm |
| 1 | CW-50/30F | 50 | 3 | 15 | 50/60 | 720 | 450 | 1320x750x860 |
| 2 | CW-60/30F | 60 | 3 | 15 | 50/60 | 850 | 450 | 1320x750x860 |
