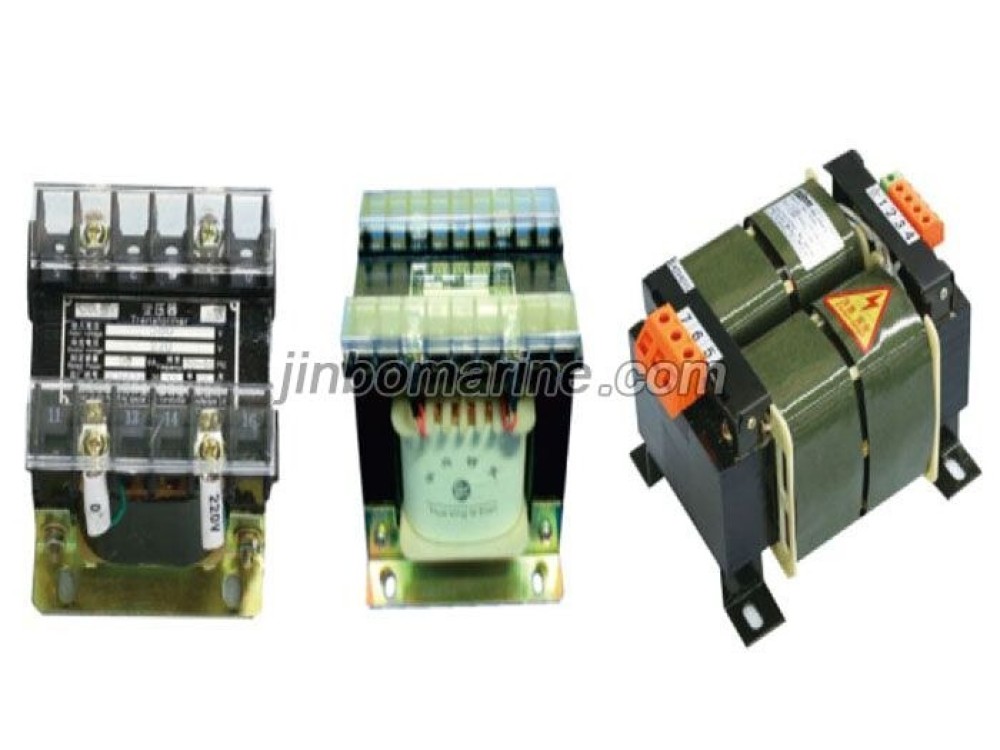

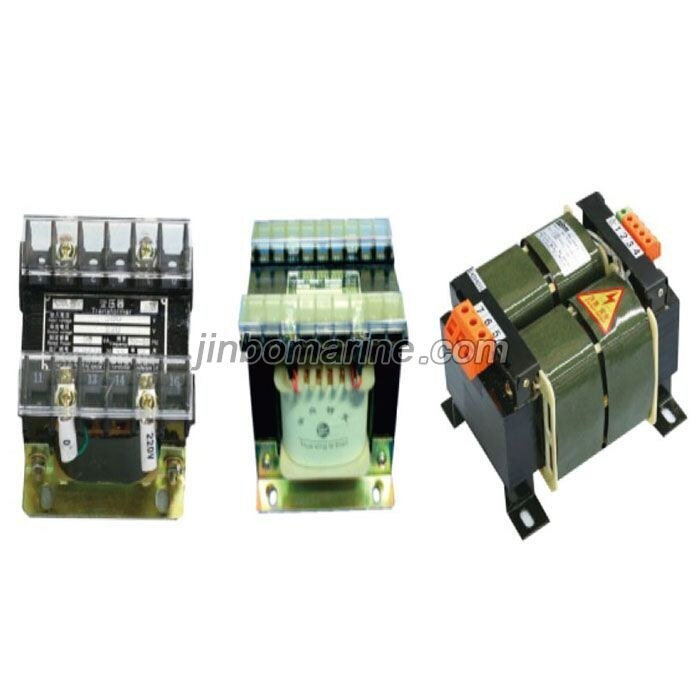

CXK Marine Transformer Used On Ship
The CXK marine transformer is suitable for lighting, control and isolation power. It adopts the shell or heart structure is compact, fastening, good heat dissipation effect, strong load capa...
Loading product images...
CXK Marine Transformer Used On Ship
PDF Datasheet
We can supply according to your requirement.
China CXK Marine Transformer Used On Ship:
The CXK marine transformer is suitable for lighting, control and isolation power. It adopts the shell or heart structure is compact, fastening, good heat dissipation effect, strong load capacity, etc. It can provide with the shell (IP22, IP23) and without shell structure.
| Type | Capacity (kVA) | No-load loss(W) | Load current(%) | No-load current(%) |
| CXK-25 | 25 | 1 | 3 | 50 |
| CXK-50 | 50 | 2 | 5 | 40 |
| CXK-100 | 100 | 3 | 10 | 40 |
| CXK-150 | 150 | 4 | 13.5 | 25 |
| CXK-200 | 200 | 5 | 15 | 22 |
| CXK-250 | 250 | 6 | 18 | 22 |
| CXK-300 | 300 | 7 | 20 | 30 |
| CXK-400 | 400 | 8 | 24 | 25 |
| CXK-500 | 500 | 16 | 25 | 18 |
| CXK-630 | 600 | 18 | 29 | 17 |
| CXK-800 | 750 | 20 | 32 | 16 |
| CXK-1000 | 1000 | 22 | 45 | 16 |
| CXK-1500 | 1500 | 31 | 48 | 15 |
| CXK-2000 | 2000 | 40 | 65 | 14 |
| CXK-2500 | 2500 | 48 | 70 | 11 |
| CXK-3000 | 3000 | 55 | 75 | 12 |
| CXK-4000 | 4000 | 65 | 95 | 11 |
| CXK-5000 | 5000 | 80 | 125 | 10 |
