Marine Equipment
CZ-20/30 Medium Pressure Air cooled Marine Air Compressor
Type: Belt driven,piston. High efficiency,Light weight, Small volume, Low noise and reliable running. Discharge capacity: 20.0m3/h. Discharge pressure: 3.0 MPa Products with manual/autom...
Loading product images...

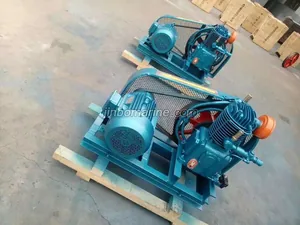

CZ-20/30 Medium Pressure Air cooled Marine Air Compressor
PDF Datasheet
We can supply according to your requirement.
China CZ-20/30 Medium Pressure Air cooled Marine Air Compressor:
Type: Belt driven,piston.
High efficiency,Light weight, Small volume, Low noise and reliable running.
Discharge capacity: 20.0m3/h.
Discharge pressure: 3.0 MPa
Products with manual/automatic shutdown, starting, unloading and pressure relief.
High efficiency,Light weight, Small volume, Low noise and reliable running.
Discharge capacity: 20.0m3/h.
Discharge pressure: 3.0 MPa
Products with manual/automatic shutdown, starting, unloading and pressure relief.
Mainly used for starting the main engine of ships.
Specification
| Model | Type | Displacement capacity | Specified Pressure | Rotating Speed | Motor Power | Weight | Overrall Size (L*W*H) | |
| m3/h | m3/min | Mpa | r/min | KW | Kg | mm | ||
| CZ-20/30 | Vertical two stage compression | 20 | 0.33 | 3.0 | 1000 | 5.5 | 210 | 970*490*710 Belt unit 1130*510*710 Water cooled unit |
| CZ-10/30 | 10 | 0.167 | 500 | 3.0 | ||||
| Applicable to less than 0.32 cubic meters of air bottle | ||||||||
